OEM Mercury MerCruiser Hydraulic Power Trim Tilt Pump Assembly 12V SAE J1171 Alpha Bravo
OEM Mercury MerCruiser hydraulic power trim and tilt pump assembly designed for select MerCruiser sterndrive applications.

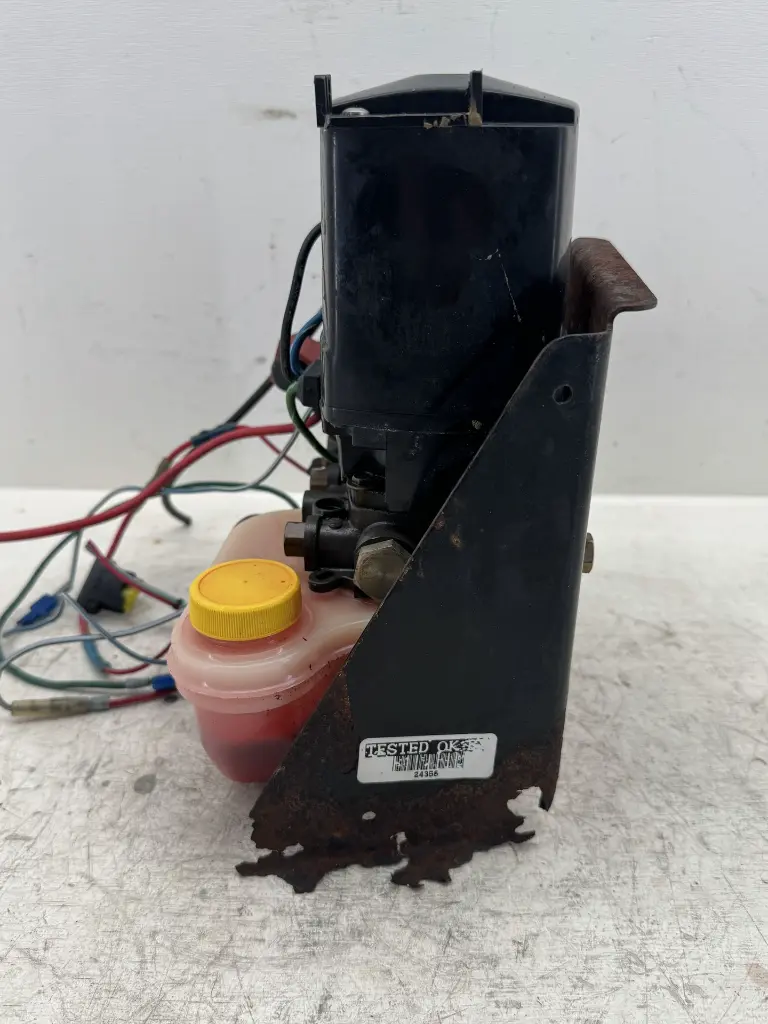

This assembly includes a 12V electric motor, hydraulic pump body, translucent fluid reservoir with yellow fill cap, electrical solenoids, steel mounting bracket, and attached wiring as pictured.
The electric motor is marked SAE J1171 Marine, indicating a marine-rated ignition-protected motor. The hydraulic trim pump supplies pressure to raise and lower the sterndrive through the boat's power trim and tilt system.
Similar pump assemblies are used across various MerCruiser Alpha and Bravo sterndrive applications. Exact compatibility depends on the hydraulic fittings, electrical connections, reservoir configuration, and mounting arrangement.
Highlights
OEM Mercury MerCruiser Trim Pump Assembly
12V Electric Hydraulic Pump
SAE J1171 Marine-Rated Motor
Power Trim and Tilt Application
Hydraulic Pump Body
Translucent Hydraulic Fluid Reservoir
Yellow Reservoir Fill Cap
Electrical Solenoids / Relays
Attached Wiring and Electrical Connections
Heavy-Gauge Power Wiring
Steel Mounting Bracket
Hydraulic Line Connection Ports
Designed for Select MerCruiser Sterndrives
Alpha / Bravo Style Applications
Used OEM Marine Take-Off
Sold Exactly as Pictured
Condition
Used condition with cosmetic wear consistent with age and previous marine use.

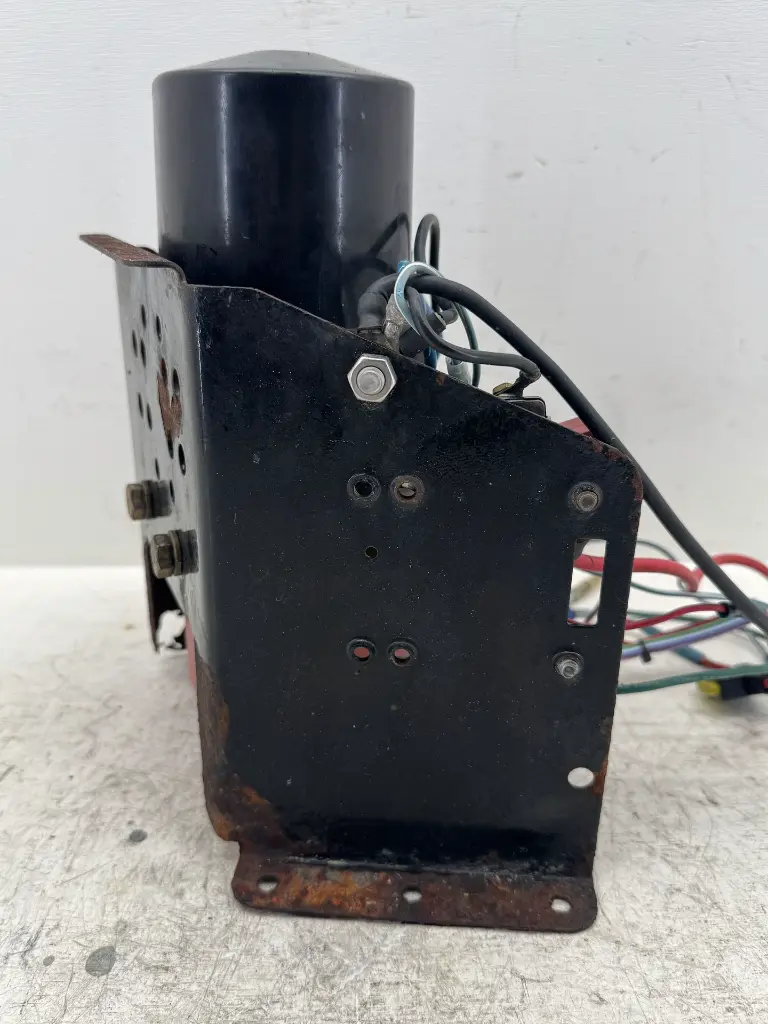

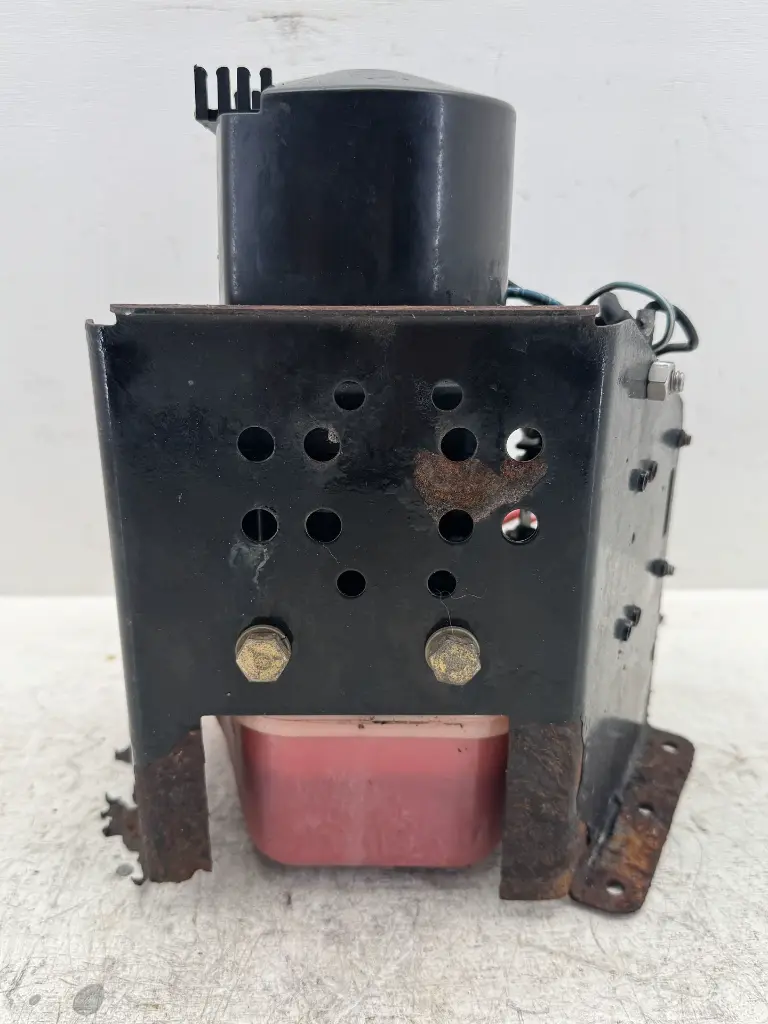

The motor housing and hydraulic pump show scratches, scuffs, staining, and surface oxidation. The steel mounting bracket has noticeable rust and corrosion, particularly along the mounting surfaces and edges.
The wiring shows previous connections, splices, and exposed wire ends that should be inspected and properly repaired before installation.
The translucent reservoir contains residual hydraulic fluid and shows discoloration from previous use.
Pump operation, hydraulic pressure, electrical solenoids, and motor functionality have not been independently tested.
Please review all photos carefully for exact condition, corrosion, wiring configuration, and included components.
Specifications
Brand: Mercury MerCruiser
Part Type: Hydraulic Power Trim & Tilt Pump Assembly
Motor Voltage: 12V DC
Motor Marking: SAE J1171 Marine
Pump Type: Electric Hydraulic Trim Pump
Application: Marine Sterndrive Power Trim / Tilt
Drive Compatibility: Select MerCruiser Alpha / Bravo Applications
Reservoir: Translucent Plastic
Reservoir Cap: Yellow
Electrical Components: Solenoids / Relays and Attached Wiring
Hydraulic Connections: Integrated Pump Fittings / Ports
Mounting: Steel Mounting Bracket
Condition: Used OEM Take-Off – Untested
Buyer is responsible for verifying pump configuration, motor voltage, hydraulic fittings, wiring connections, mounting arrangement, and sterndrive compatibility before purchase.
Dealer Sale – Sunset Marine TX LLC
SKU: 10847
