OEM Volvo Penta SX-M DP-SM Gimbal Housing Transom Shield Trim Cylinder Assembly
Genuine OEM Volvo Penta sterndrive gimbal housing / transom shield assembly with dual hydraulic trim cylinders.

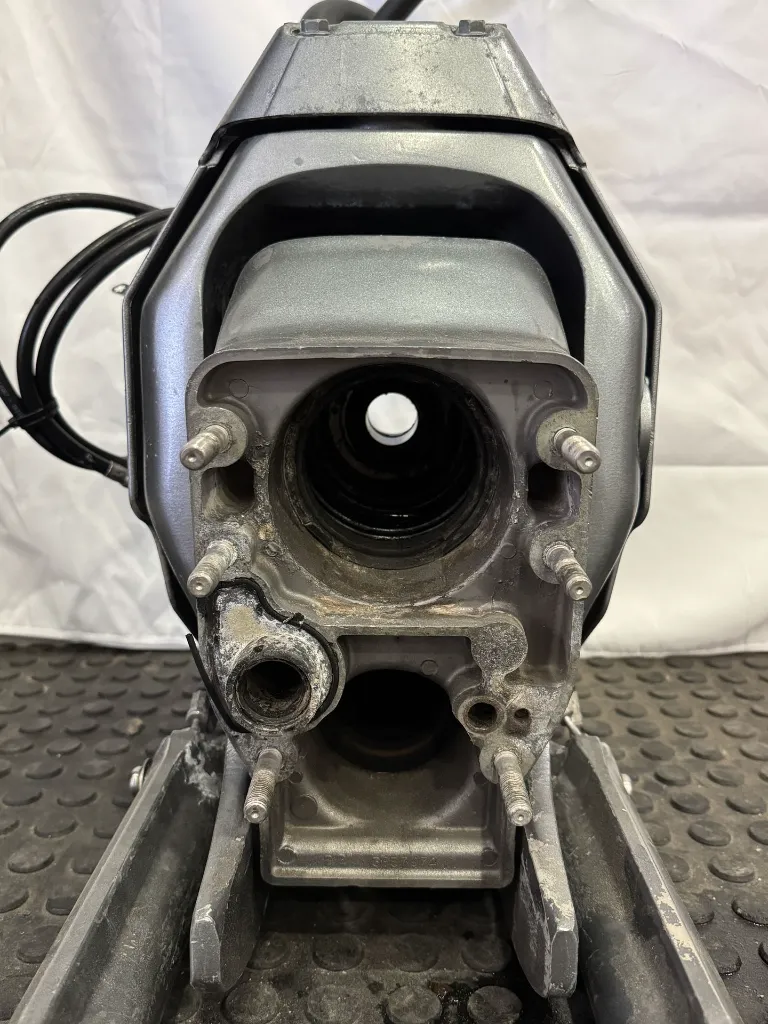

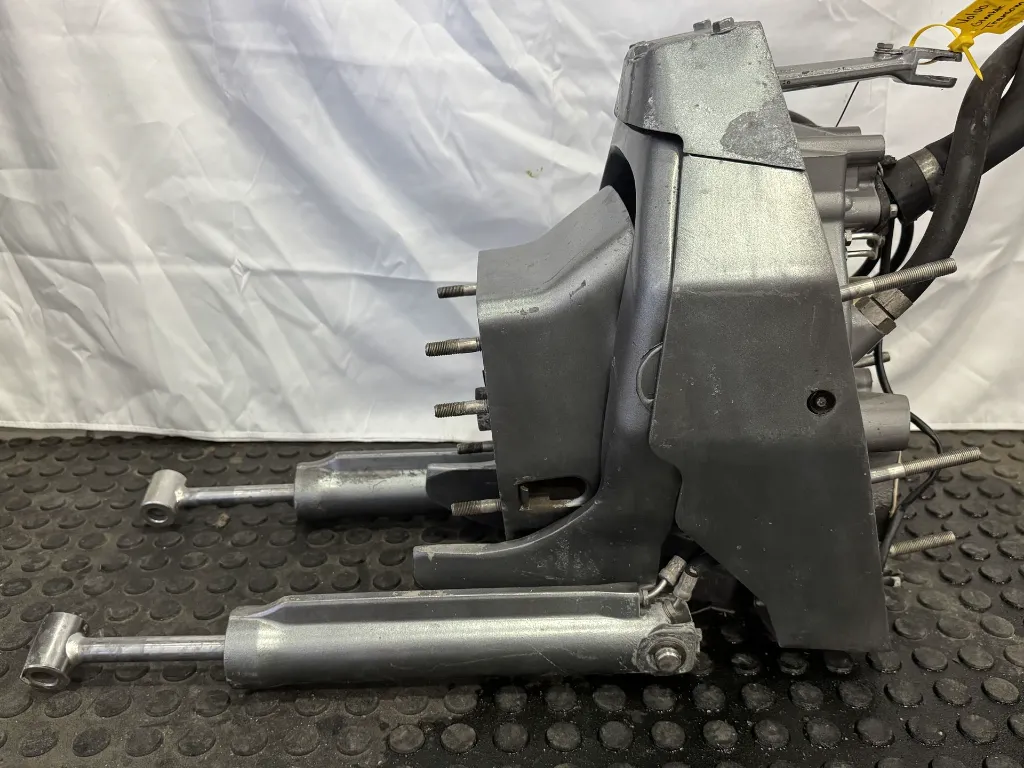

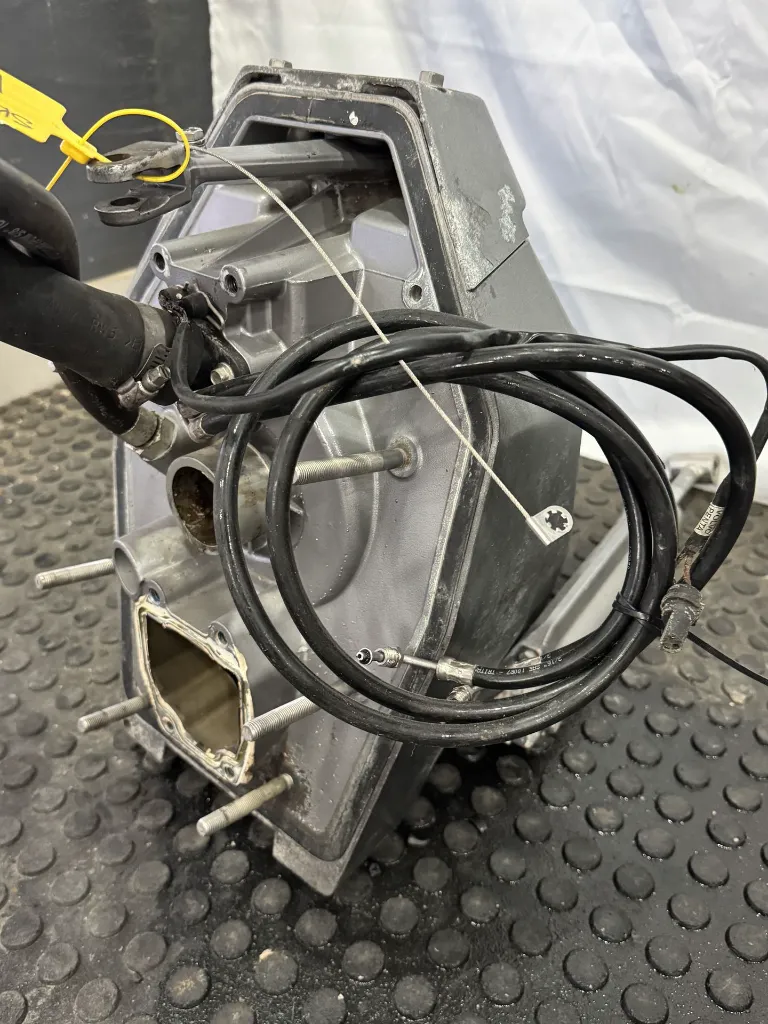

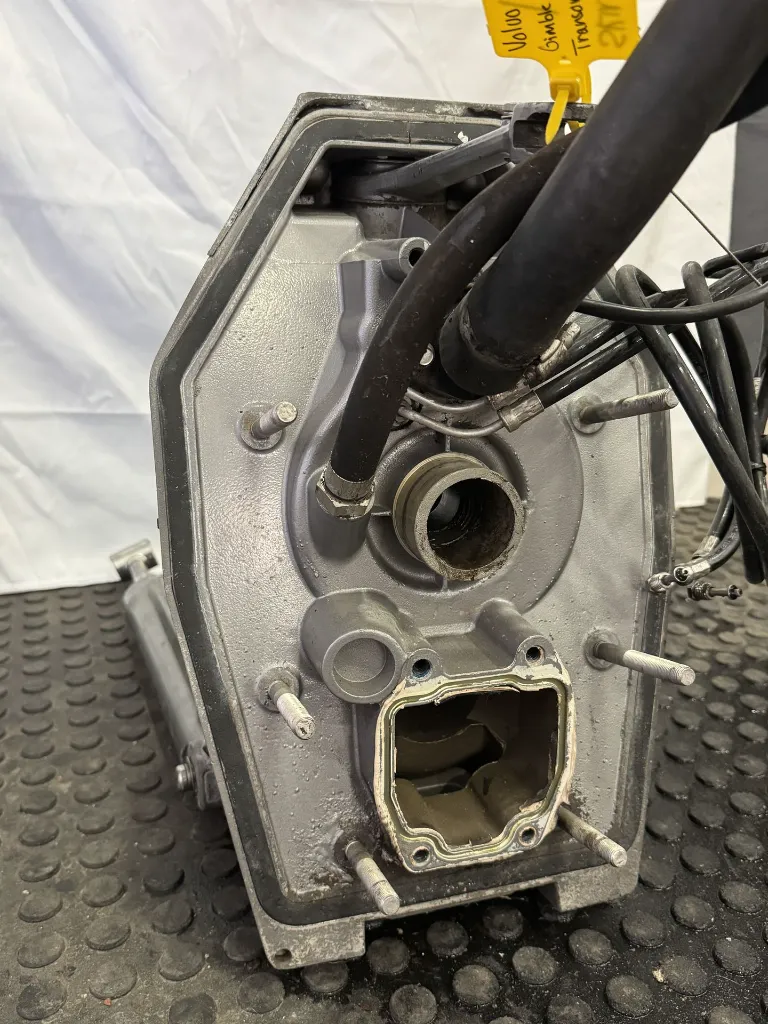

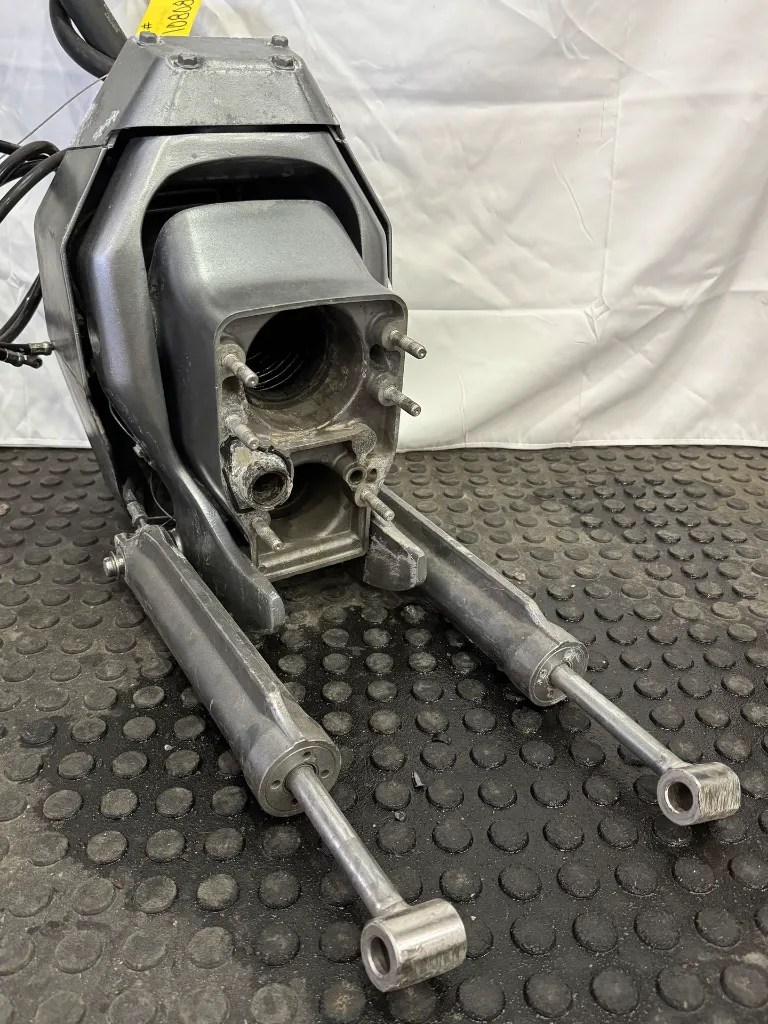

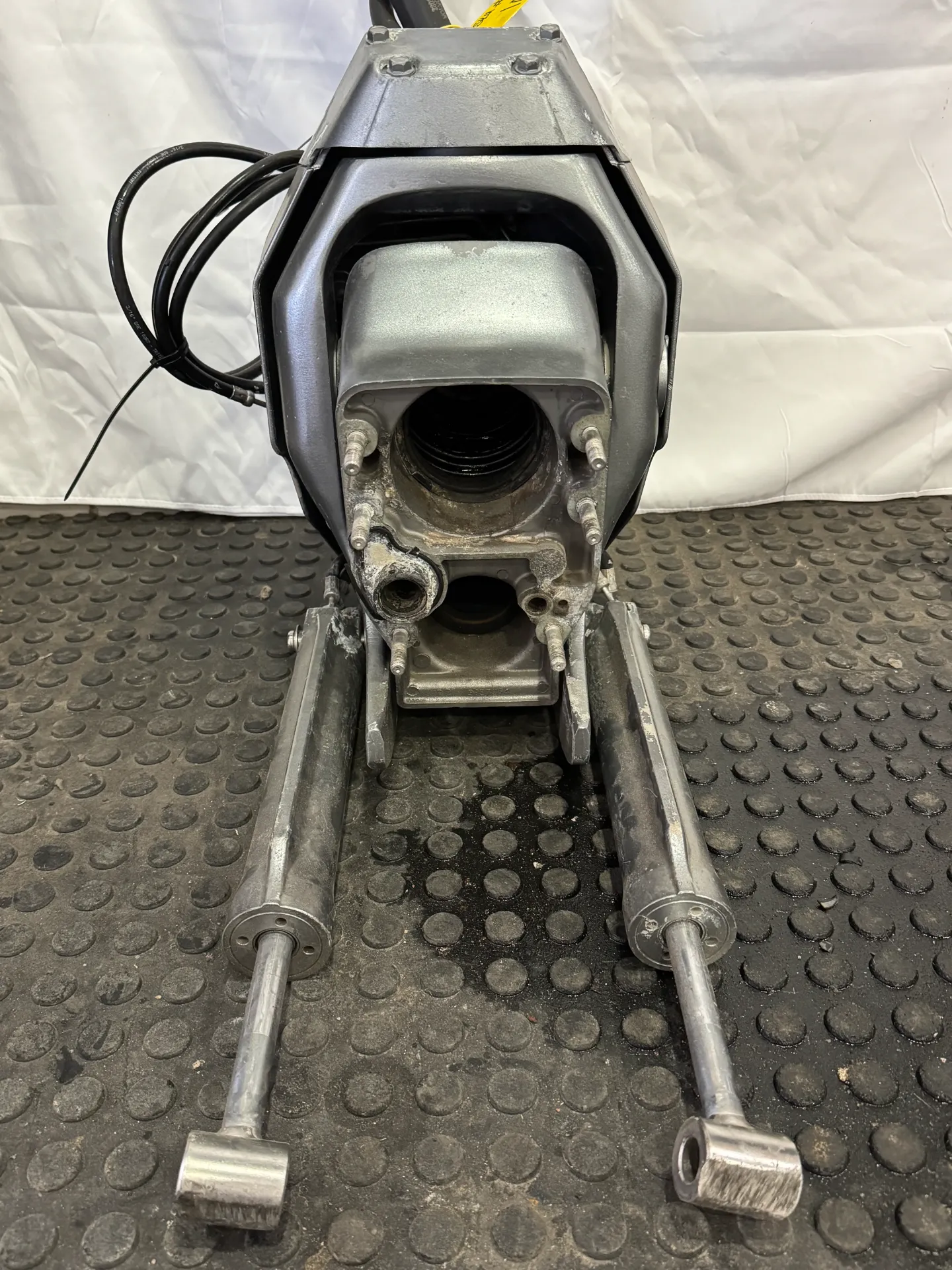

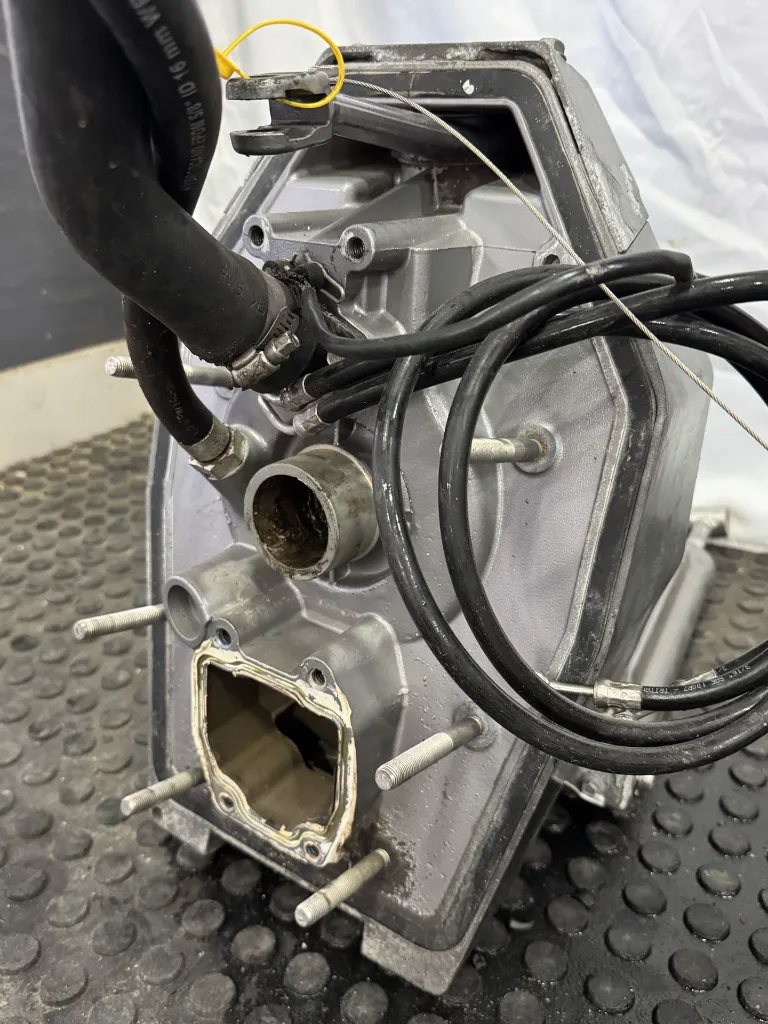

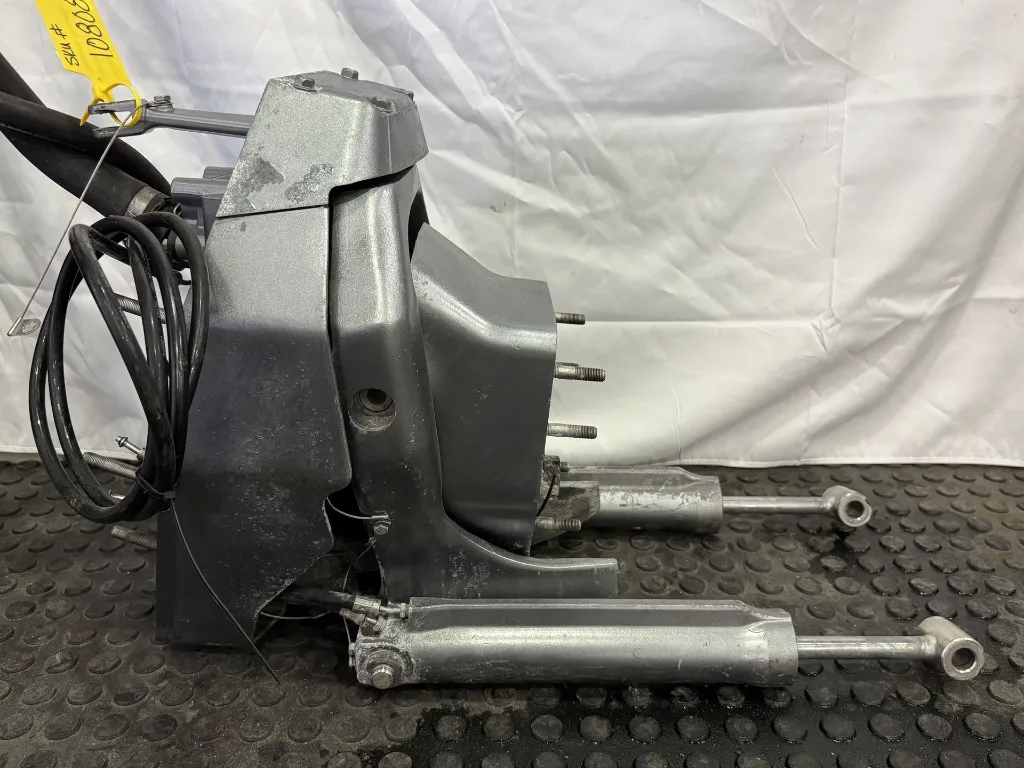

This complete take-off assembly includes the gimbal housing, transom shield, steering components, dual trim/tilt cylinders, hydraulic hoses, mounting studs, wiring/ leads, and associated hardware exactly as pictured.
Volvo Penta service documentation for the SX-M family confirms this style of transom shield uses dual trim/tilt cylinders, hydraulic lines, gimbal housing, steering components, and related transom hardware.
Highlights
- Genuine OEM Volvo Penta
- Sterndrive Gimbal Housing / Transom Shield
- Dual Hydraulic Trim / Tilt Cylinders
- Hydraulic Hoses Included
- Steering Components Included
- Mounting Studs
- Wiring / Leads as Shown
- Factory Gray Volvo Penta Finish
- Complete Take-Off Assembly
- Sold Exactly as Pictured
Condition
Good overall used OEM condition with normal wear from previous marine service.

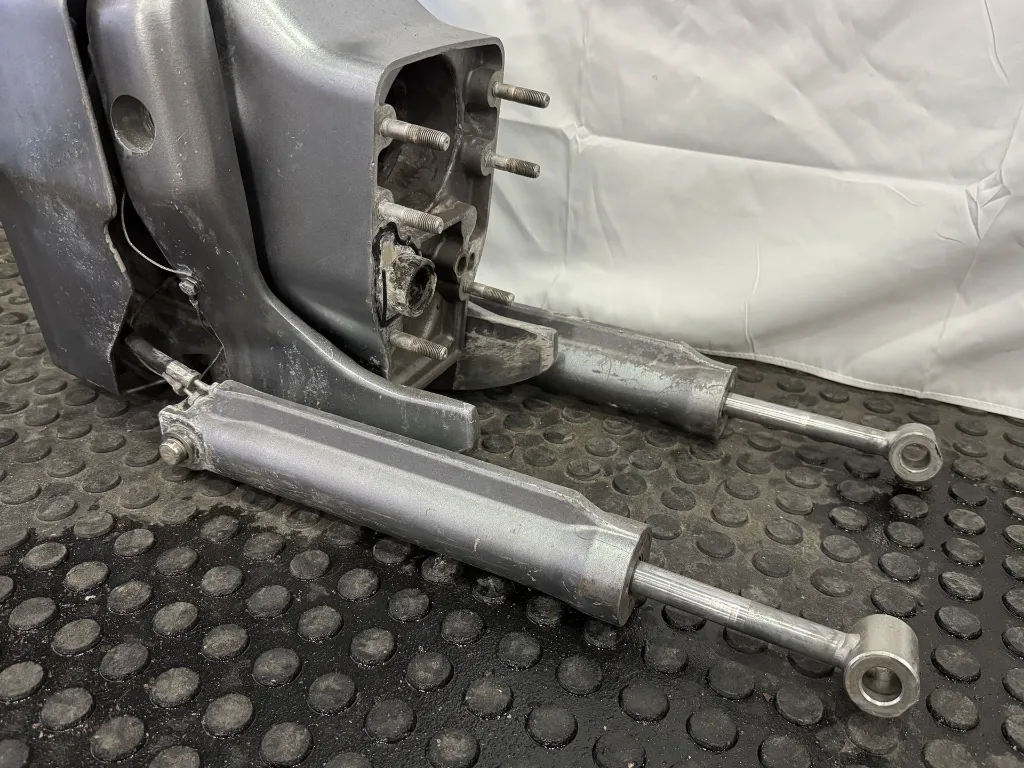

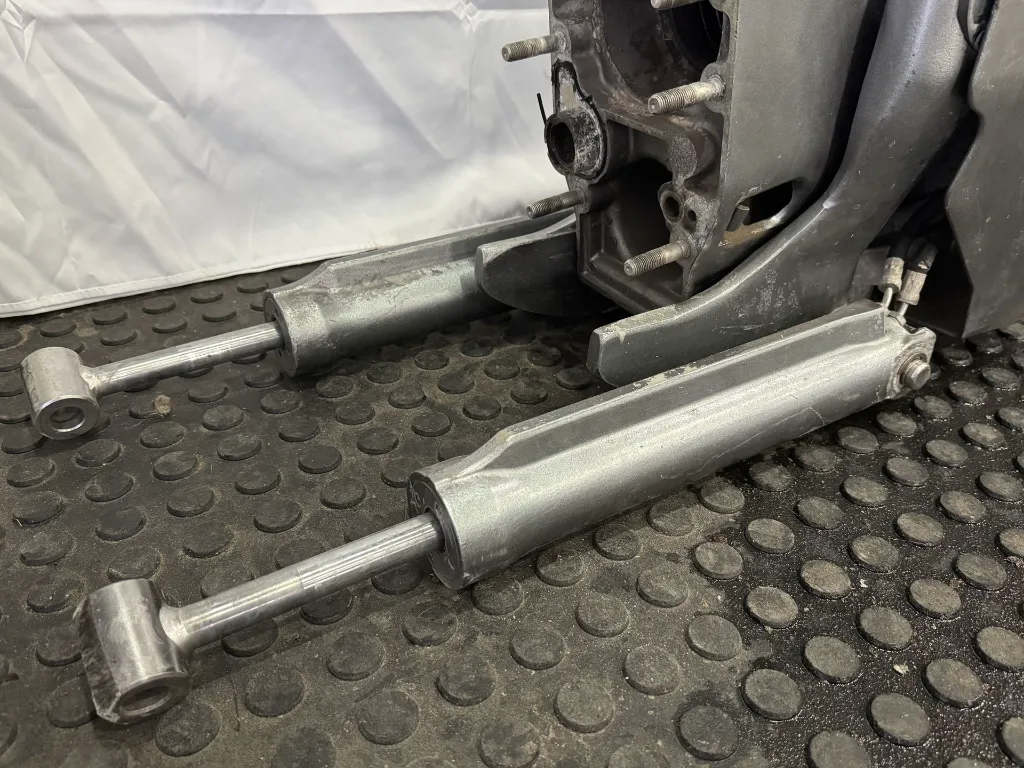

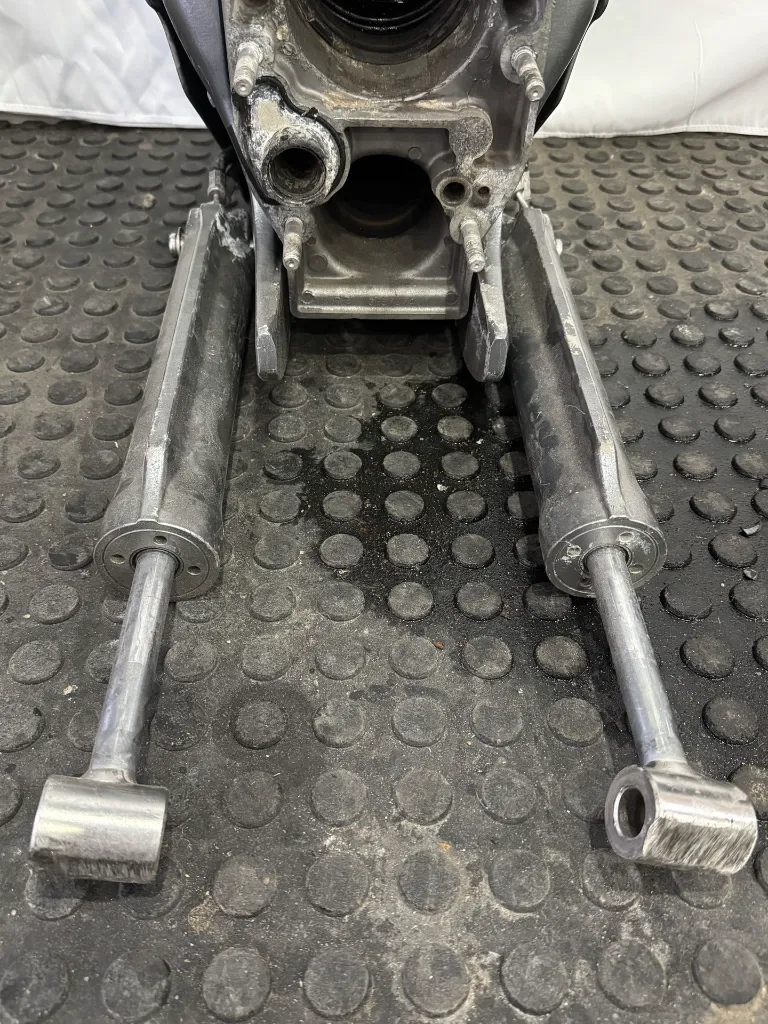

The assembly shows finish wear, scratches, staining, oxidation, surface corrosion, and marine residue. The exposed trim cylinder rods show visible cosmetic wear but appear intact in the supplied photos.
No obvious major cracks or significant structural damage are visible in the photos.
As with any used transom assembly, the gimbal bearing, seals, bellows, bushings, hydraulic lines, trim cylinders, and other service components should be inspected and serviced or replaced as needed before installation.
Specifications
Manufacturer: Volvo Penta
Part Type: Gimbal Housing / Transom Shield Assembly
Drive Family: SX / DP-S Style
Trim System: Dual Hydraulic Cylinders
Condition: Used OEM
Compatibility
This assembly appears consistent with the Volvo Penta SX-M / DP-SM family of transom shield systems. Volvo Penta's service literature covers SX-M and DP-SM variants using this general transom shield and trim-cylinder arrangement.
However, the exact Volvo Penta casting or assembly part number is not visible, so compatibility with a specific model or year cannot be guaranteed.
Buyer should compare the mounting pattern, housing configuration, steering setup, hydraulic connections, trim cylinder arrangement, dimensions, and existing drive/transom assembly before purchasing.
Dealer Sale – Sunset Marine TX LLC
SKU: 10808
