OEM Volvo Penta SX DP-S Transom Shield Gimbal Housing Assembly w/ Trim Cylinders
Genuine OEM Volvo Penta sterndrive transom shield / gimbal housing assembly for SX / DP-S style sterndrive applications.

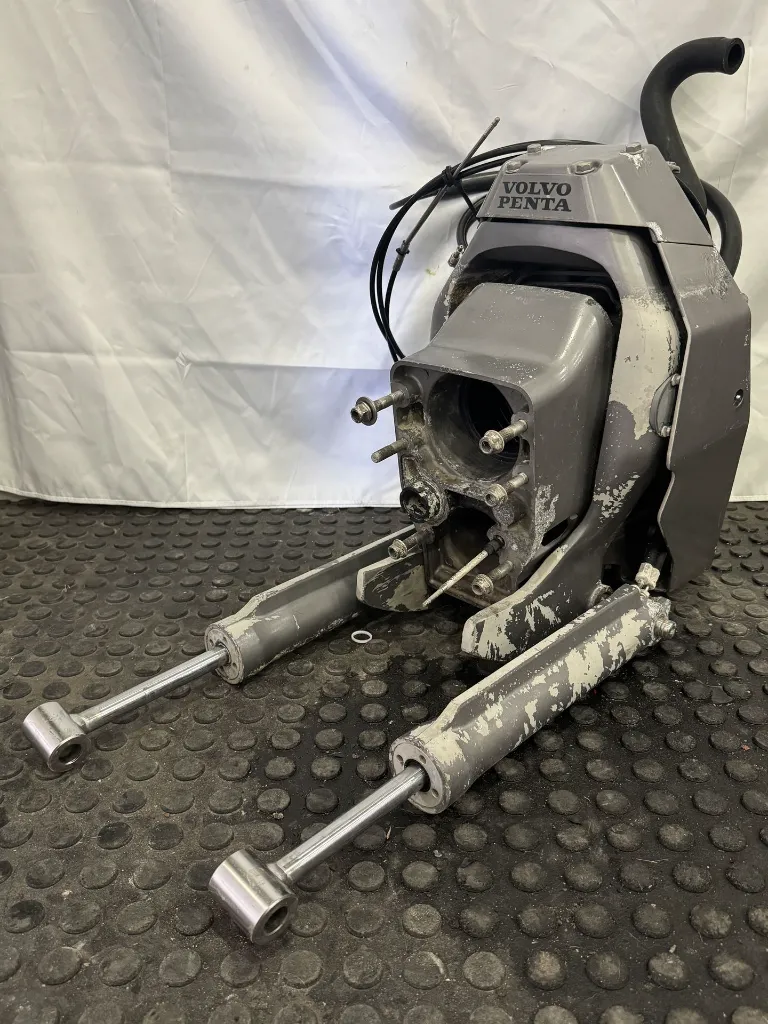

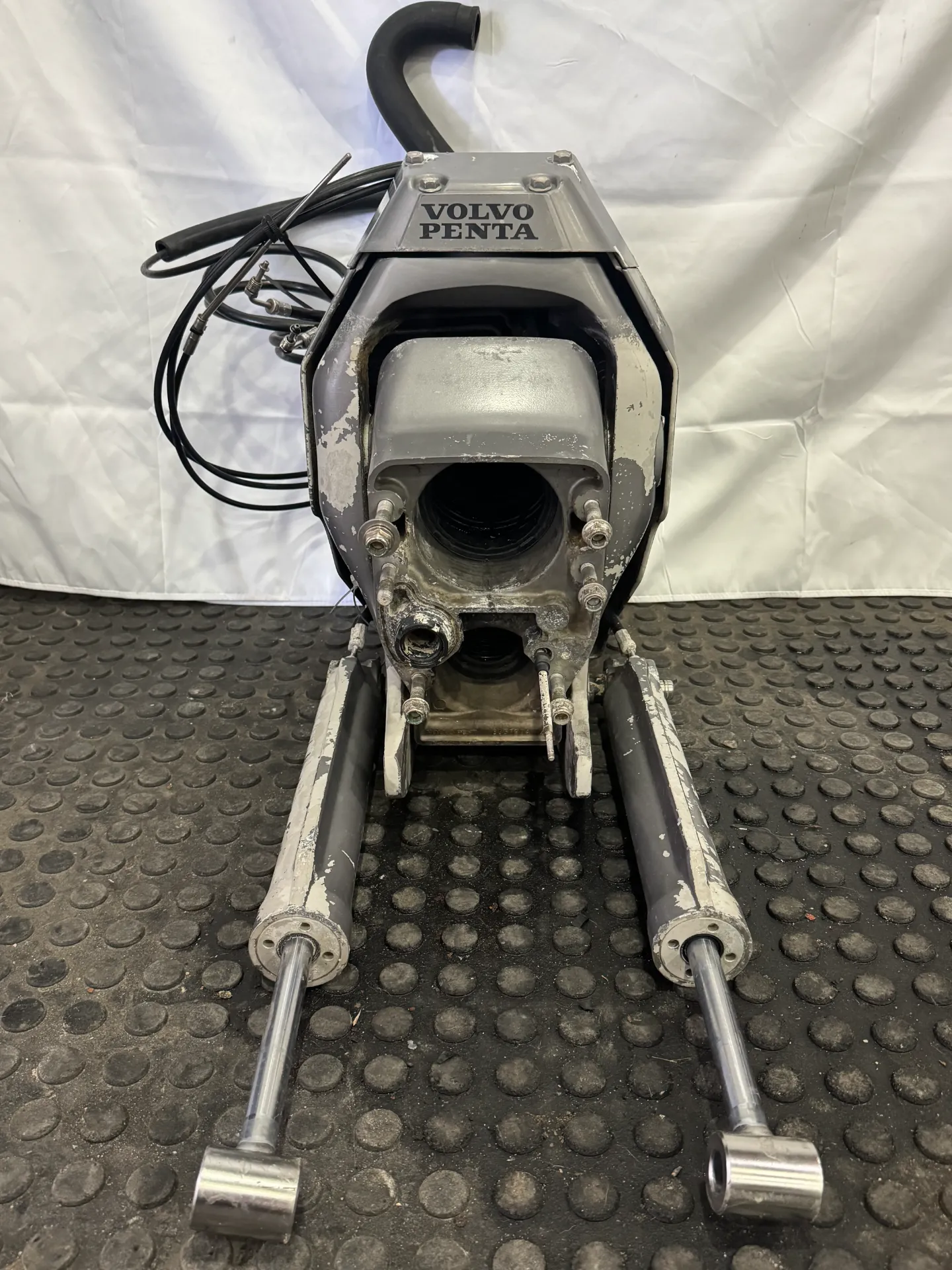

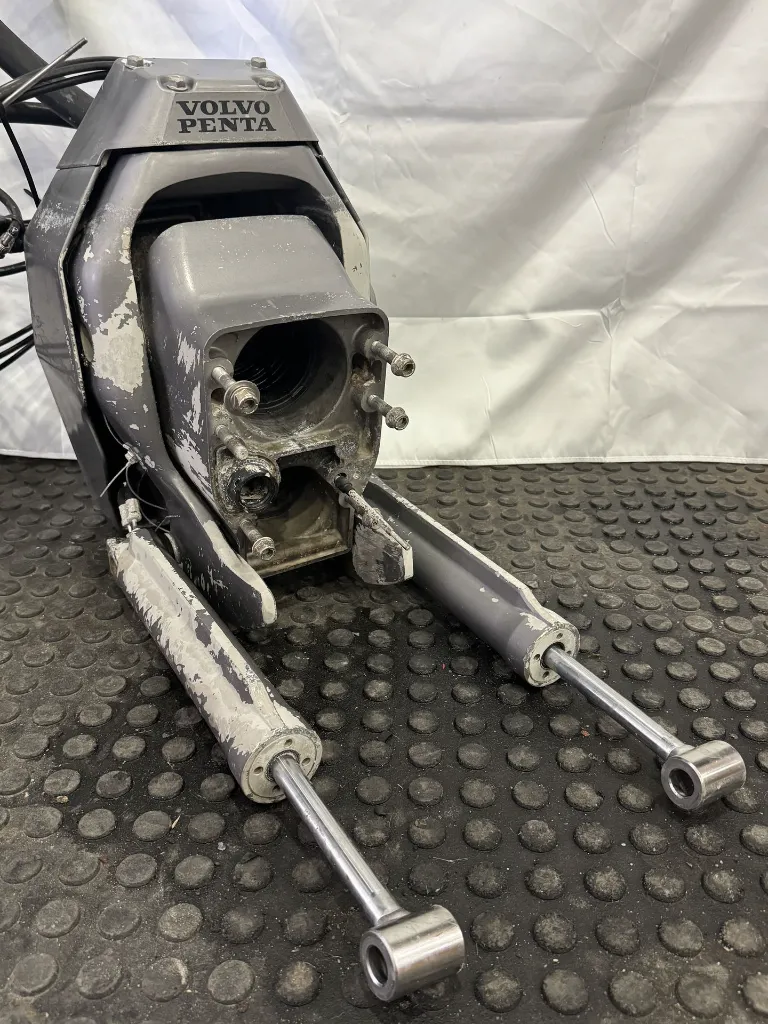

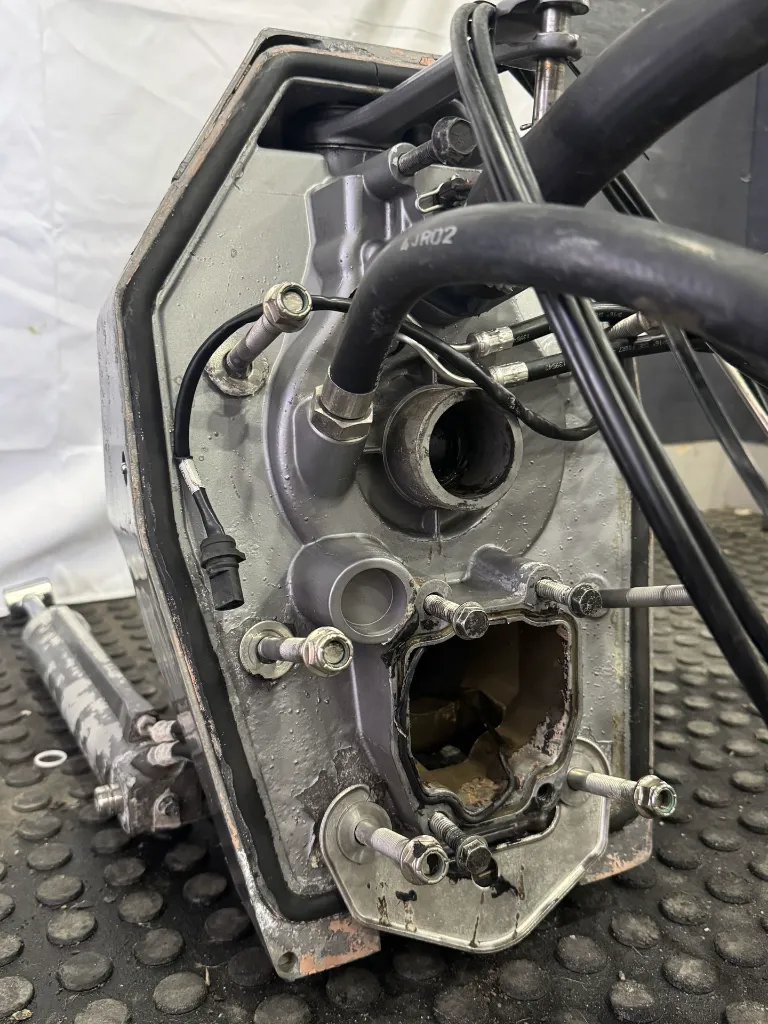

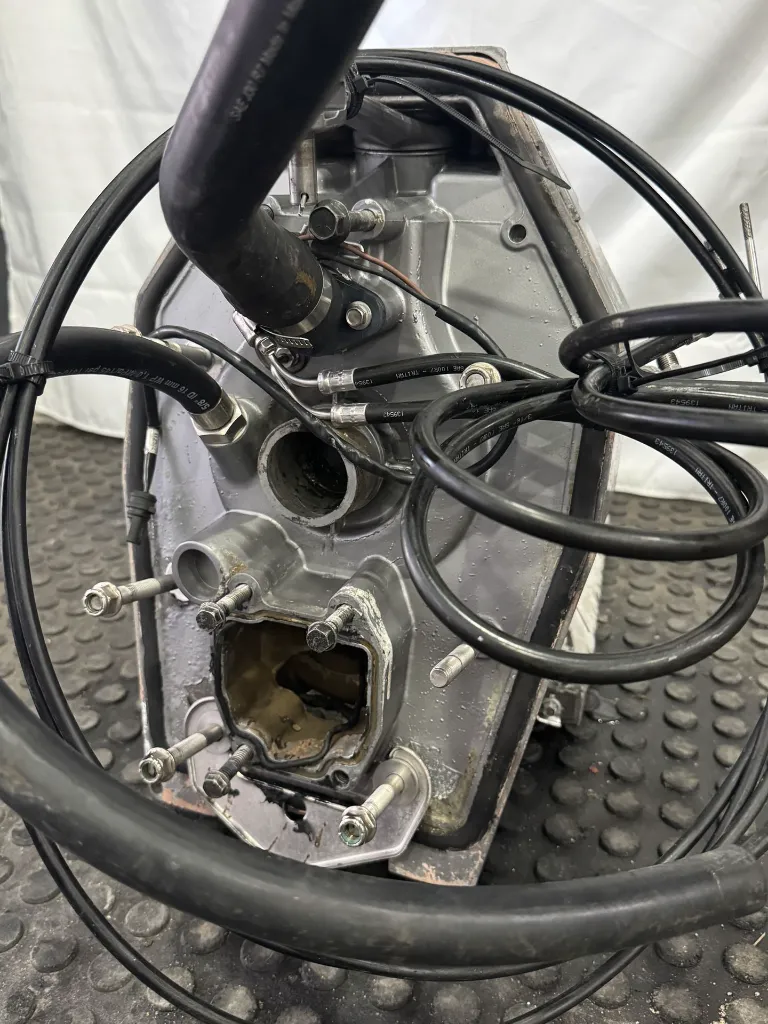

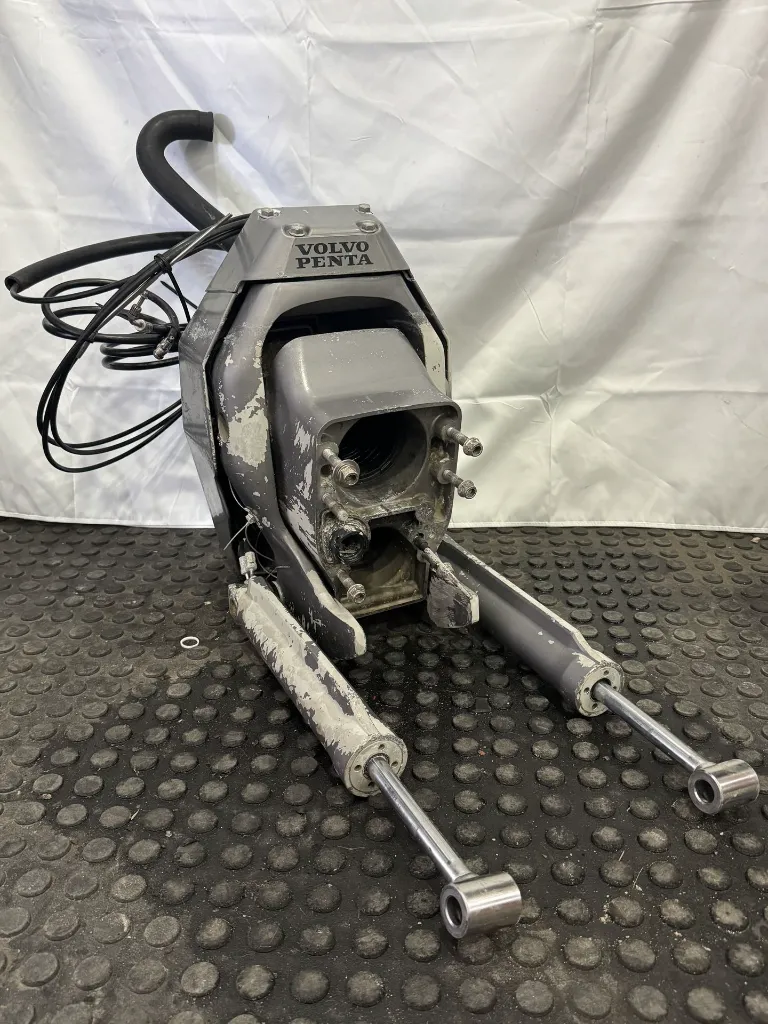

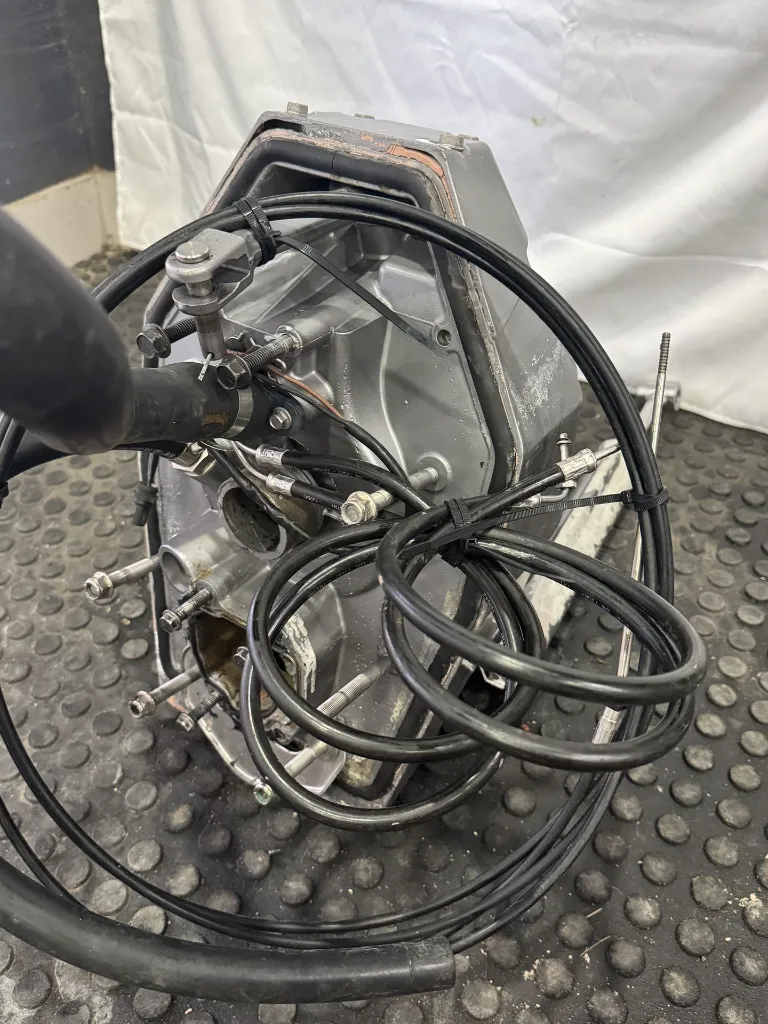

This complete used take-off assembly includes the transom shield, gimbal housing, dual hydraulic power-trim cylinders, hydraulic hoses and lines, bellows, shift cable components, steering/pivot components, mounting studs, wiring, and associated hardware exactly as pictured.
Volvo Penta service documentation for the SX-M/DP-SM family confirms this style of transom shield incorporates the gimbal housing, dual trim/tilt cylinders, hydraulic lines, shift cable, bellows, steering components, and related hardware.
Highlights
- Genuine OEM Volvo Penta
- SX / DP-S Style Transom Assembly
- Transom Shield / Gimbal Housing
- Dual Hydraulic Power-Trim Cylinders
- Hydraulic Hoses & Lines
- Bellows
- Shift Cable Components
- Steering / Pivot Components
- Mounting Studs
- Wiring / Sender Leads
- Factory Volvo Penta Gray Finish
- Complete Used Take-Off
- Sold Exactly as Pictured
Condition
Used OEM condition with significant cosmetic wear from previous marine service.

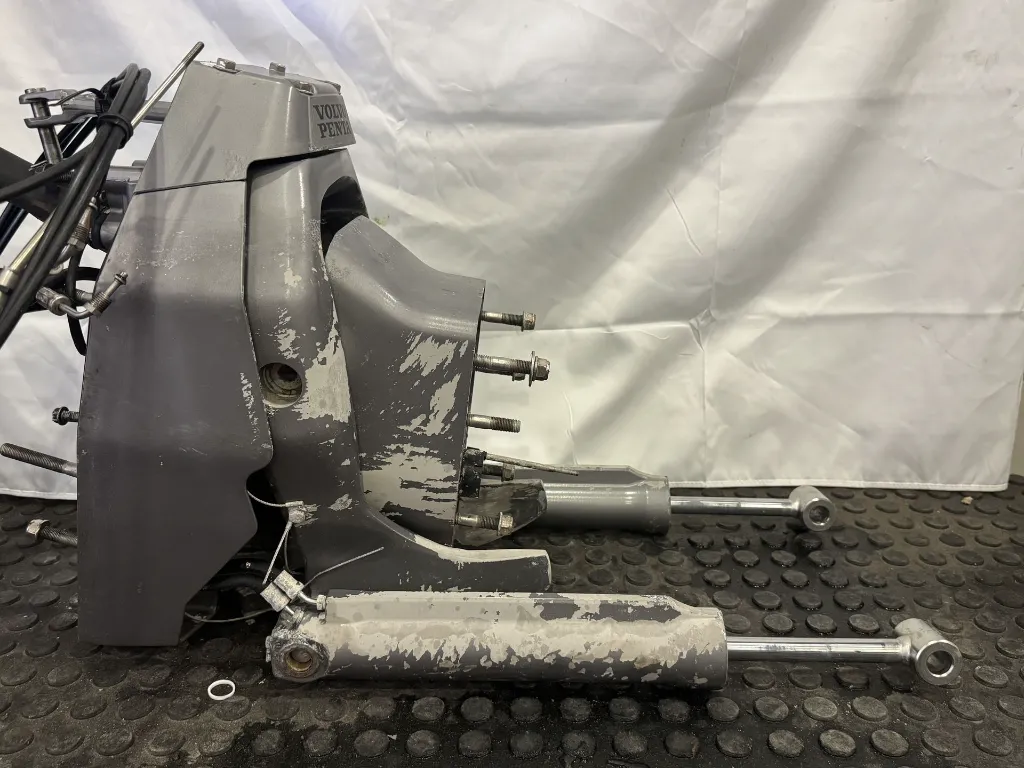

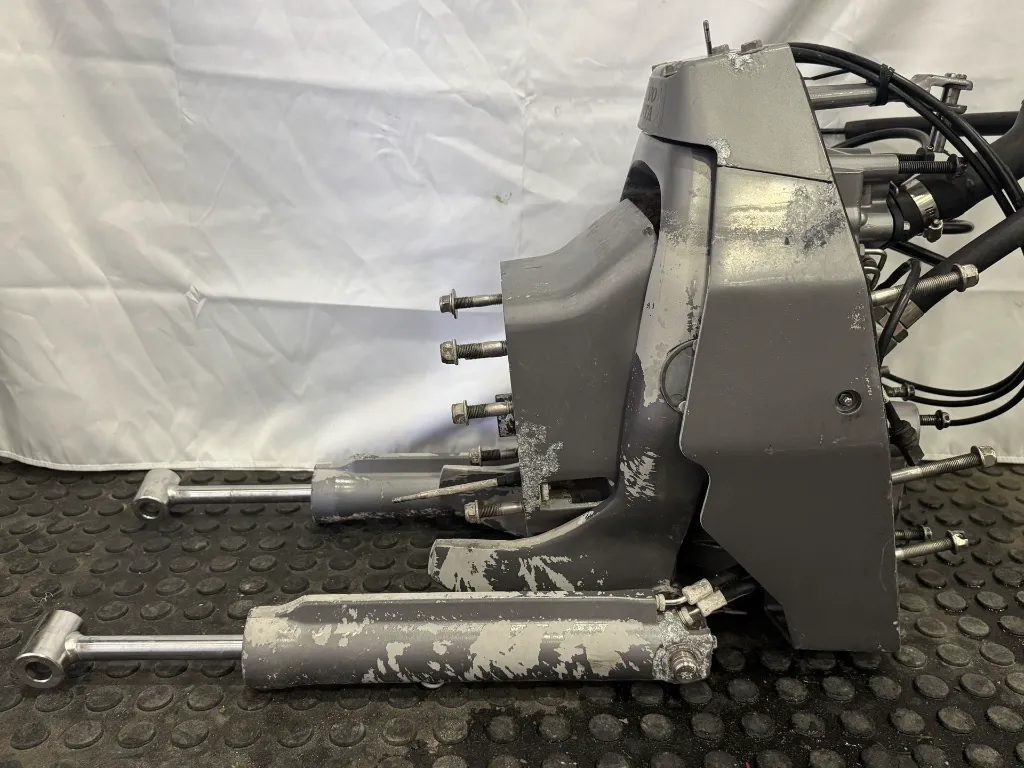

The assembly shows heavy paint loss and flaking, scratches, oxidation, corrosion, staining, residue, and installation wear, particularly around the housing and trim-cylinder areas.

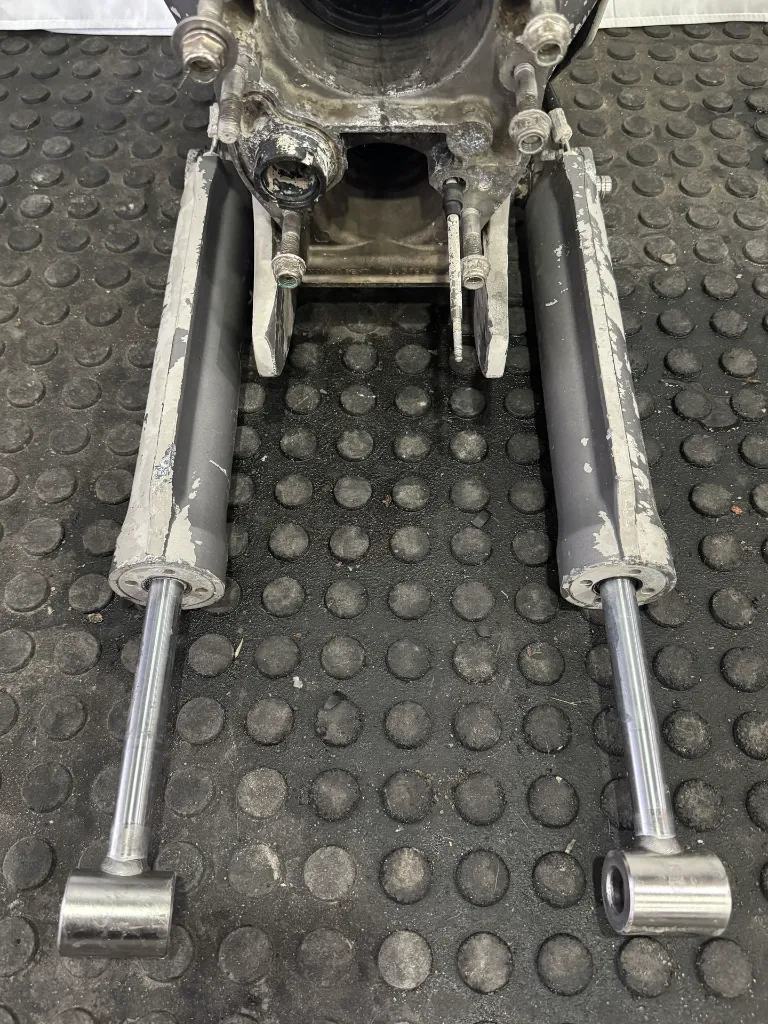

The trim-cylinder rods appear relatively clean and intact in the supplied photos, but the assembly and trim system have not been function-tested.
As with any used transom assembly, the bellows, gimbal bearing, seals, bushings, hydraulic lines, trim cylinders, shift cable, and other wearable components should be inspected and serviced or replaced as needed before installation. Volvo Penta's service procedures likewise call for inspection of items such as bushings, seals, O-rings, hydraulic connections, bellows, and mounting components during transom-shield service.
Specifications
Manufacturer: Volvo Penta
Part Type: Transom Shield / Gimbal Housing Assembly
Drive Family: SX / DP-S Style
Trim System: Dual Hydraulic Power Trim
Condition: Used / Untested
Compatibility
This assembly appears consistent with Volvo Penta SX / DP-S family sterndrive transom systems. However, these assemblies vary by generation and application, and no specific assembly part number or serial number is visible in the supplied photos.
Buyer should verify the mounting configuration, casting numbers, hydraulic connections, trim-cylinder arrangement, steering/pivot design, bellows configuration, and dimensions against their existing assembly before purchasing.
Compatibility is not guaranteed based solely on appearance or SX/DP-S designation.
Dealer Sale – Sunset Marine TX LLC
SKU: 10830
