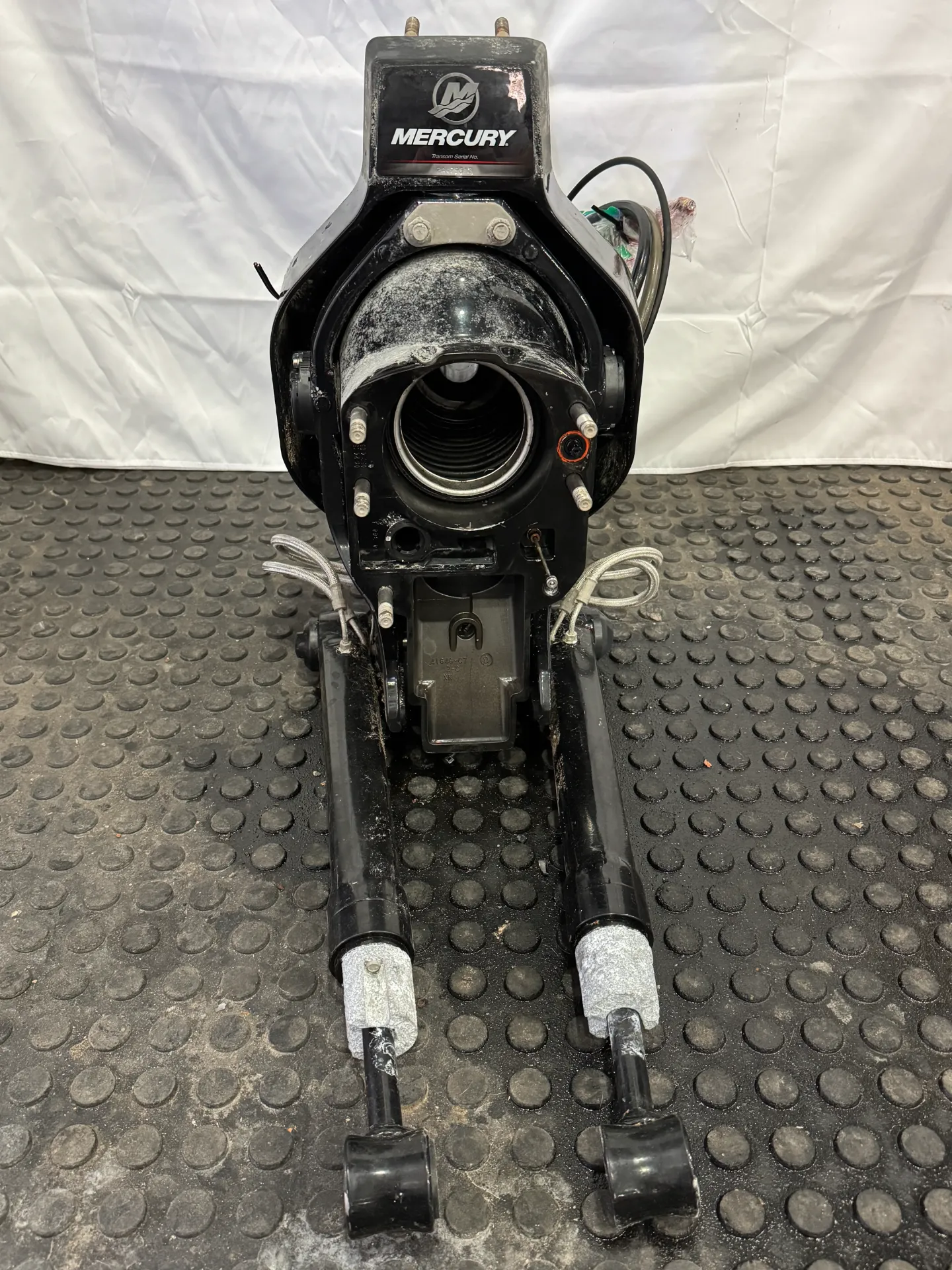

OEM Mercury MerCruiser Bravo Gimbal Housing Transom Assembly w/ Trim Cylinders 2A479513

Genuine OEM Mercury MerCruiser Bravo gimbal housing / transom assembly, identified by Transom Serial Number 2A479513.

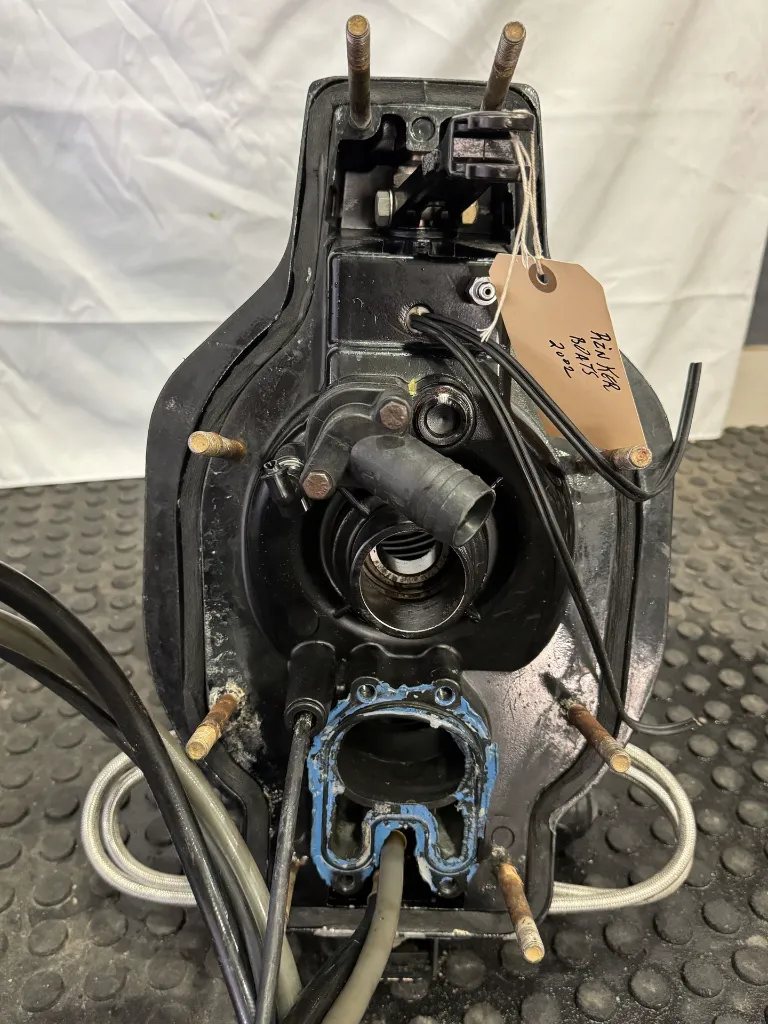

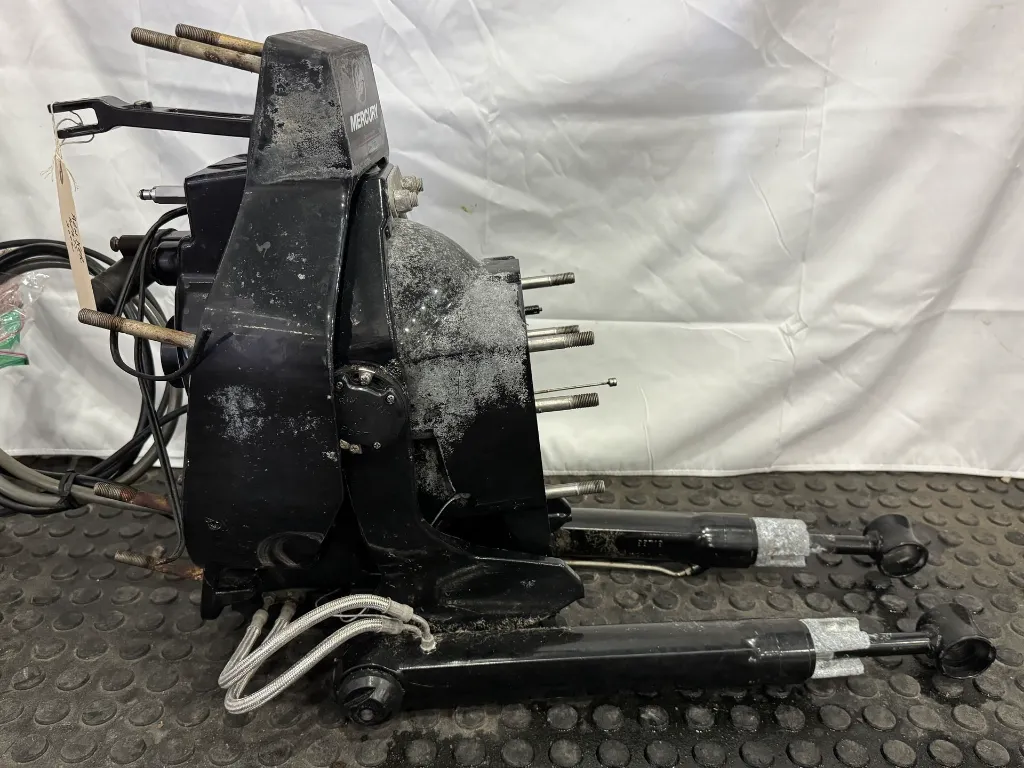

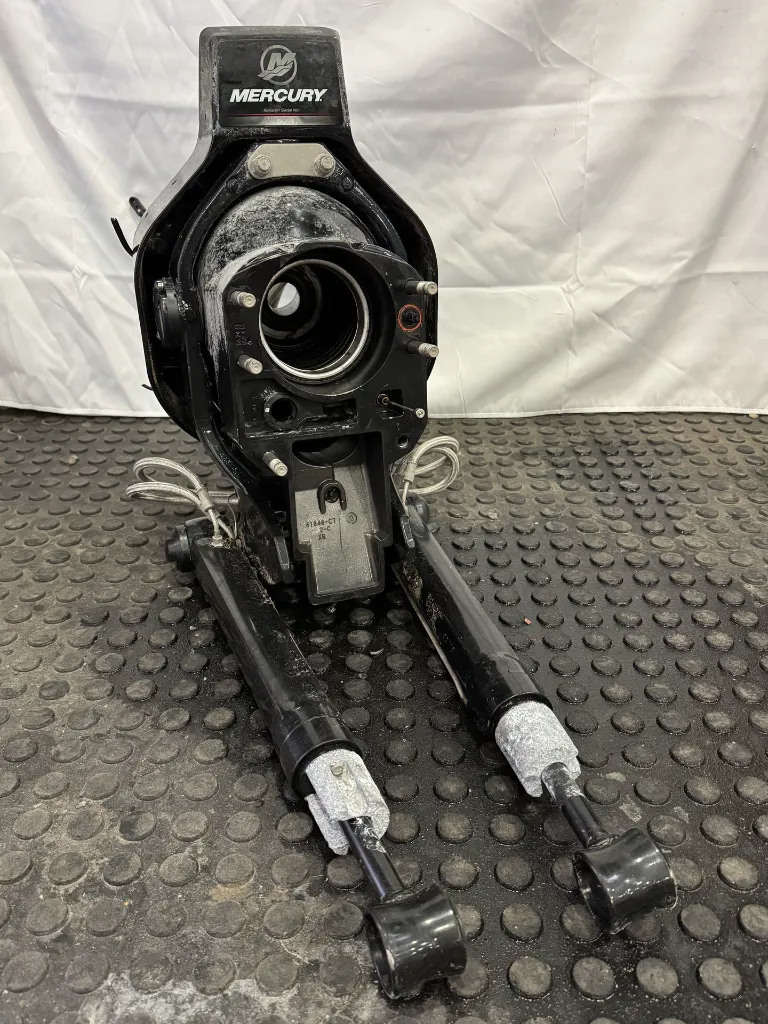

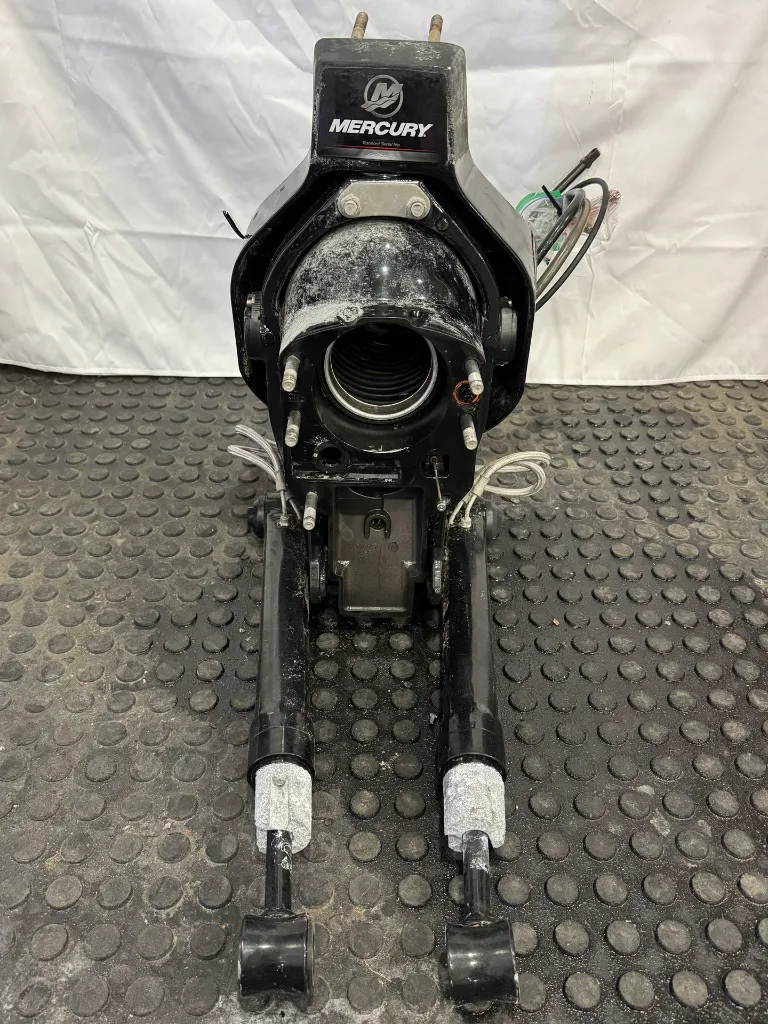

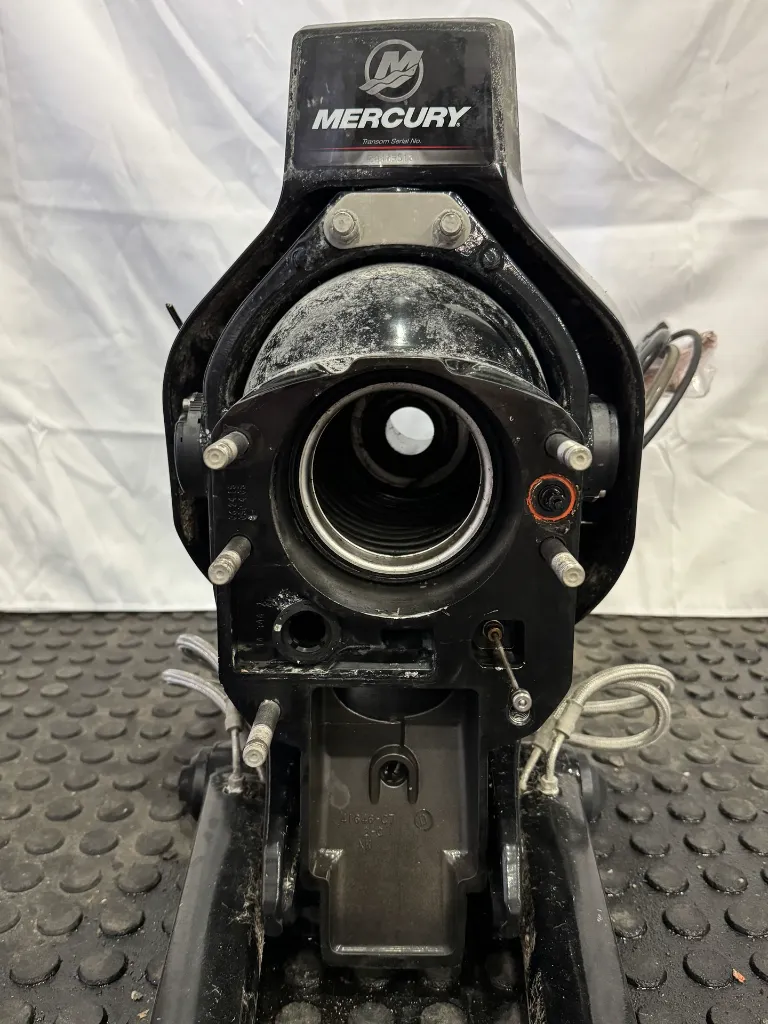

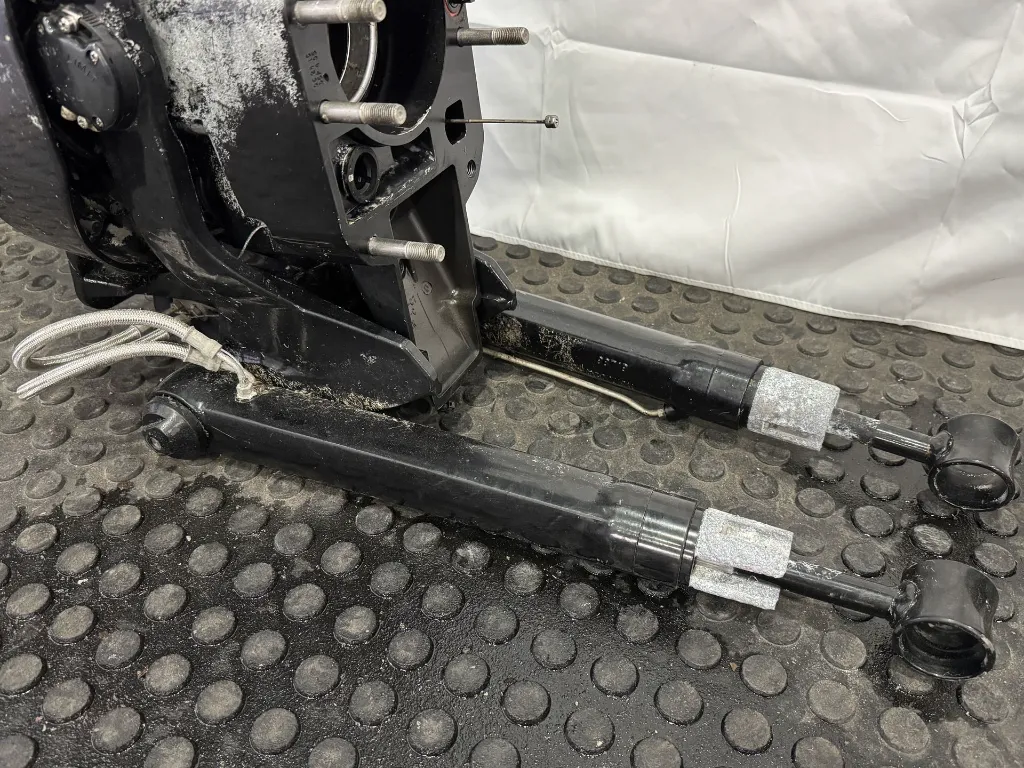

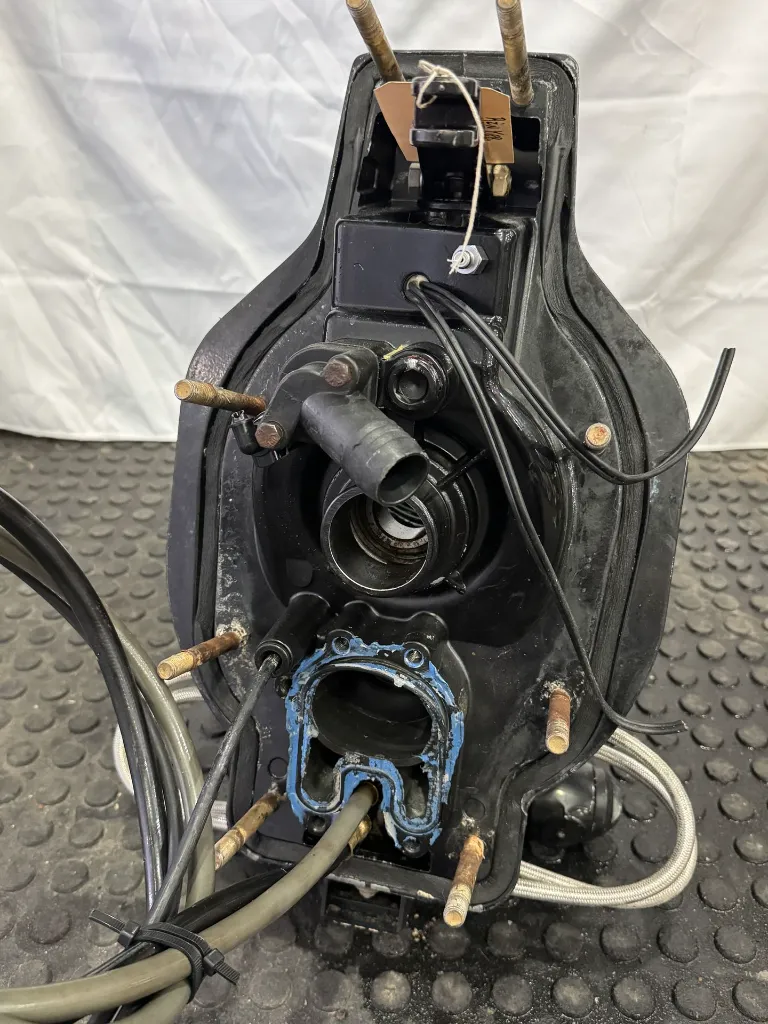

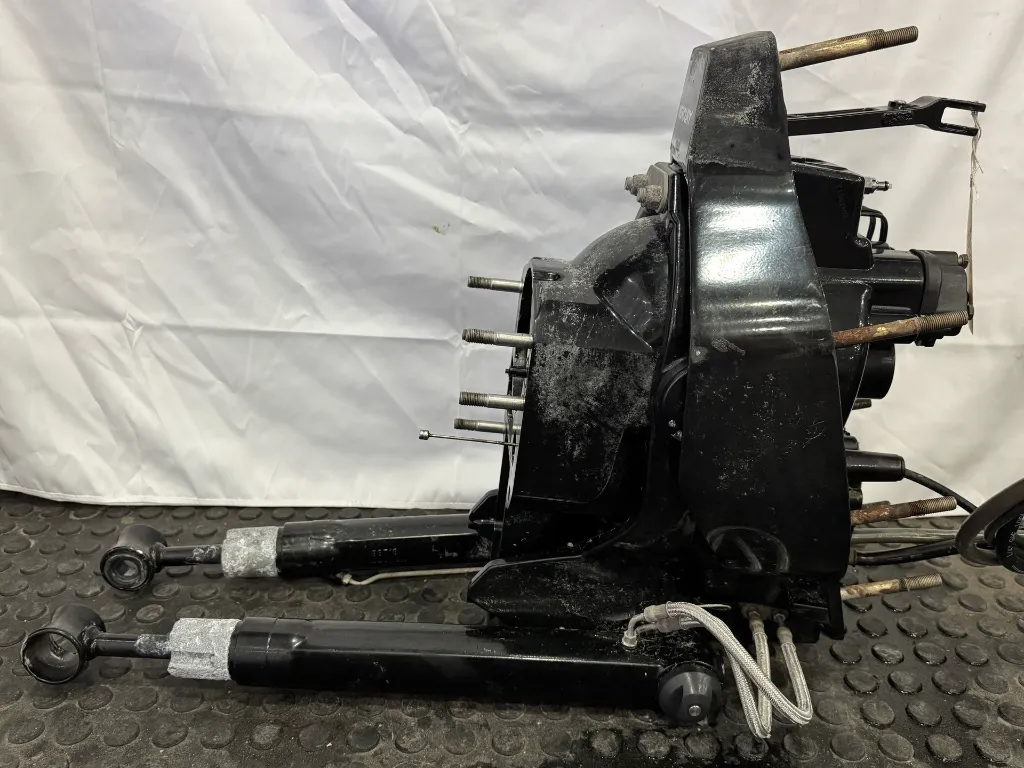

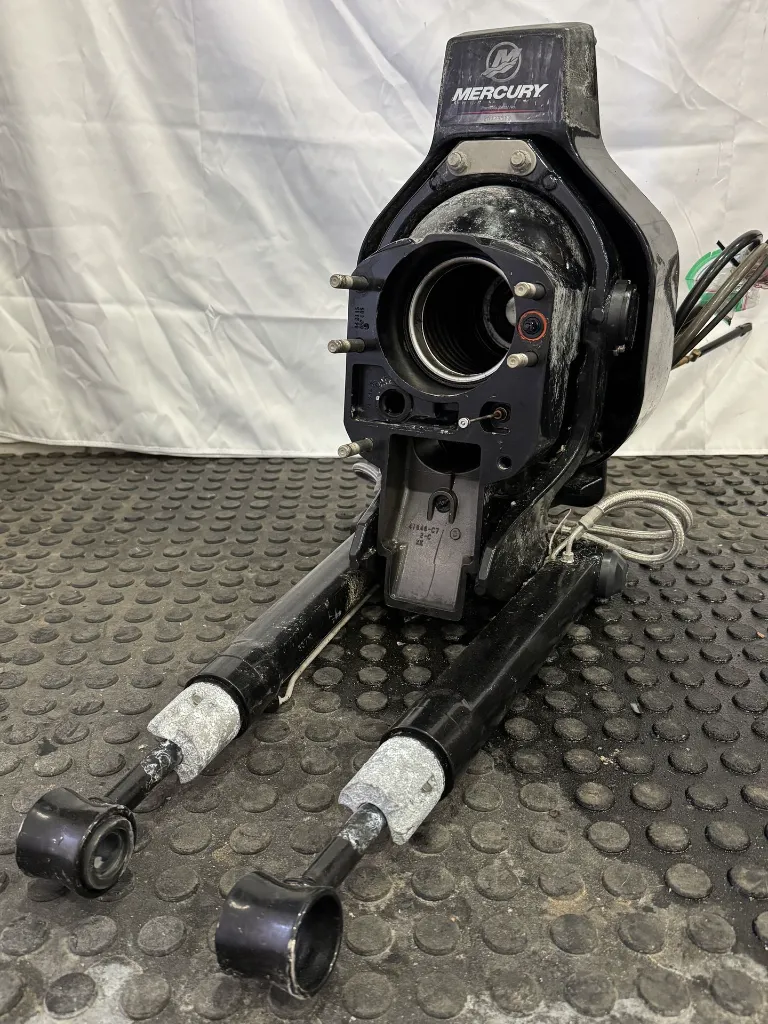

This is a complete used take-off assembly including the gimbal housing, bell housing components, dual hydraulic trim cylinders, stainless braided trim lines, bellows, mounting studs, shift-related components, wiring, hoses, and associated hardware exactly as pictured.

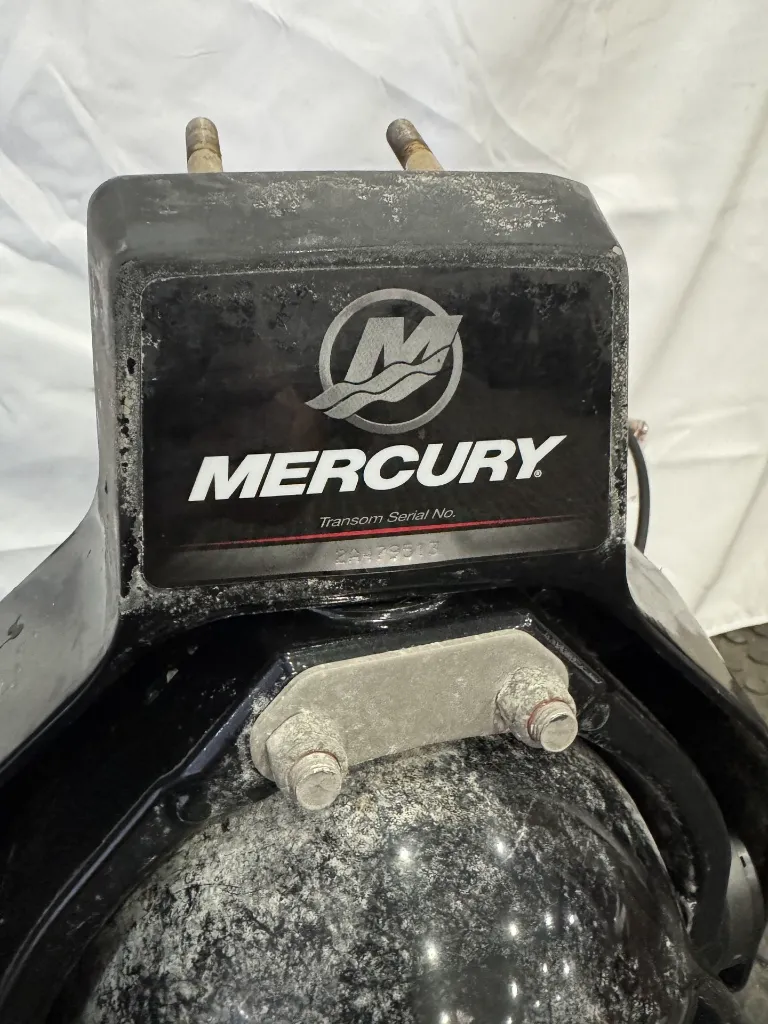

Mercury uses the transom assembly serial number separately from the sterndrive and engine serial numbers, making 2A479513 the key reference for verifying the exact configuration and replacement parts for this assembly.

Highlights

• Genuine OEM Mercury MerCruiser
• Bravo Gimbal Housing / Transom Assembly
• Transom Serial Number: 2A479513
• Dual Hydraulic Trim / Tilt Cylinders
• Stainless Braided Trim Lines
• Gimbal Housing
• Bell Housing Components
• Bellows
• Mounting Studs
• Shift-Related Hardware
• Wiring & Hoses
• Complete Take-Off Assembly
• Sold Exactly as Pictured

Condition

Good overall used OEM condition with substantial cosmetic wear consistent with previous marine service.

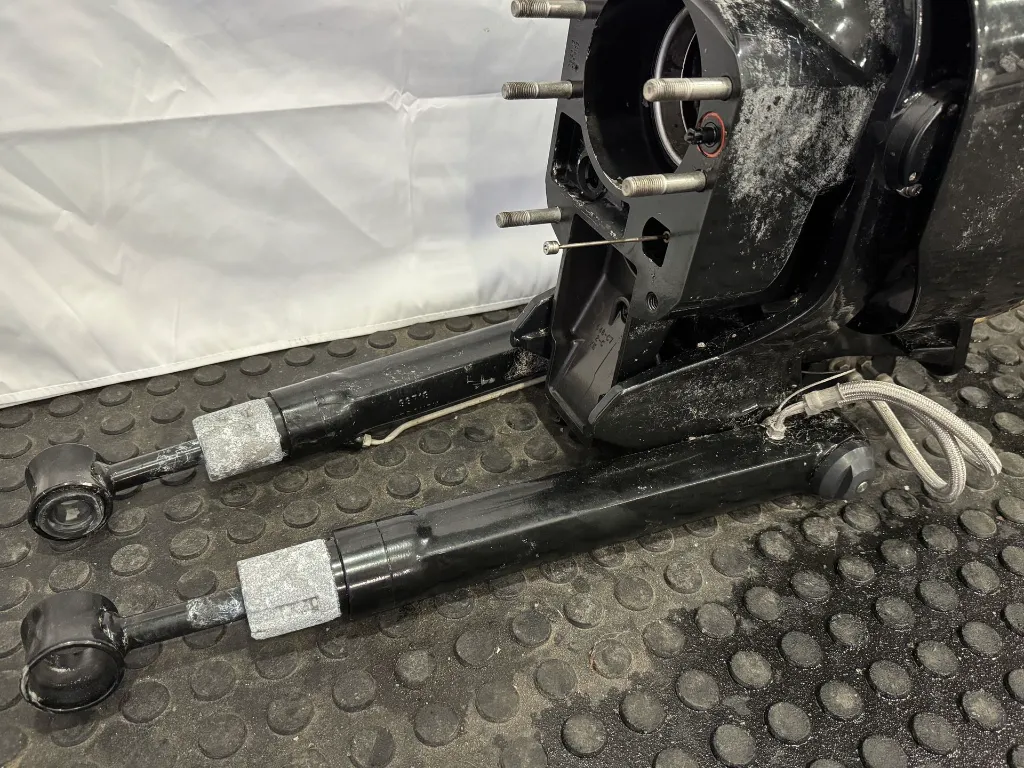

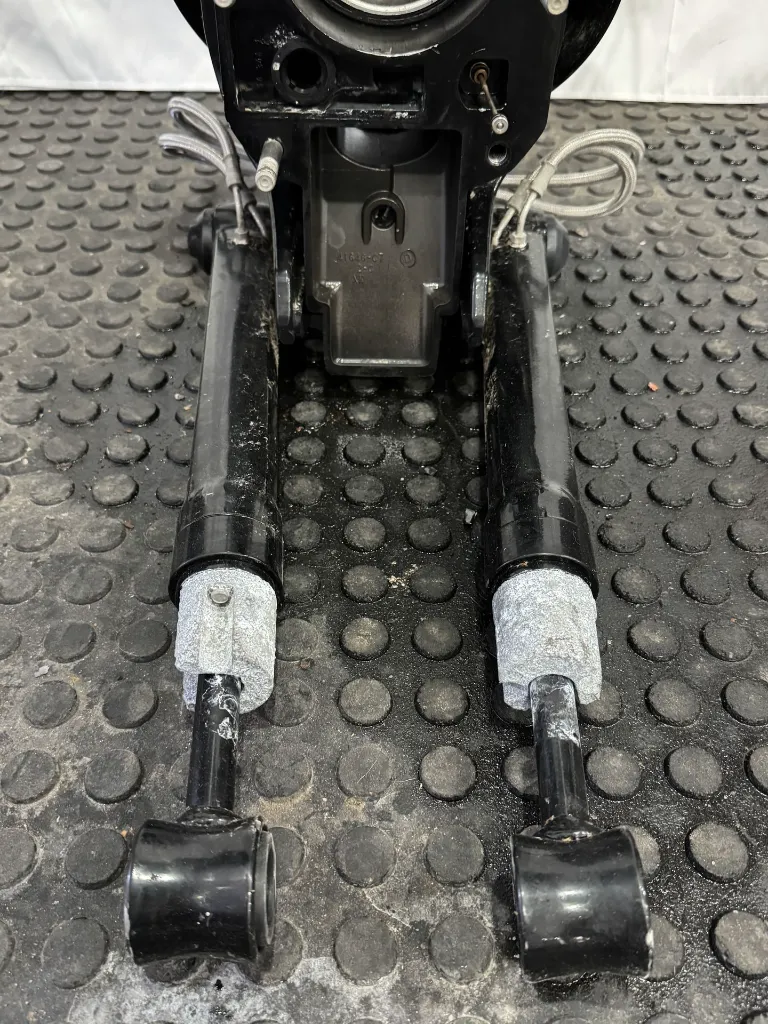

The assembly shows oxidation, corrosion, paint loss, scratches, staining, residue, and general surface wear. The trim cylinders and related hardware also show normal age- and use-related cosmetic wear.

The components have not been function-tested, so this assembly is being sold in used condition exactly as pictured.

As with any used transom assembly, the gimbal bearing, bellows, seals, bushings, trim cylinders, hydraulic lines, shift components, and other service items should be inspected and serviced or replaced as necessary before installation.

Specifications

Manufacturer: Mercury Marine / MerCruiser

Drive Family: Bravo

Part Type: Gimbal Housing / Transom Assembly

Transom Serial Number: 2A479513

Trim System: Dual Hydraulic Cylinders

Condition: Used / Untested

Compatibility

MerCruiser Bravo transom assemblies are used with Bravo One, Bravo Two, and Bravo Three sterndrive applications, and Mercury parts references group complete Bravo transom assemblies across these drive families.

However, Bravo transom assemblies vary by serial range and configuration, so compatibility should not be determined by appearance or the Bravo designation alone.

Buyer should verify compatibility using Transom Serial Number 2A479513 and compare the gimbal housing, bell housing, trim sender configuration, mounting arrangement, steering components, and connections with their existing assembly before purchasing.
