OEM Volvo Penta SX-M DP-SM Gimbal Housing Transom Shield Trim Cylinder Assembly

Genuine OEM Volvo Penta sterndrive gimbal housing / transom shield assembly with dual hydraulic trim cylinders.

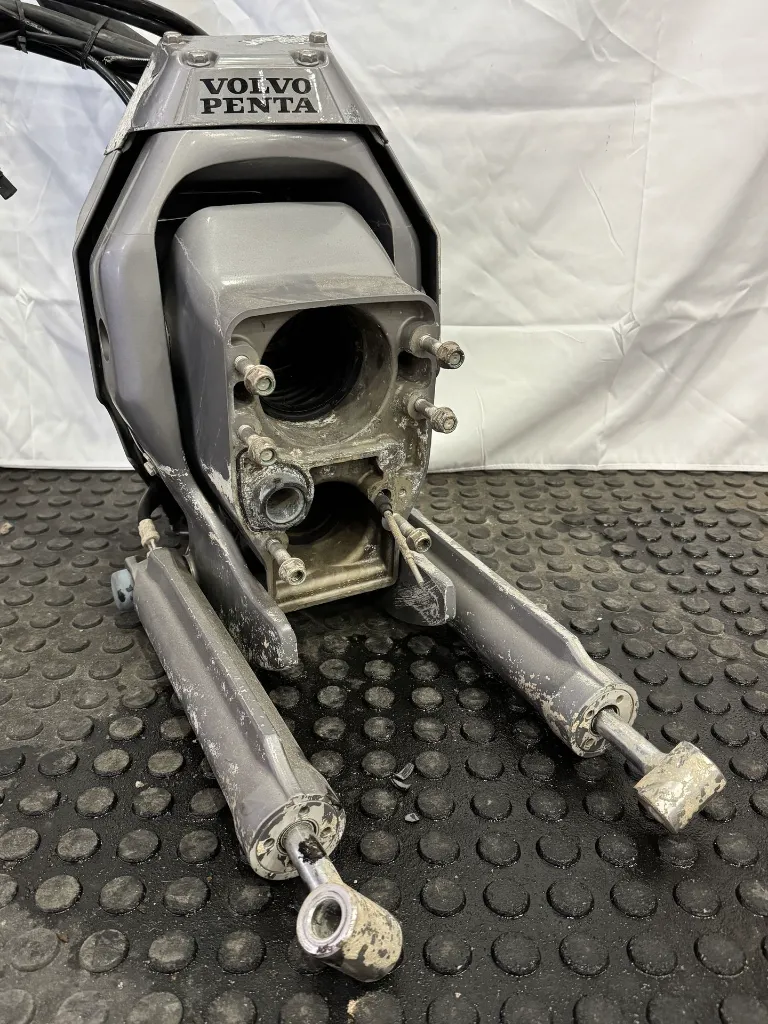

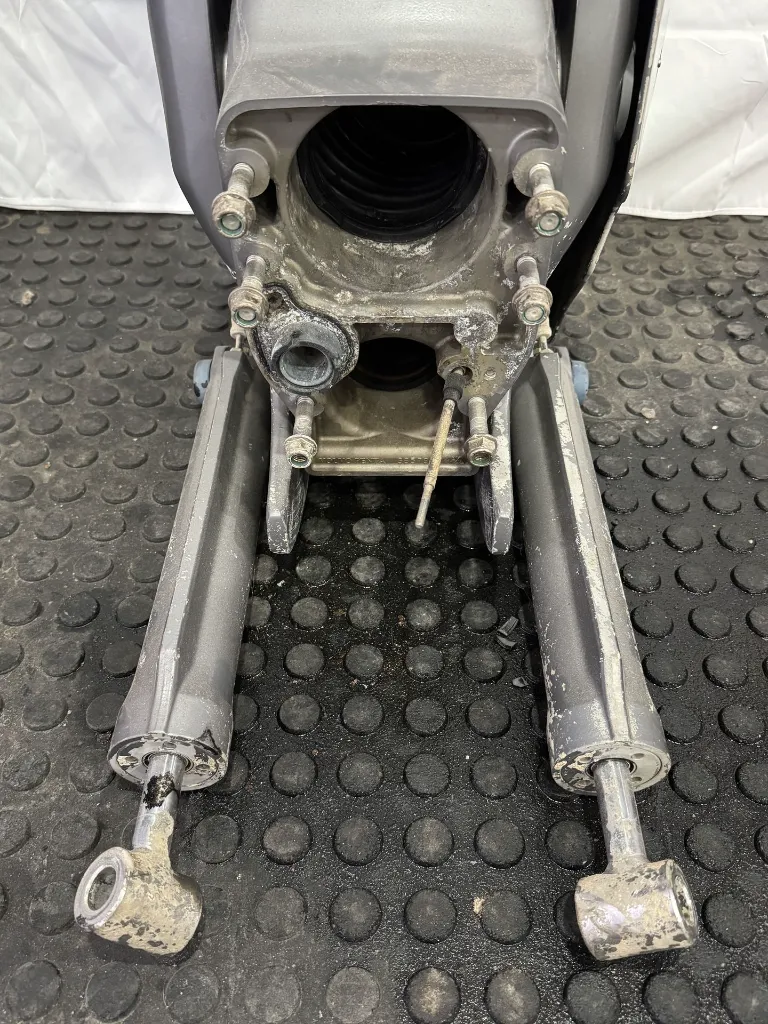

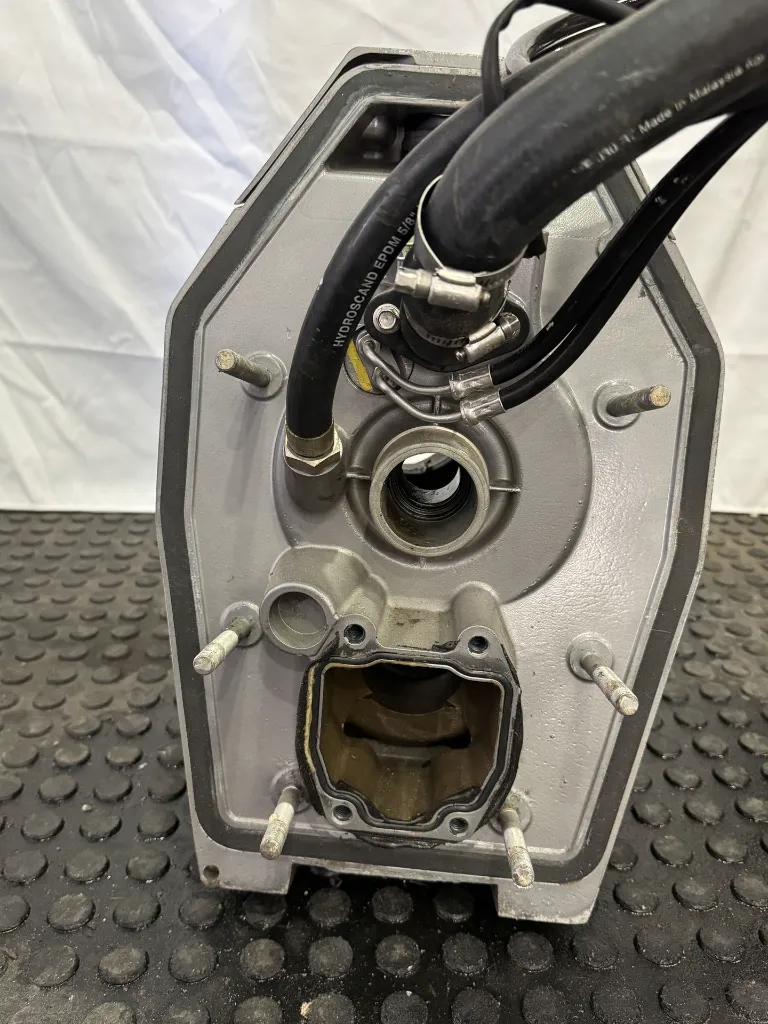

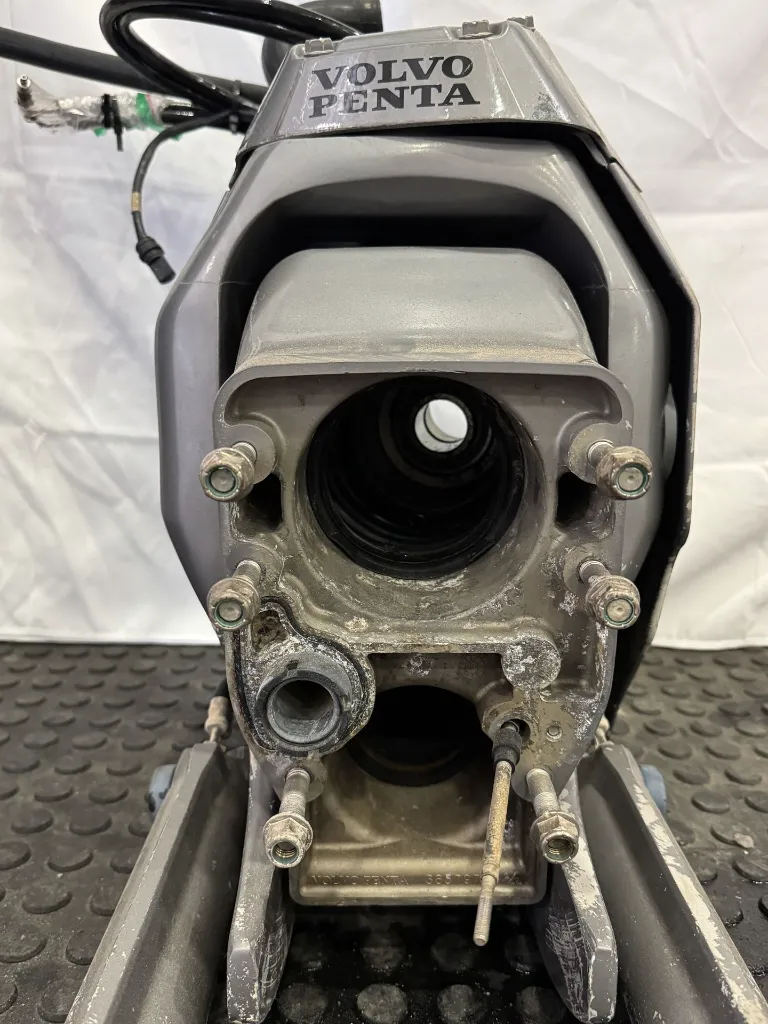

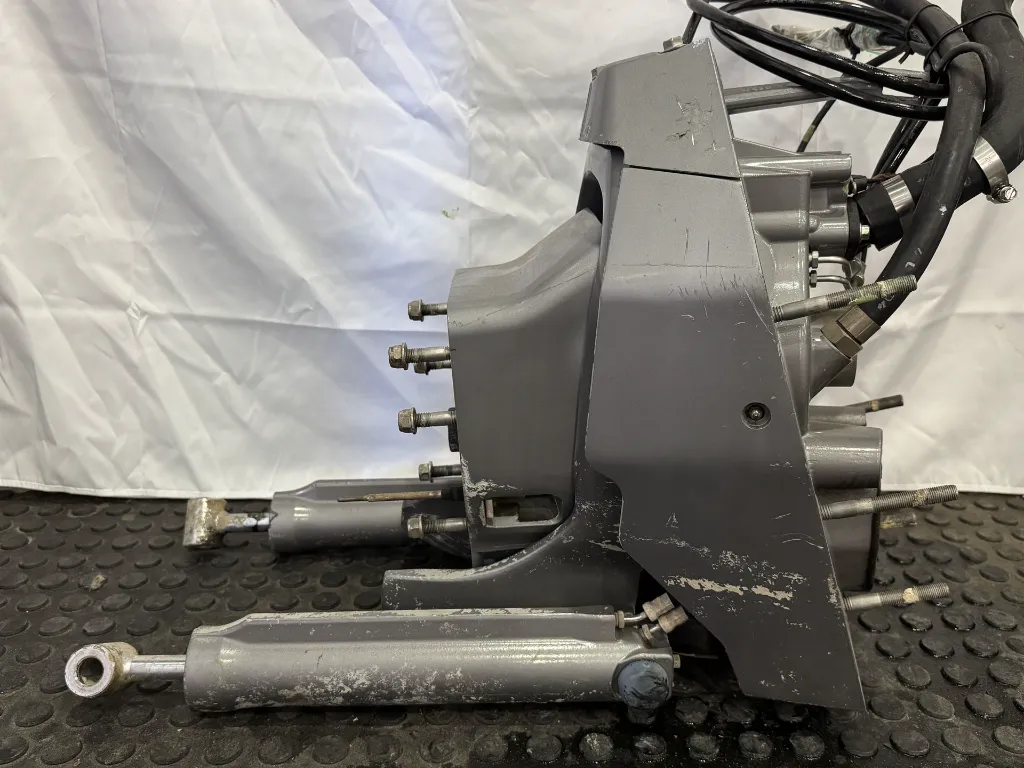

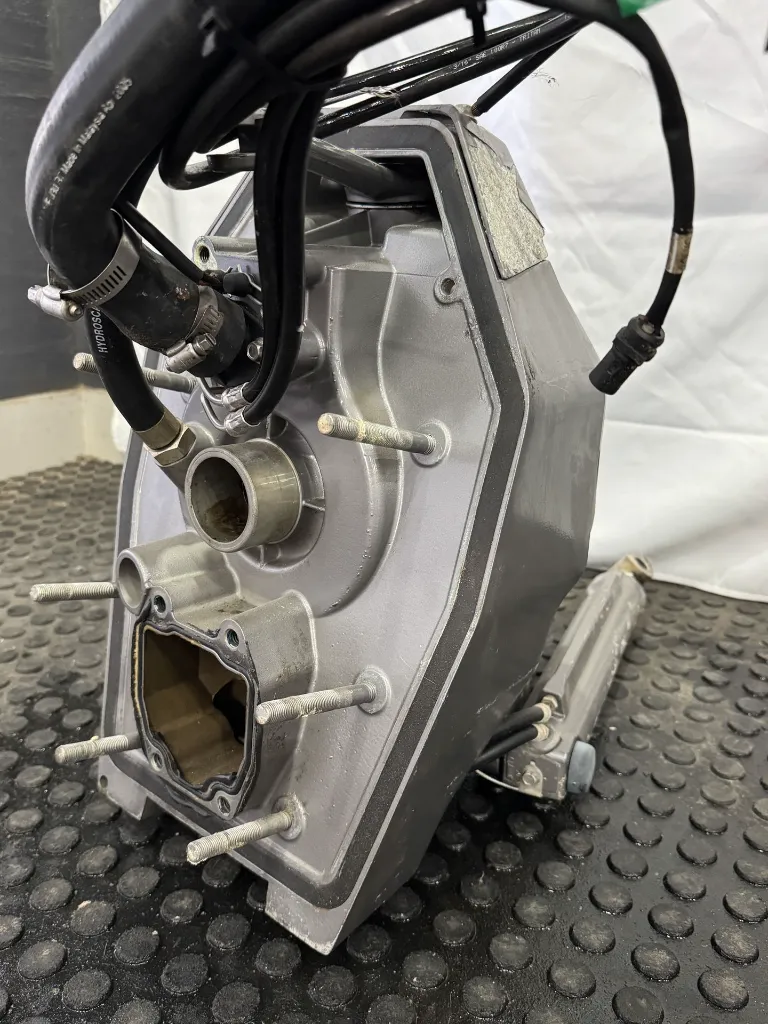

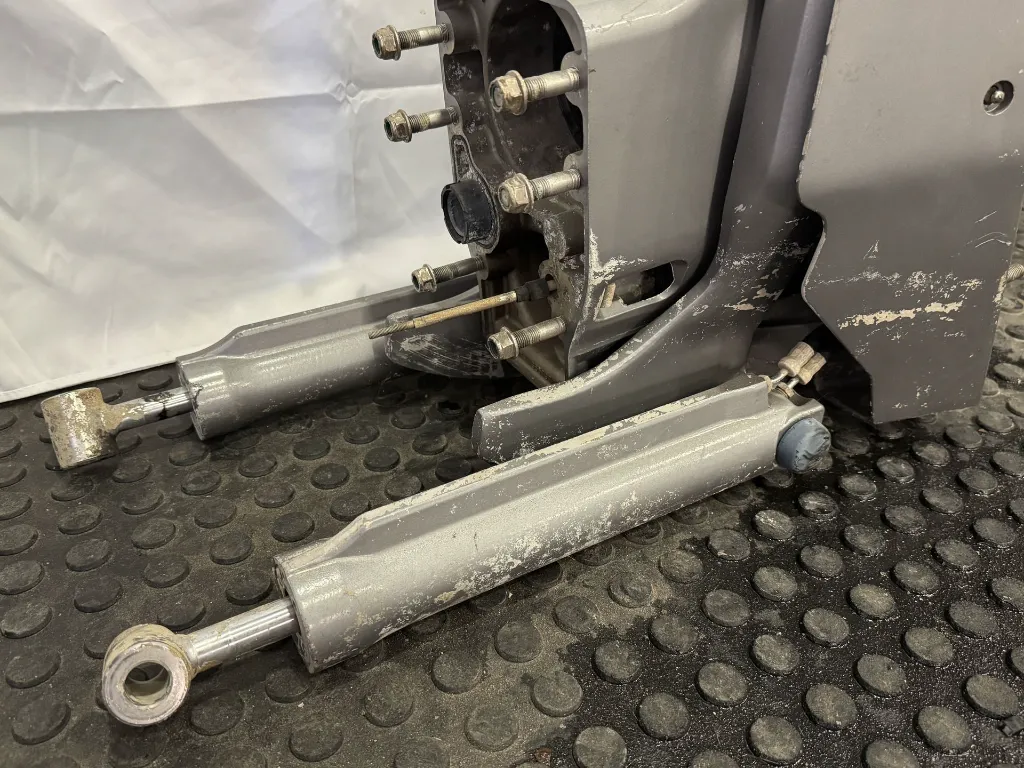

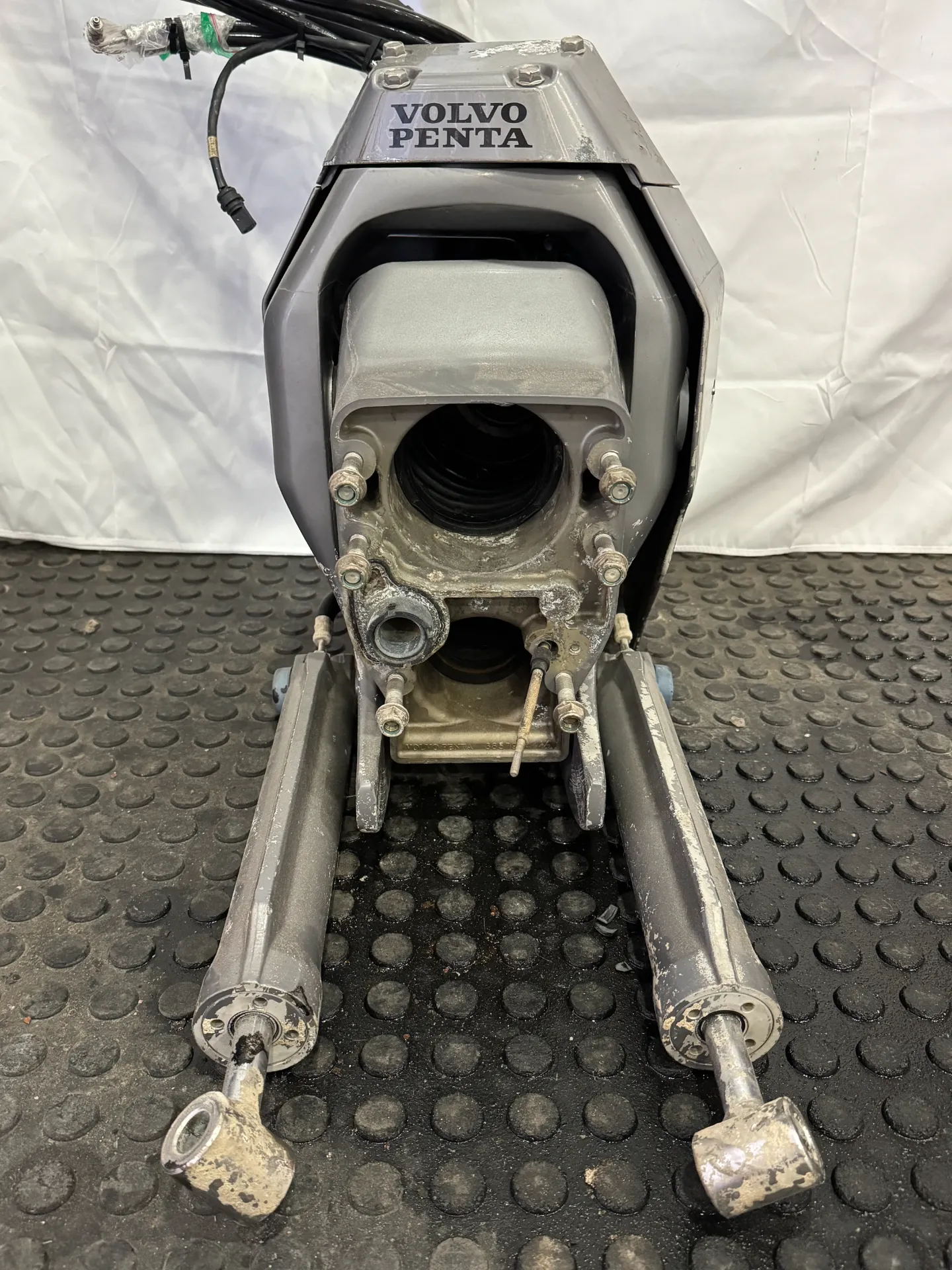

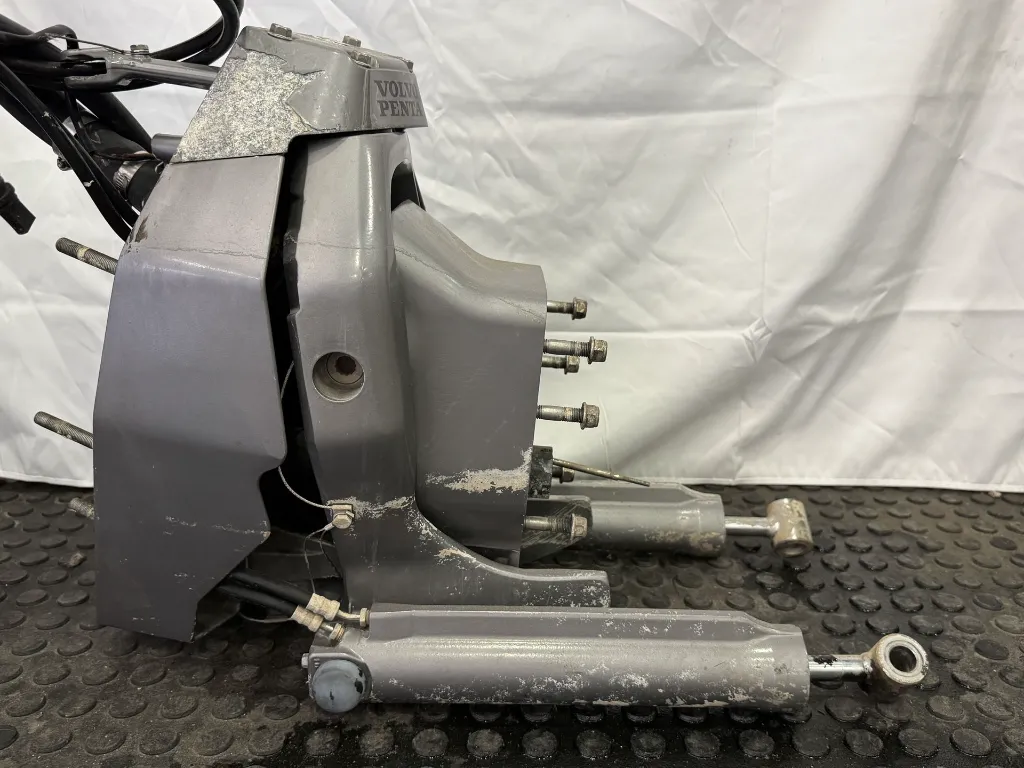

This complete take-off assembly includes the gimbal housing, transom shield, pivot/gimbal components, dual hydraulic trim/tilt cylinders, hydraulic lines, bellows, mounting studs, wiring/leads, and associated hardware exactly as pictured.

Volvo Penta service documentation confirms this general transom shield design was used across SX-M and DP-SM drive families and incorporates dual trim/tilt cylinders, hydraulic lines, gimbal components, bellows, and related hardware.

Highlights

• Genuine OEM Volvo Penta
• Gimbal Housing / Transom Shield Assembly
• Dual Hydraulic Trim / Tilt Cylinders
• Hydraulic Lines Included
• Bellows Included
• Steering / Pivot Components
• Mounting Studs
• Wiring / Sender Leads as Shown
• Factory Volvo Penta Gray Finish
• Complete Take-Off Assembly
• Sold Exactly as Pictured

Condition

Good overall used OEM condition with normal cosmetic wear consistent with previous marine use.

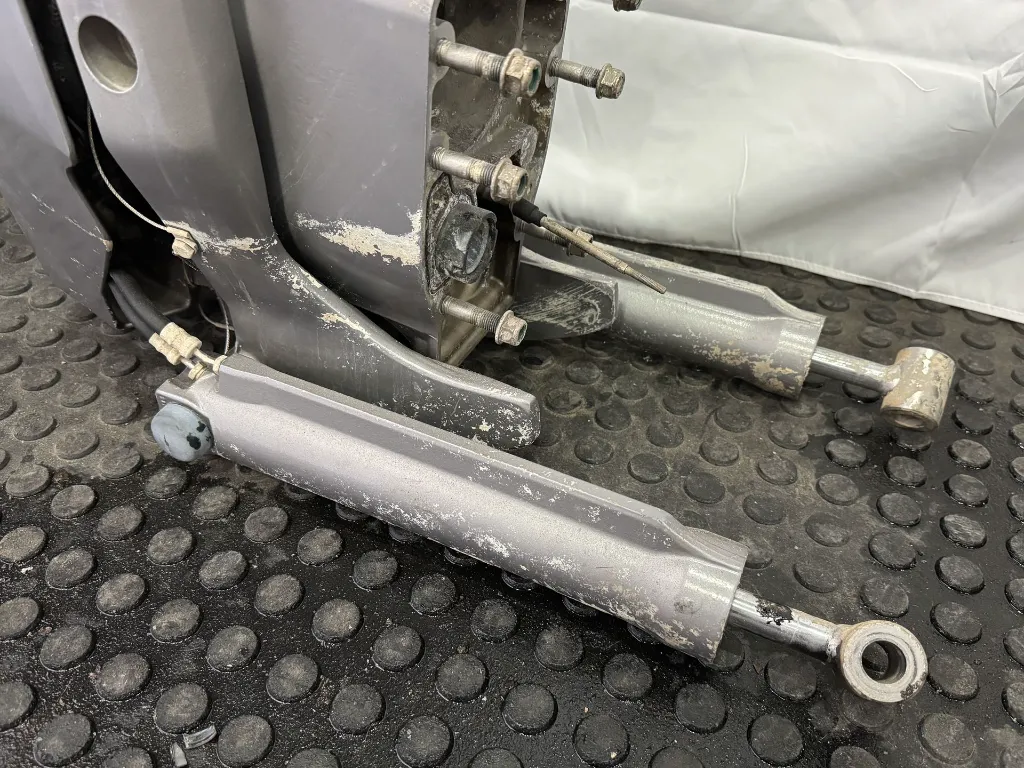

The housing and trim cylinders show paint loss, scratches, oxidation, corrosion, staining, and surface wear. The trim cylinder rods and housings also show visible cosmetic wear.

The assembly appears substantially complete as pictured; however, functionality has not been tested or verified.

As with any used transom assembly, the bellows, gimbal bearing, seals, bushings, hydraulic lines, trim cylinders, and other service components should be inspected and serviced or replaced as needed before installation.

Specifications

Manufacturer: Volvo Penta

Part Type: Gimbal Housing / Transom Shield Assembly

Drive Family: SX / DP-S Style

Trim System: Dual Hydraulic Trim / Tilt Cylinders

Condition: Used / Untested

Compatibility

This assembly appears consistent with Volvo Penta SX, SX-M, DP-S, and DP-SM sterndrive applications. Volvo Penta's workshop literature specifically documents SX-M and DP-SM variants using this style of transom shield system.

The exact assembly/casting number is not visible, so specific model and year compatibility is not guaranteed.

Buyer should compare the mounting pattern, housing configuration, casting numbers, hydraulic connections, steering components, bellows arrangement, and dimensions with their existing assembly before purchasing.

Dealer Sale – Sunset Marine TX LLC

SKU: 10809
