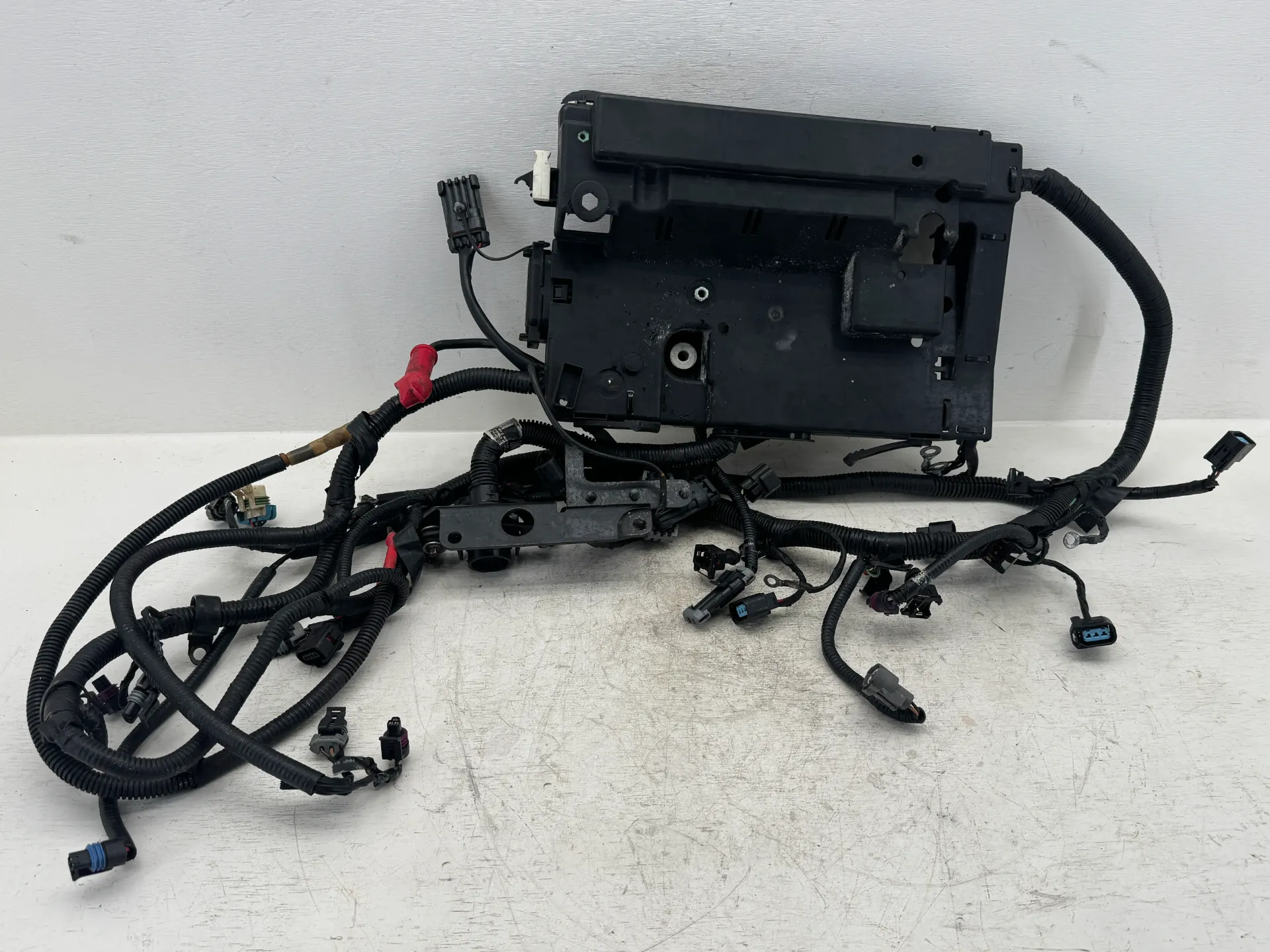

OEM Mercury Marine 7.0L Complete Engine Wiring Harness Fuse Relay Box Assembly
Genuine OEM Mercury Marine complete engine wiring harness assembly removed from a 7.0L marine engine.

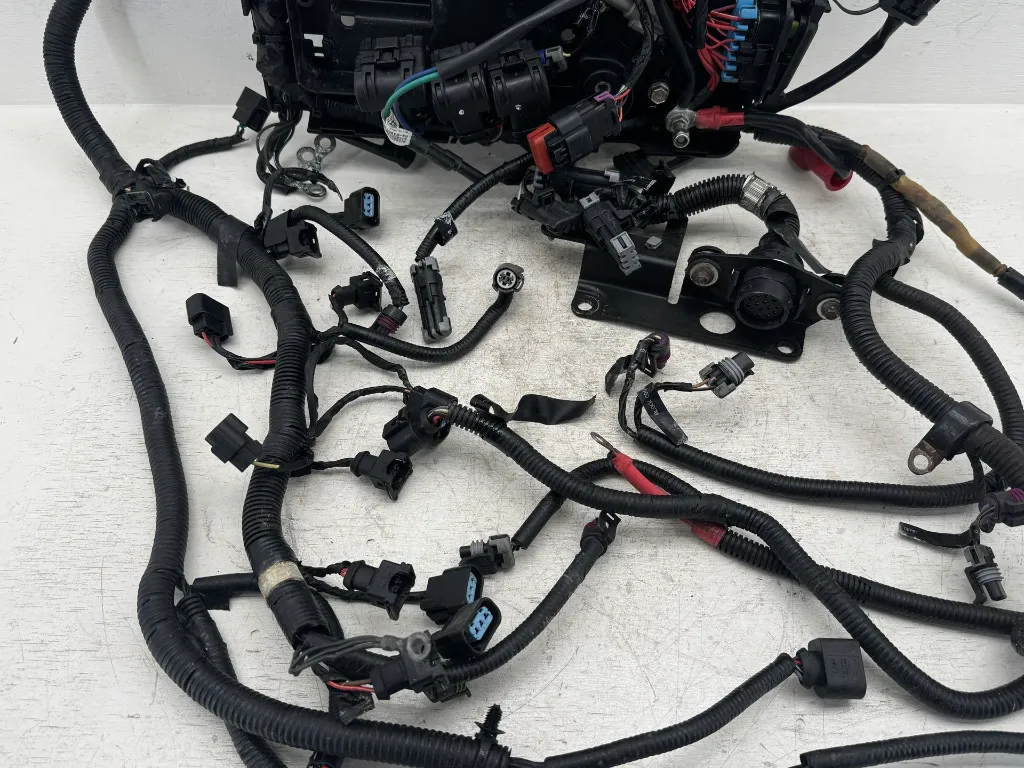

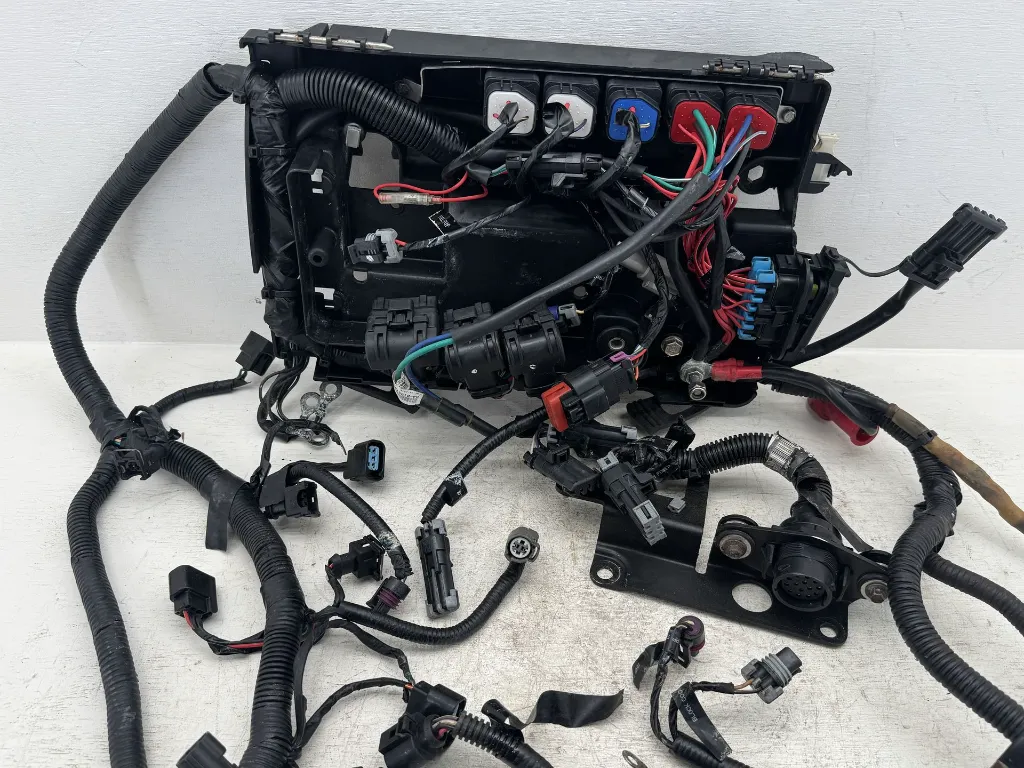

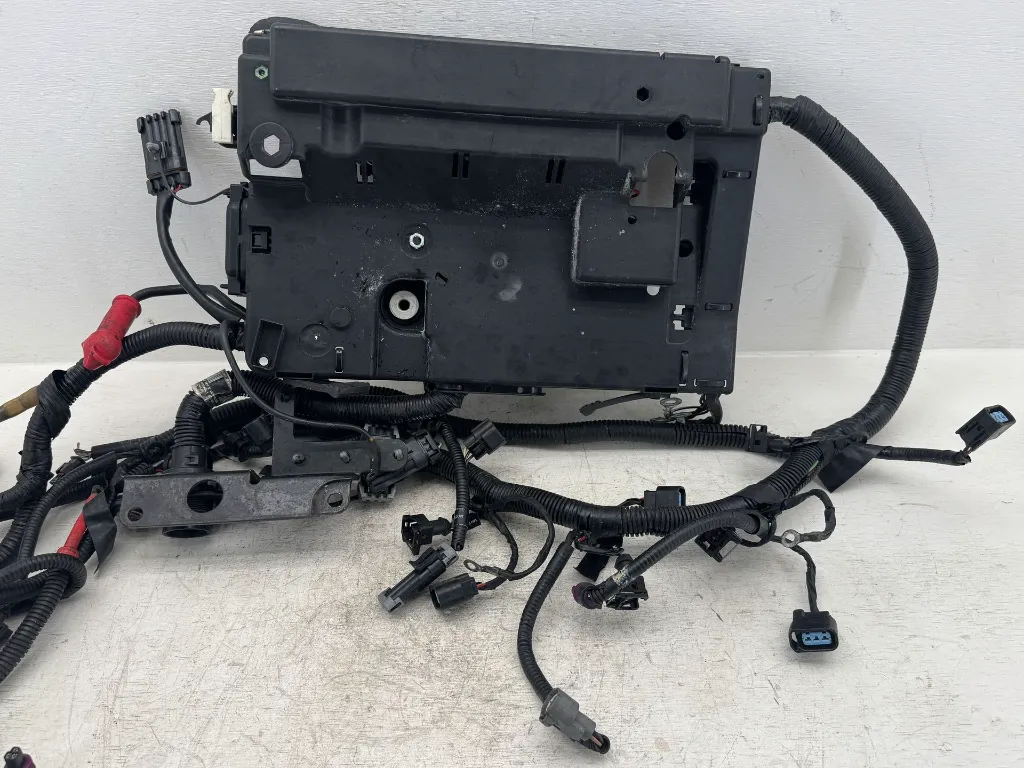

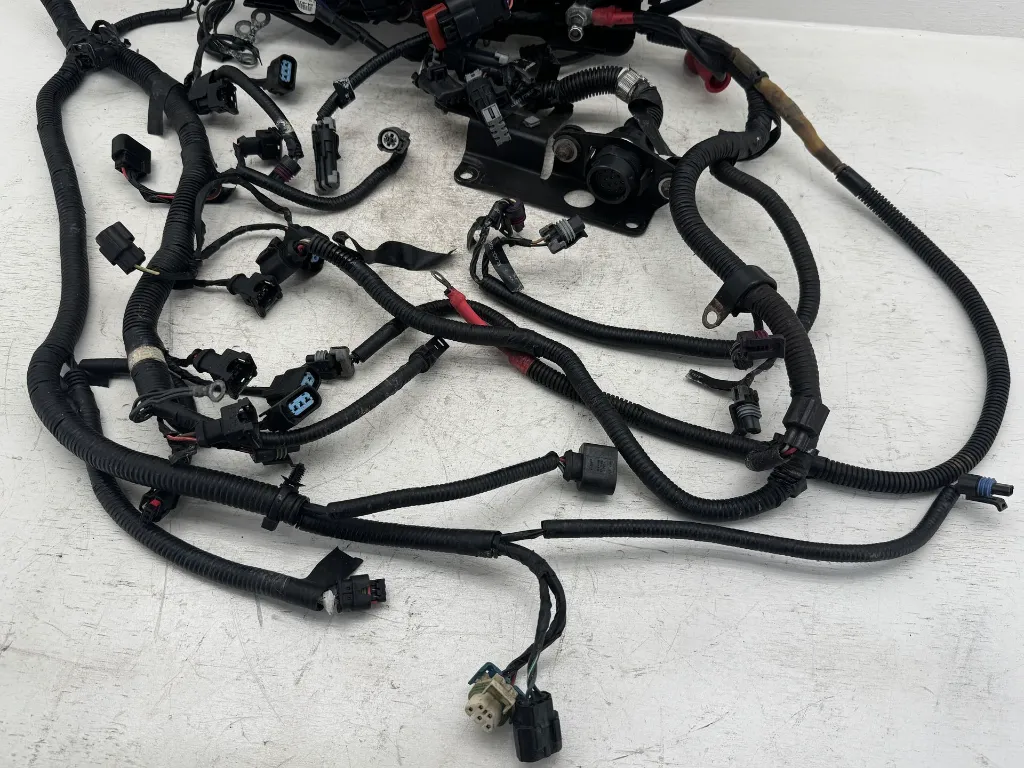

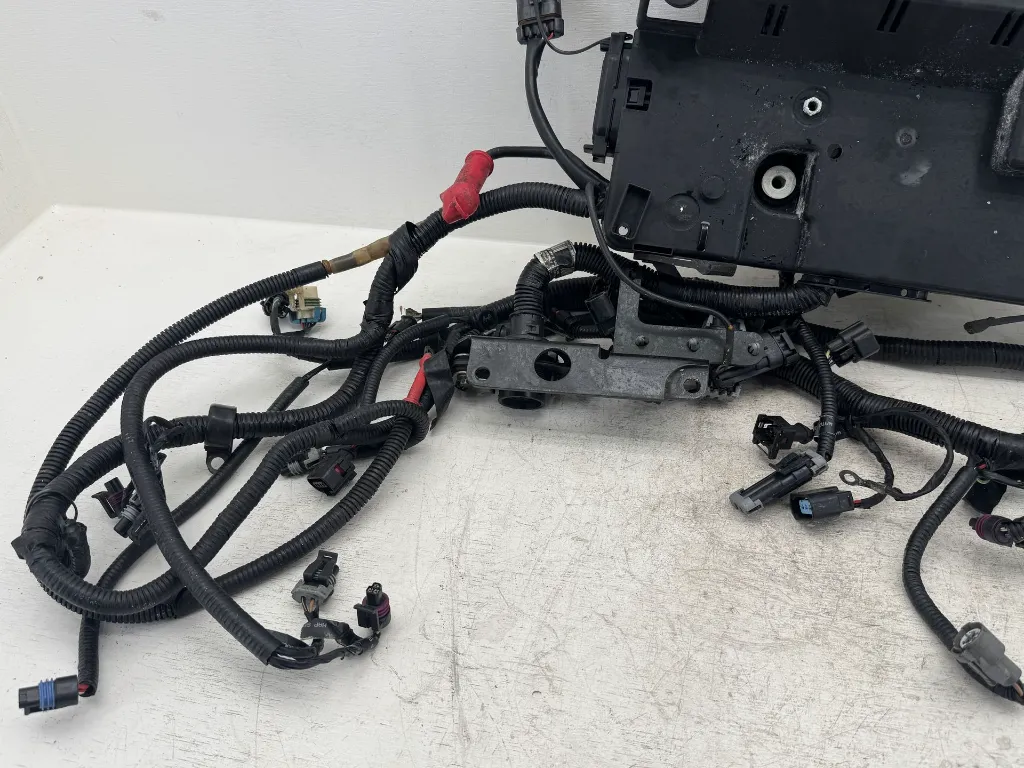

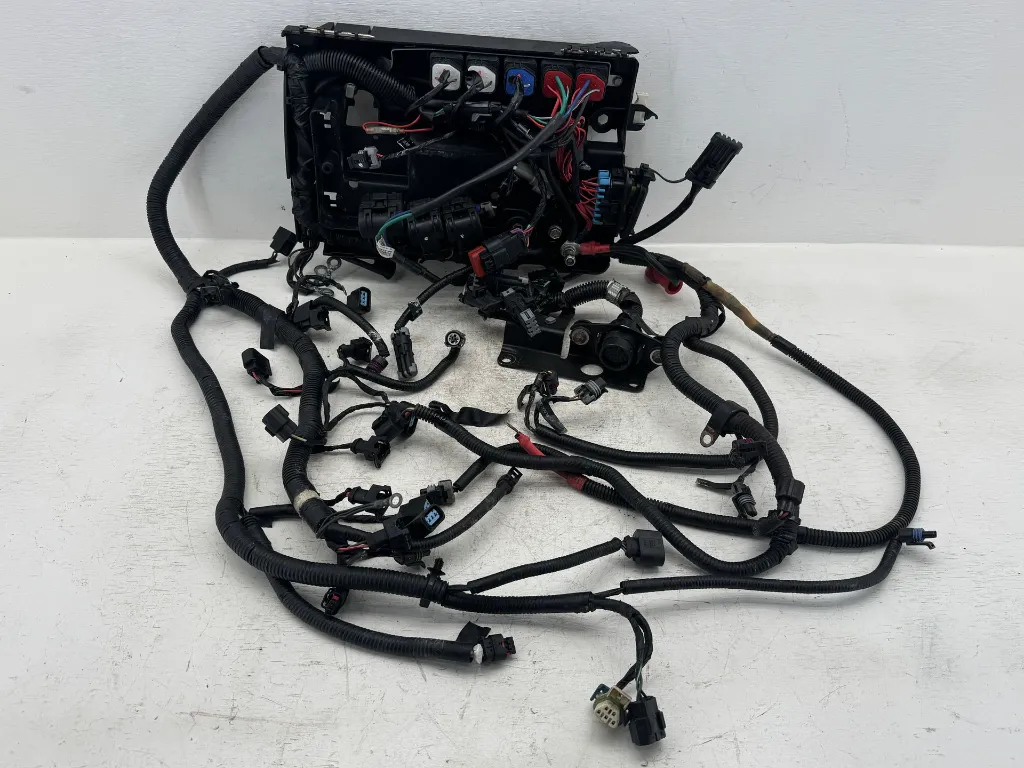

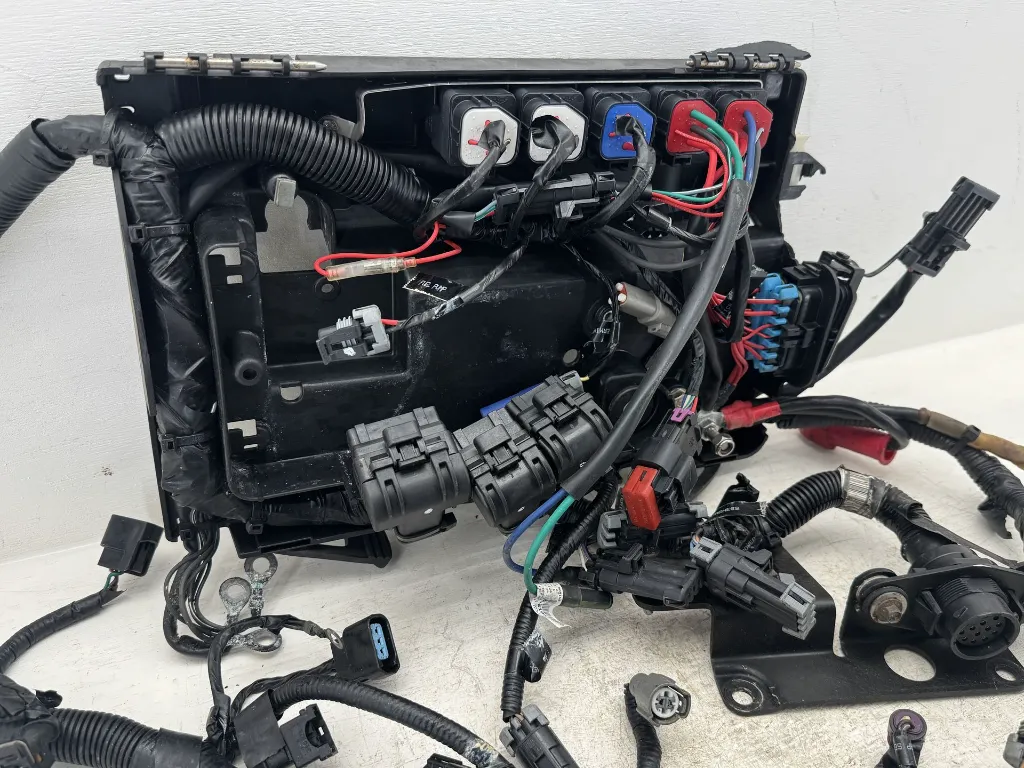

This is a large, complete take-off electrical assembly that includes the main engine wiring harness, electrical/fuse and relay distribution box, heavy-gauge power wiring, bulkhead connector, and numerous factory sensor and component connectors exactly as pictured.
This listing is for the complete assembly shown, rather than an individual replacement harness or connector.
Highlights
- Genuine OEM Mercury Marine
- Removed from a 7.0L Marine Engine
- Complete Engine Wiring Harness Assembly
- Main Engine Harness

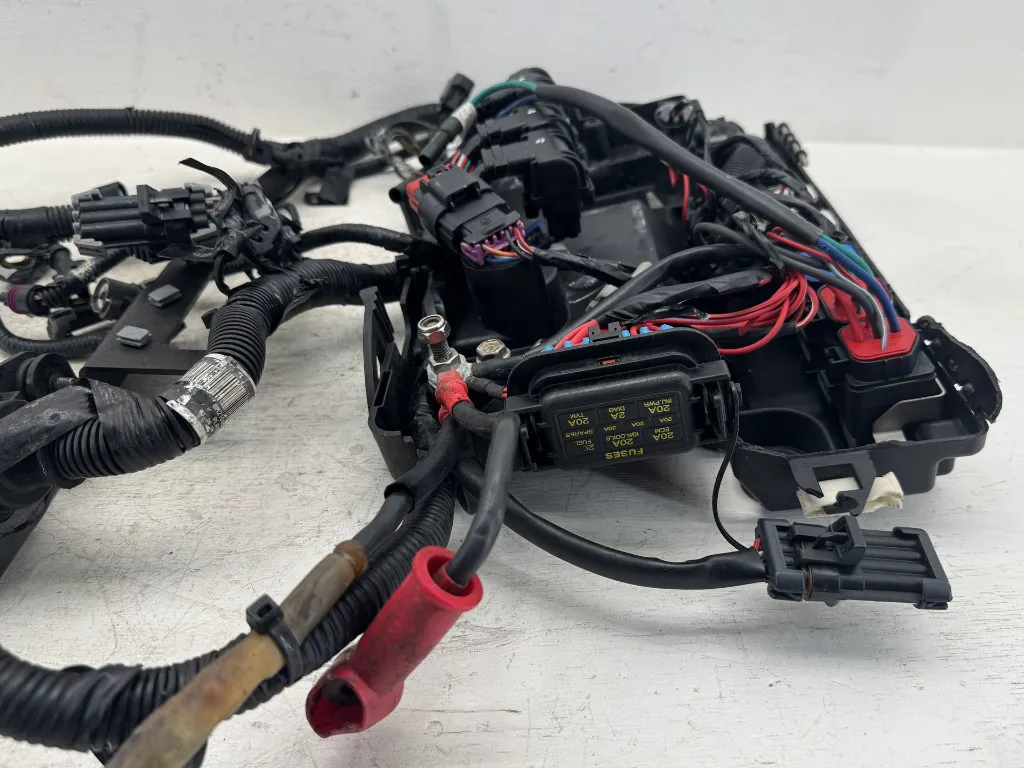

- Fuse / Relay Distribution Box
- Factory Relays & Fuses as Shown
- Heavy-Gauge Power Wiring

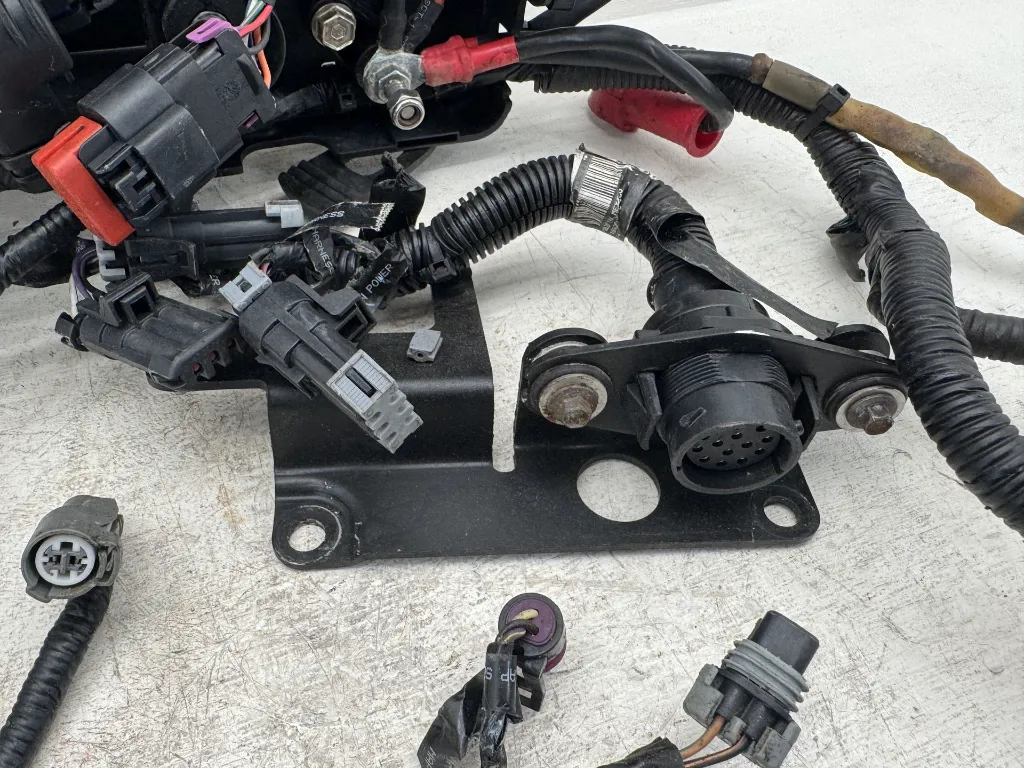

- Bulkhead / Main Harness Connector
- Multiple Factory Sensor Connectors
- Multiple Engine Component Connectors
- Factory Wiring Loom & Protective Conduit
- Mounting Brackets / Hardware as Shown
- Complete Take-Off Assembly
- Sold Exactly as Pictured
Condition
Used OEM condition with normal wear from previous marine use, installation, and removal.
The assembly shows dirt, cosmetic wear, oxidation on some terminals and hardware, tape/wrap repairs, and other age-related wear. Due to the size and complexity of this harness, all wiring, connectors, terminals, plugs, relays, fuses, and repaired/wrapped areas should be carefully inspected in the photos prior to purchase.
No individual component or connector is guaranteed beyond what is shown in the listing photos.
Specifications
Manufacturer: Mercury Marine
Application: Marine Engine
Engine Size: 7.0L
Part Type: Complete Engine Wiring Harness Assembly
Includes: Main Harness / Fuse & Relay Distribution Box / Power Wiring / Bulkhead Connector / Associated Wiring & Connectors
Condition: Used OEM
SKU: 10772
Compatibility
Exact individual Mercury part numbers are not visible, and Mercury used different harness configurations depending on engine model, serial range, and application.
Buyer must verify compatibility using their engine serial number, existing harness configuration, connector styles, pin counts, wiring layout, and listing photos before purchasing.
Please do not purchase based solely on the 7.0L engine designation.
