OEM MerCruiser Bravo Gimbal Housing Transom Assembly w/ Trim Cylinders & Steering

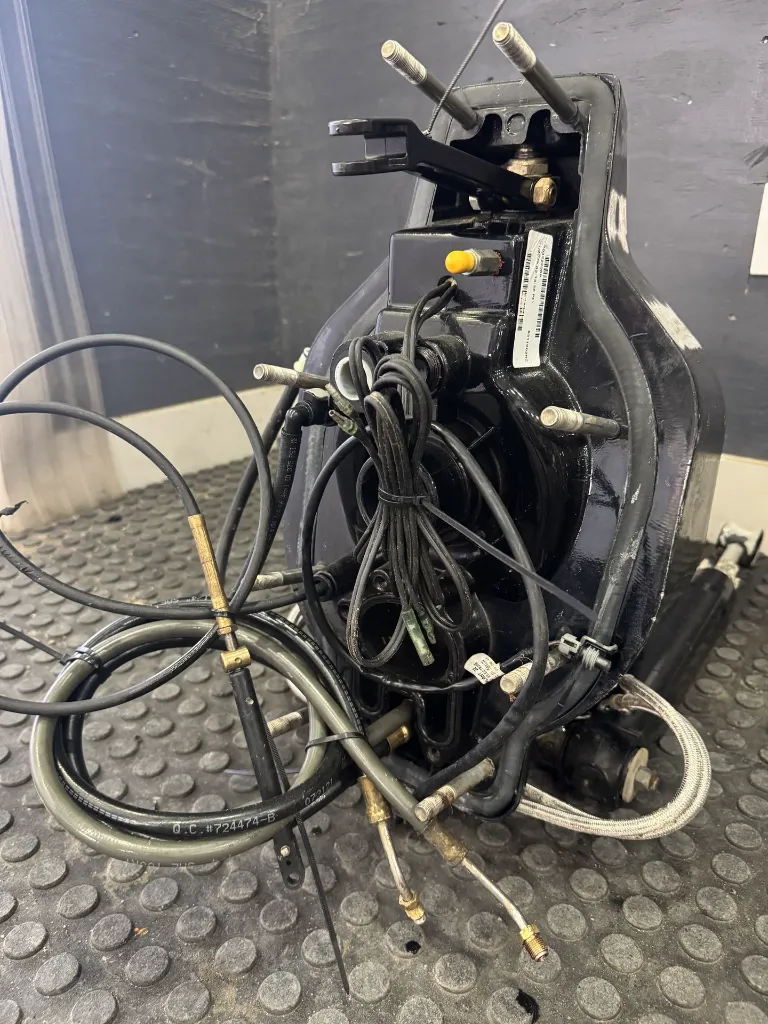

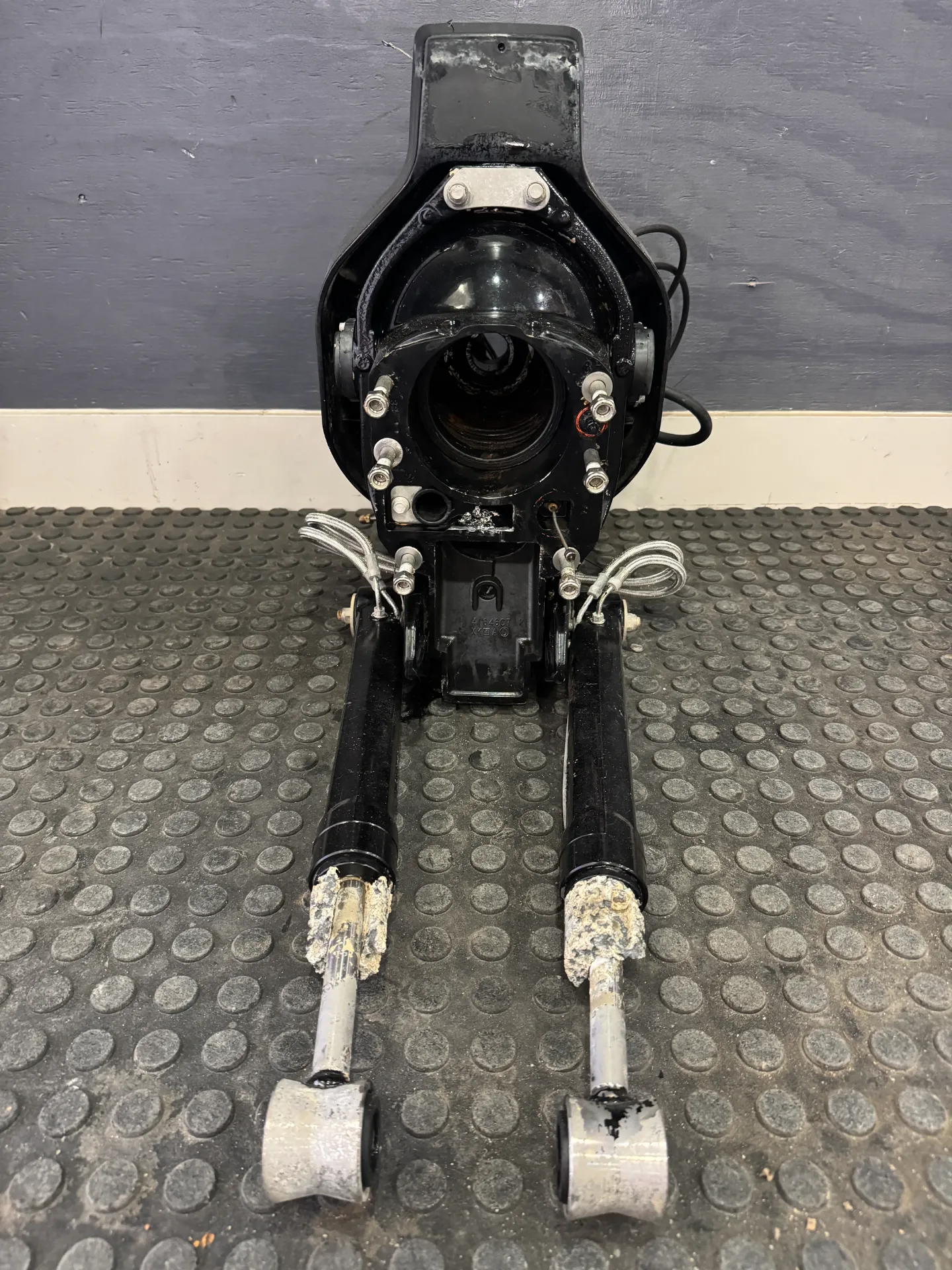

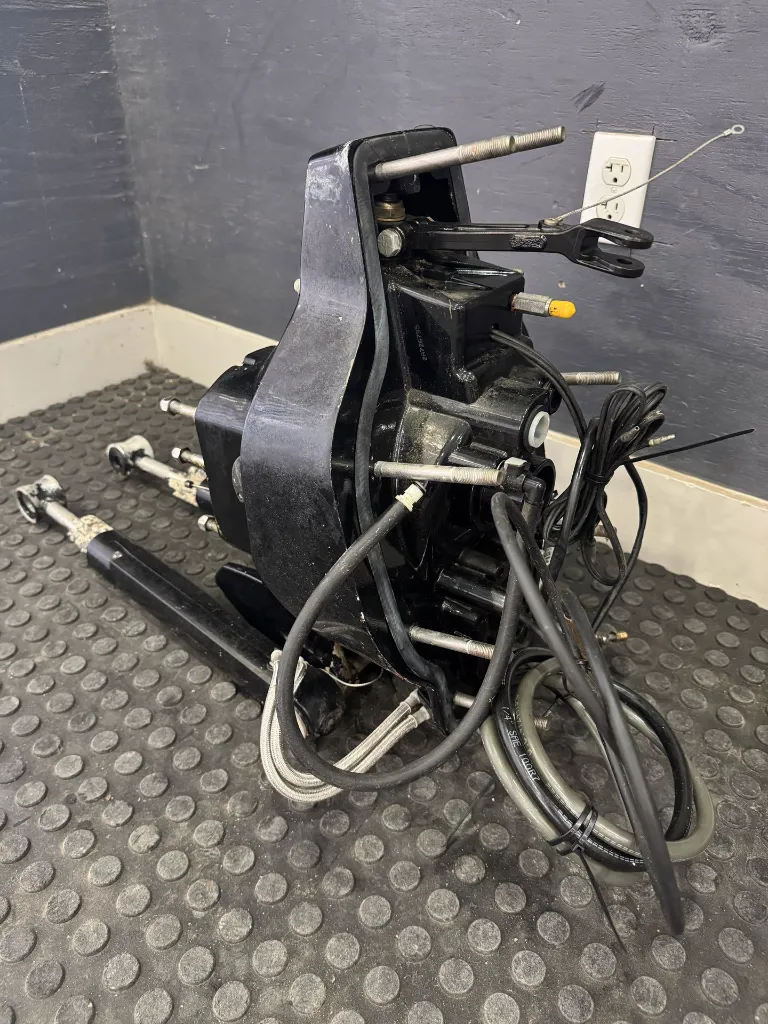

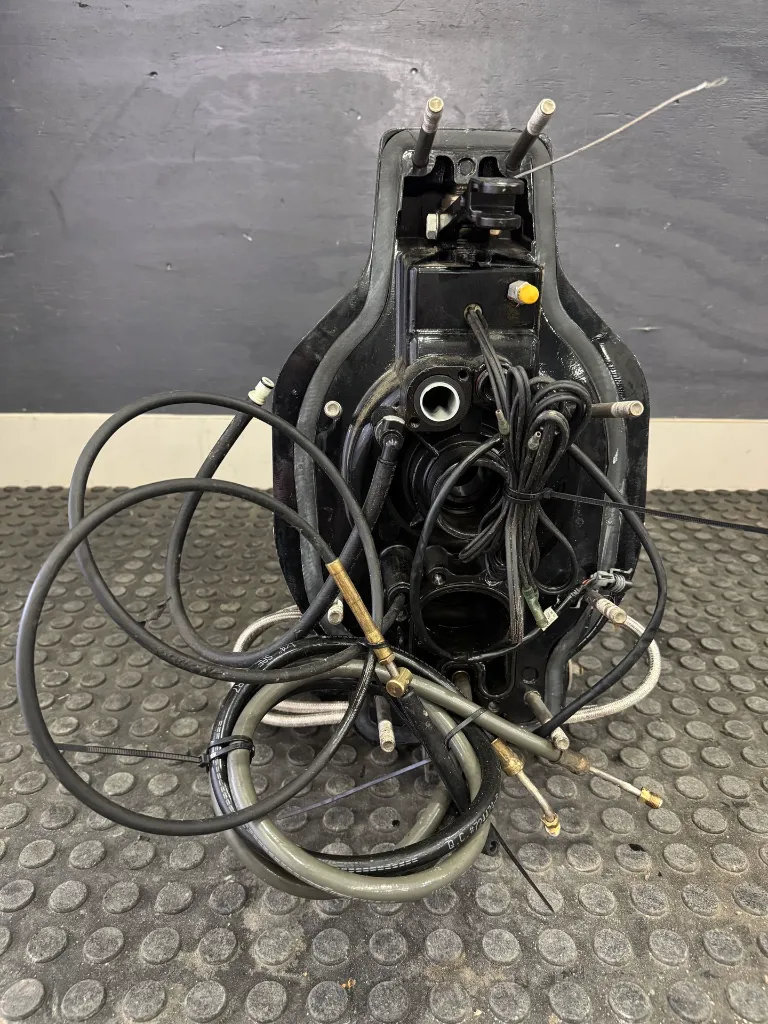

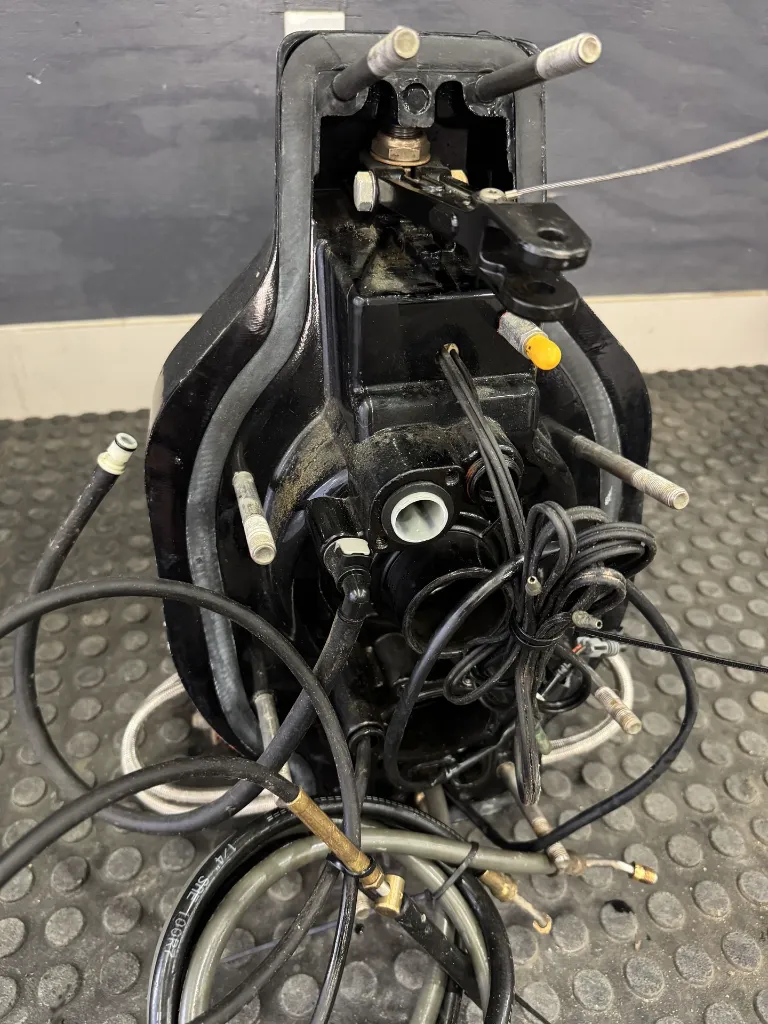

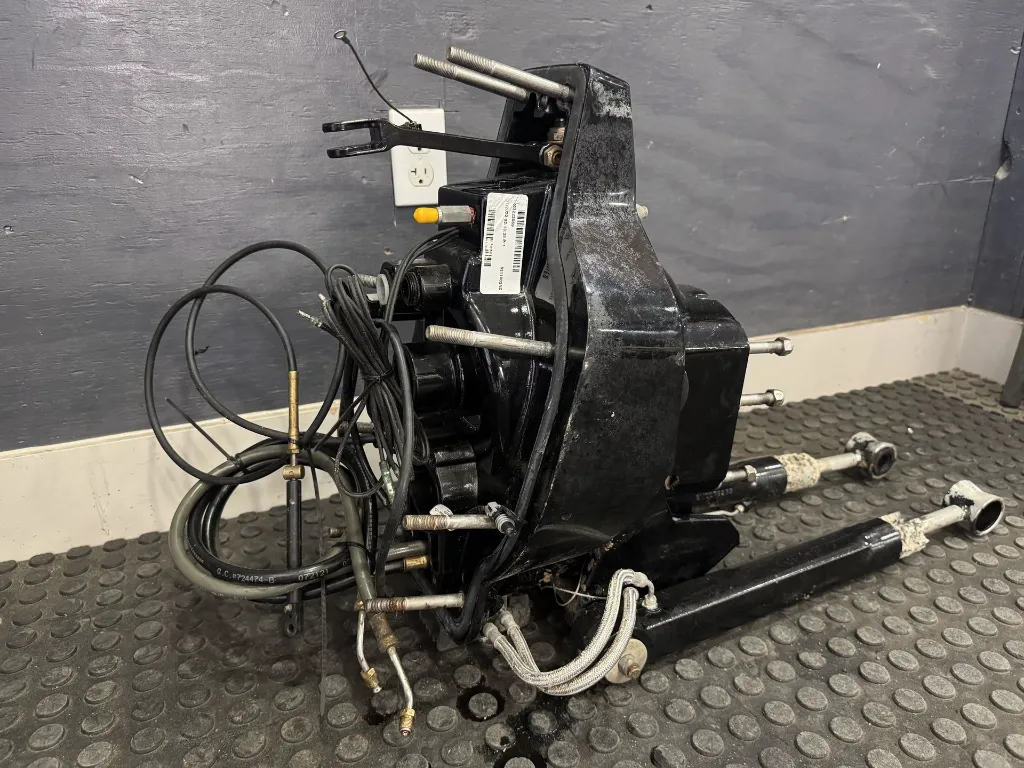

Genuine OEM Mercury MerCruiser Bravo complete gimbal housing and transom assembly. This assembly includes the gimbal housing, steering arm and pivot components, dual hydraulic trim cylinders, hydraulic hoses, wiring/sender leads, shift cable, mounting studs, and associated hardware exactly as pictured.
This complete OEM assembly is an excellent replacement for a damaged or corroded Bravo transom assembly or can be used as a foundation for a sterndrive rebuild.
Highlights
- Genuine OEM Mercury MerCruiser
- Bravo Sterndrive Application
- Complete Gimbal Housing / Transom Assembly
- Dual Hydraulic Trim Cylinders / Trim Rams
- Steering Arm & Pivot Components
- Hydraulic Trim Hoses
- Shift Cable
- Wiring Harness / Sender Leads
- Mounting Studs
- Associated Hardware Included
- Original Black MerCruiser Finish
- Housing Appears Structurally Intact
- No Obvious Cracks or Major Impact Damage
- Sold Exactly as Pictured
Condition
Good overall used OEM condition with normal cosmetic wear from previous marine service.

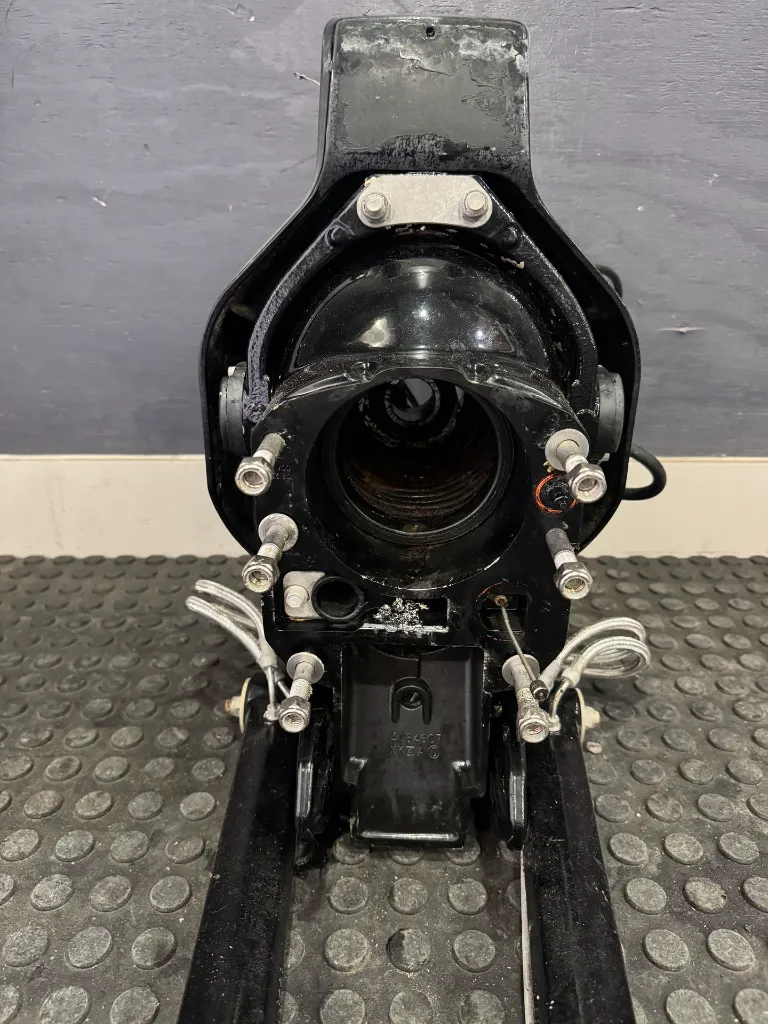

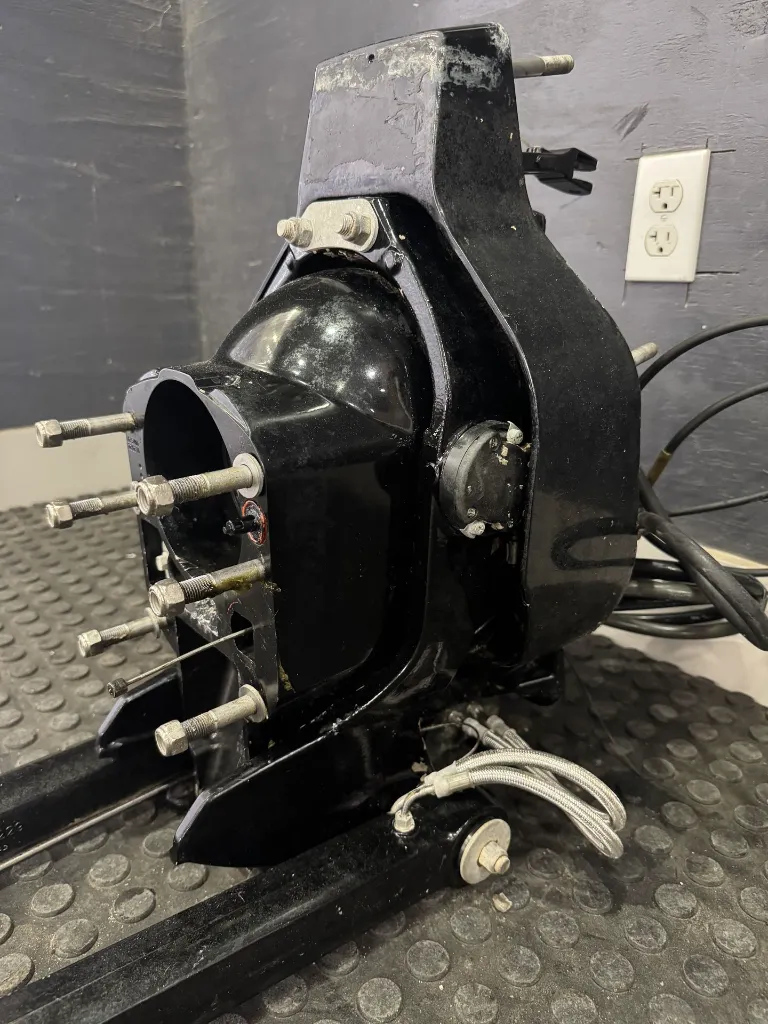

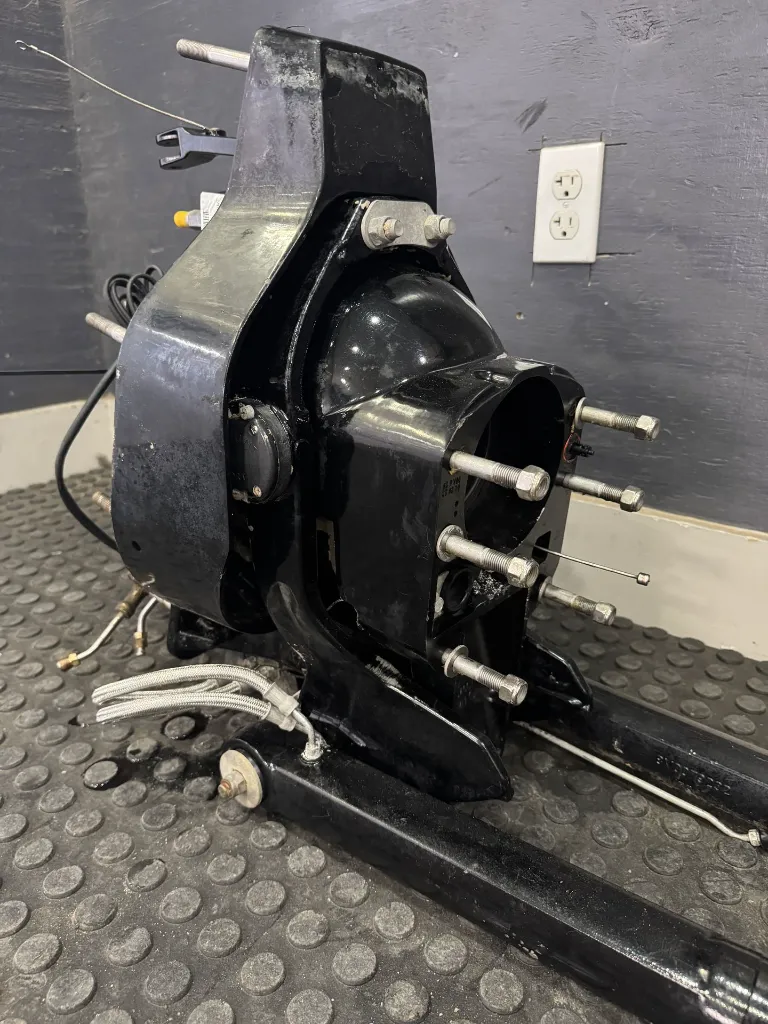

The gimbal housing appears structurally intact with no obvious cracks or major impact damage. The mounting studs and visible steering components appear intact.

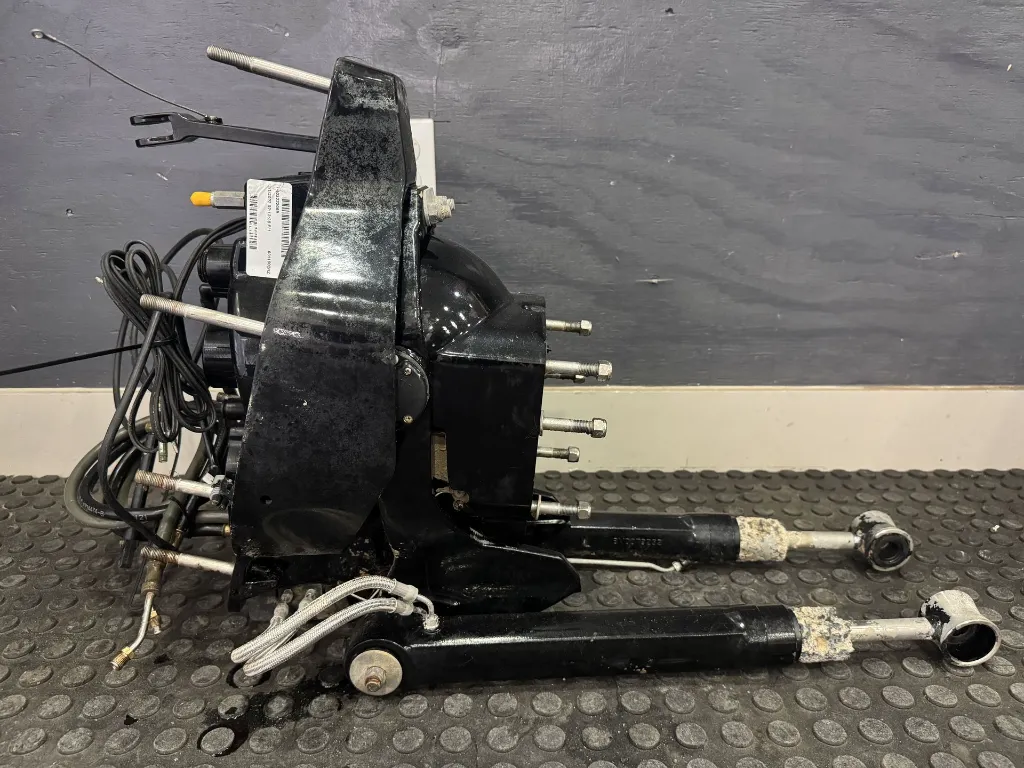

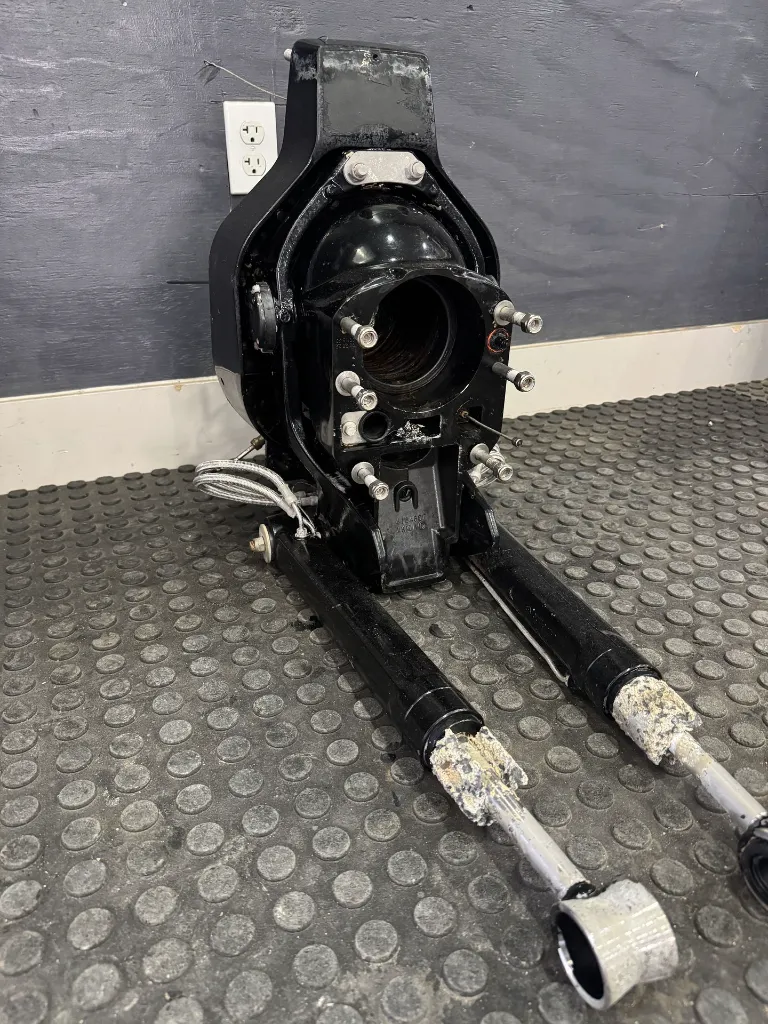

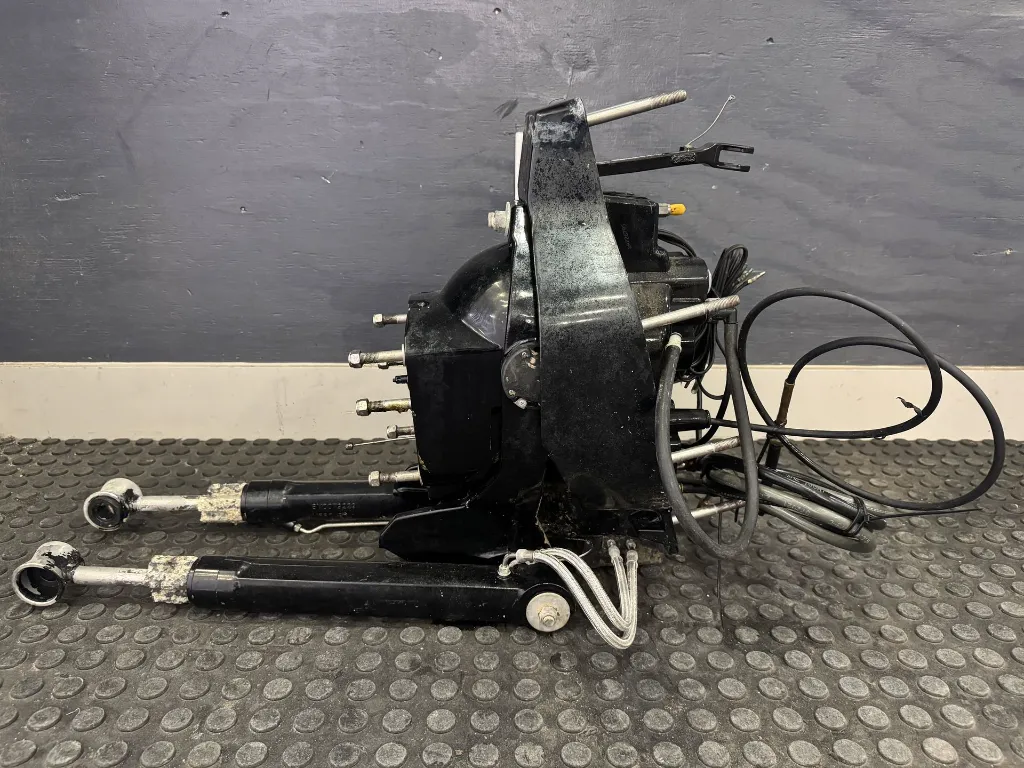

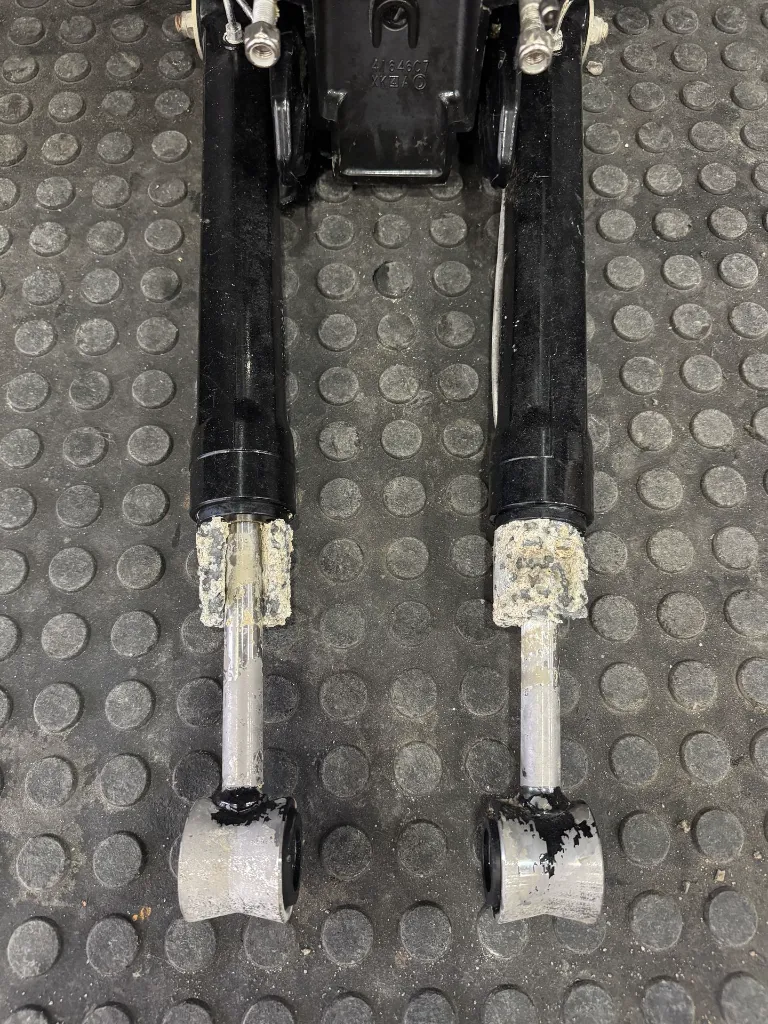

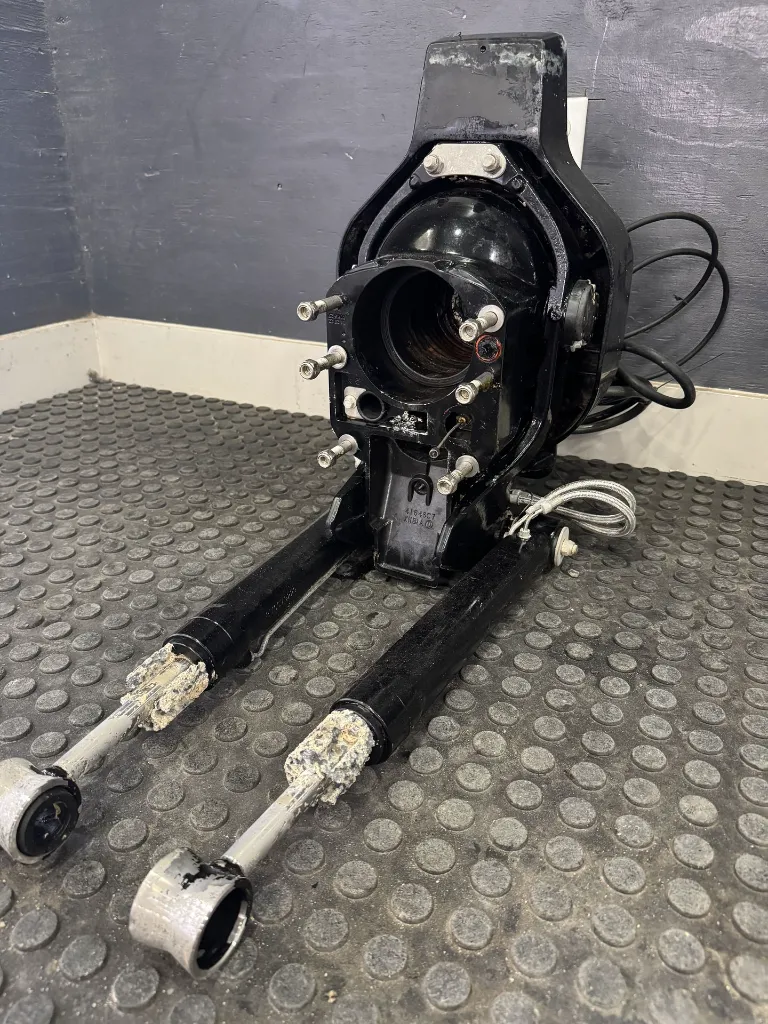

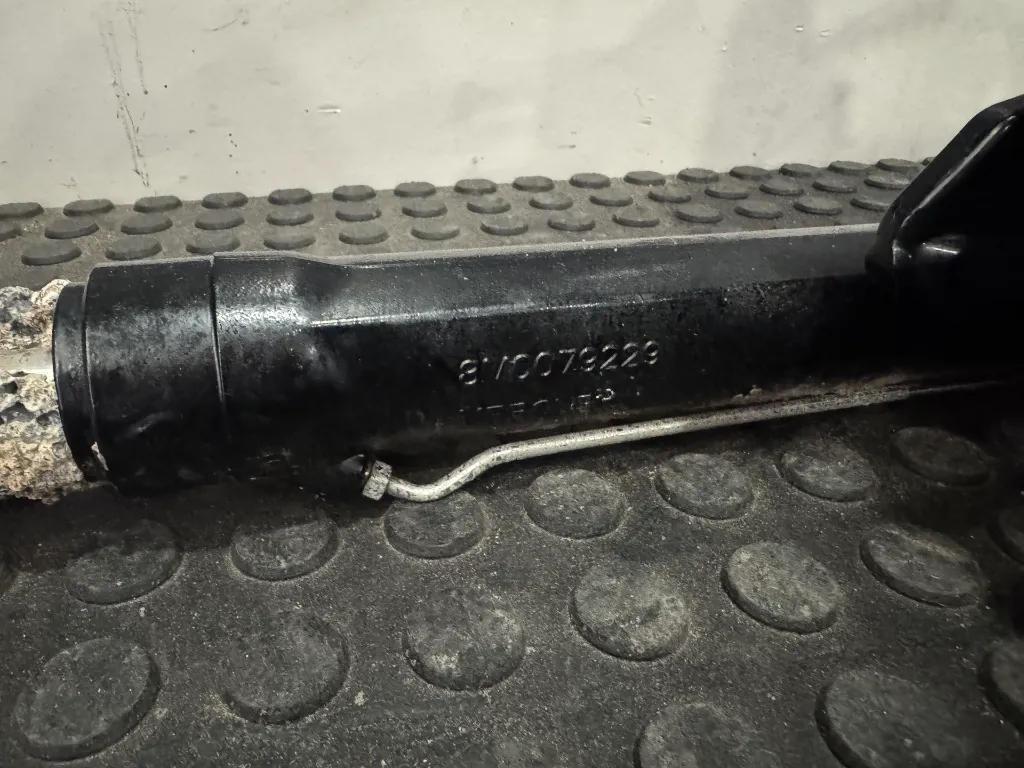

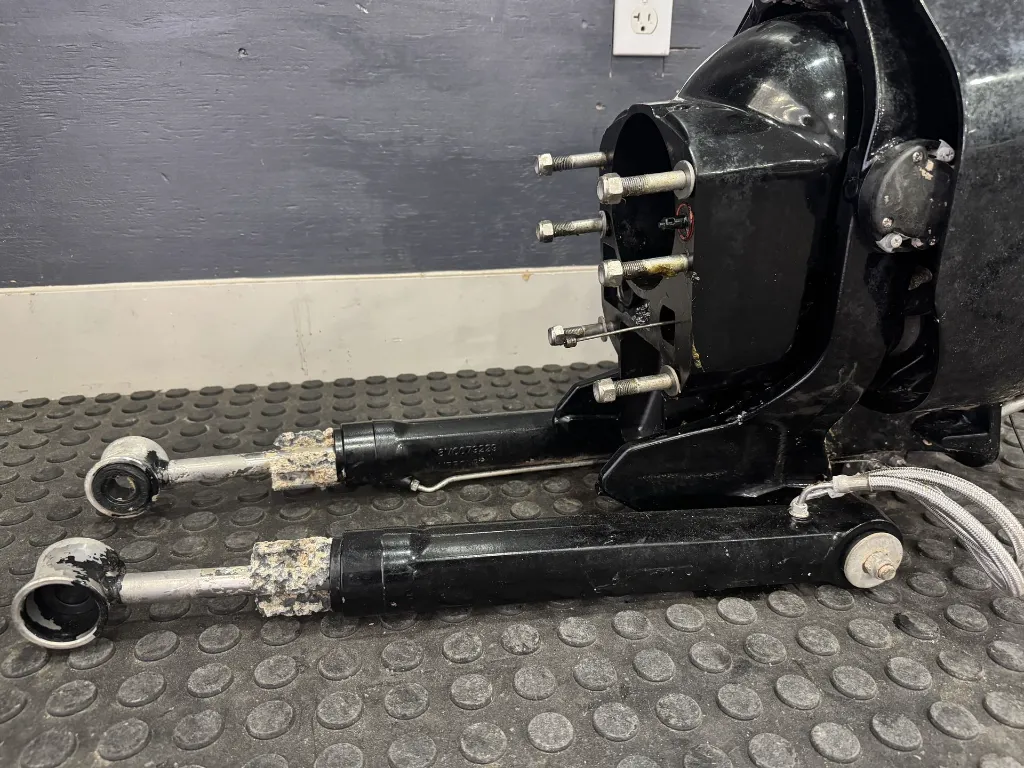

Both hydraulic trim cylinders are included. The exposed trim ram ends show visible marine buildup, oxidation, and corrosion, along with normal scratches, scuffs, paint wear, and other cosmetic signs of previous use.
As with any used transom assembly, the bellows, gimbal bearing, seals, shift cable, trim hoses, sender components, and other wearable/service items should be inspected and replaced as necessary before installation.
Please review all photos carefully for the exact condition and components included.
Compatibility
Designed for MerCruiser Bravo sterndrive applications. Exact compatibility can vary depending on the engine package, drive model, production year, and transom assembly configuration.
Buyer should verify casting numbers, mounting pattern, steering configuration, trim system, and overall design against their existing assembly before purchasing.
Dealer Sale – Sunset Marine TX LLC
SKU: 10702
