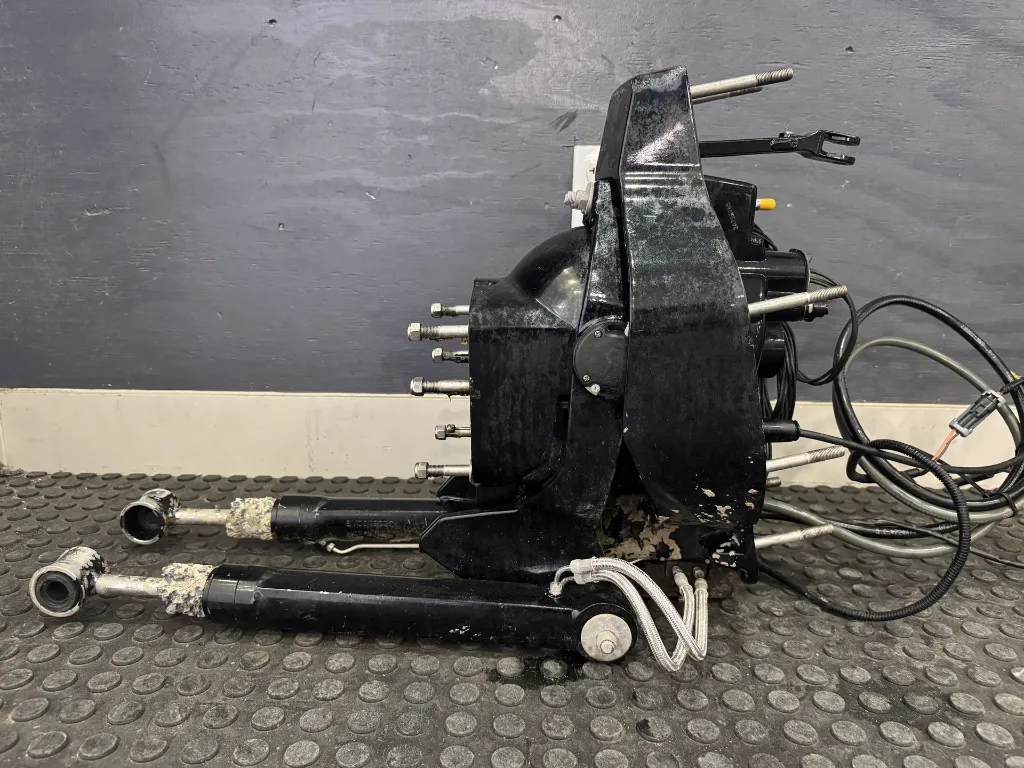

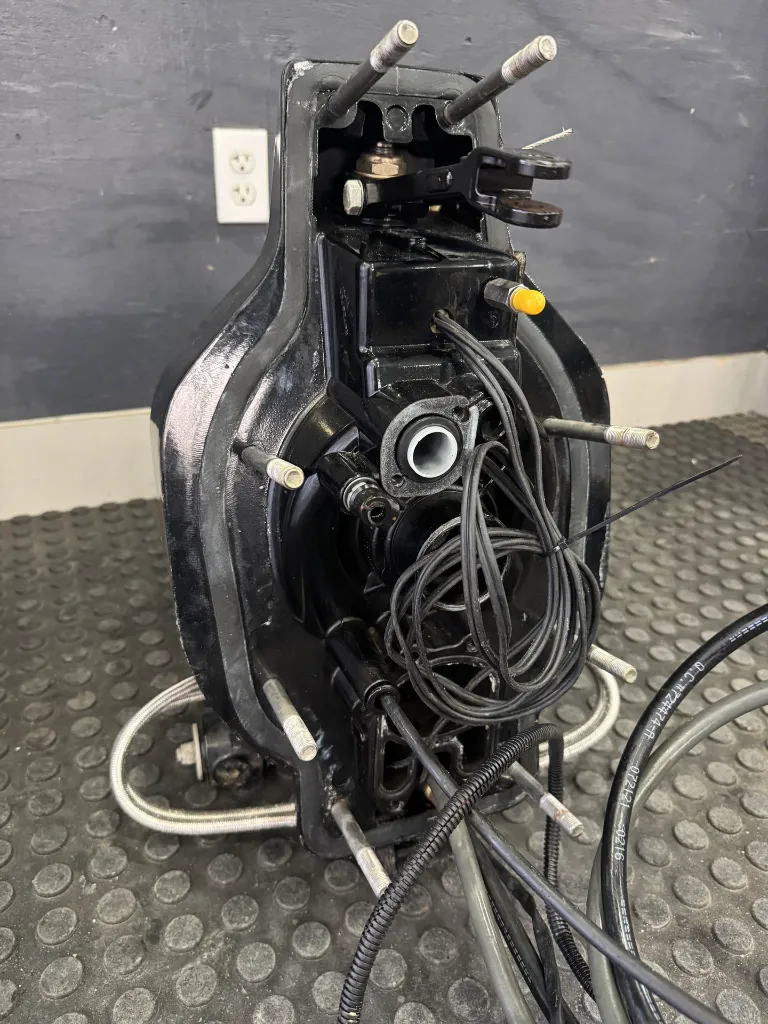

OEM MerCruiser Bravo Gimbal Housing Transom Assembly w/ Trim Cylinders & Steering

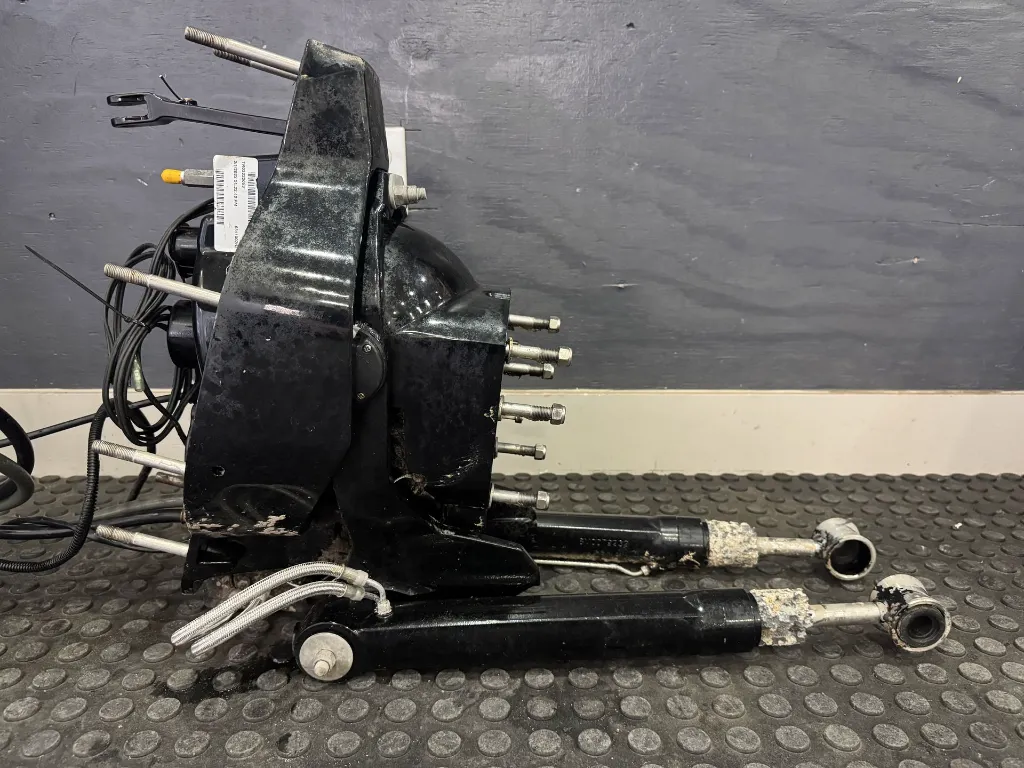

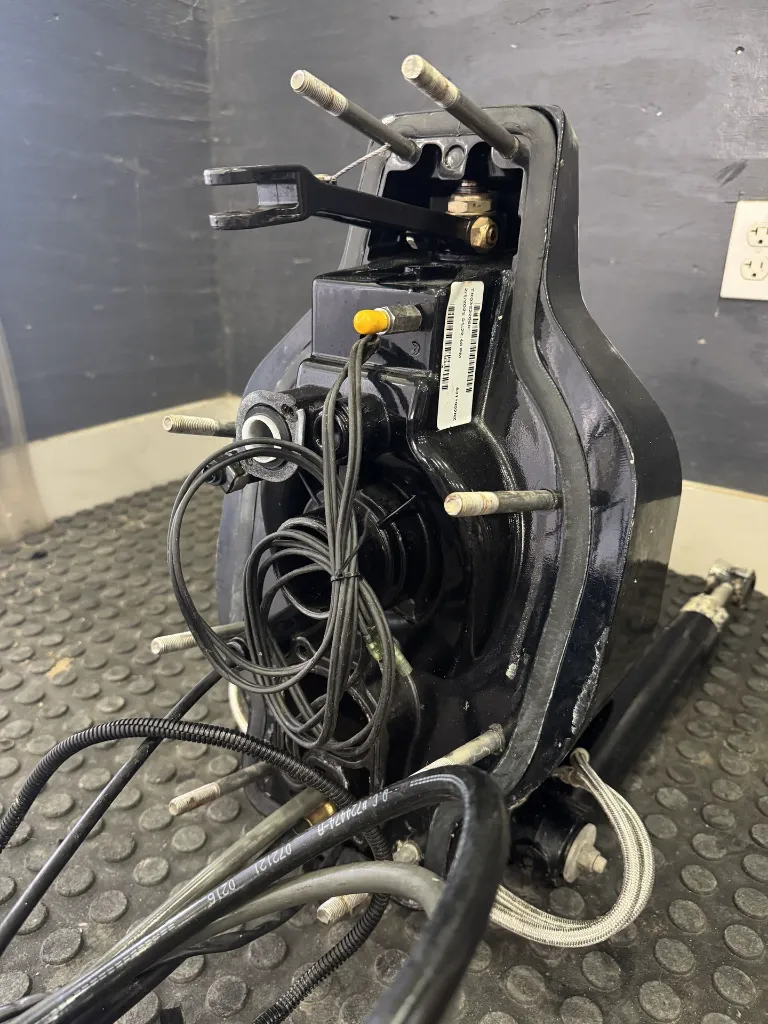

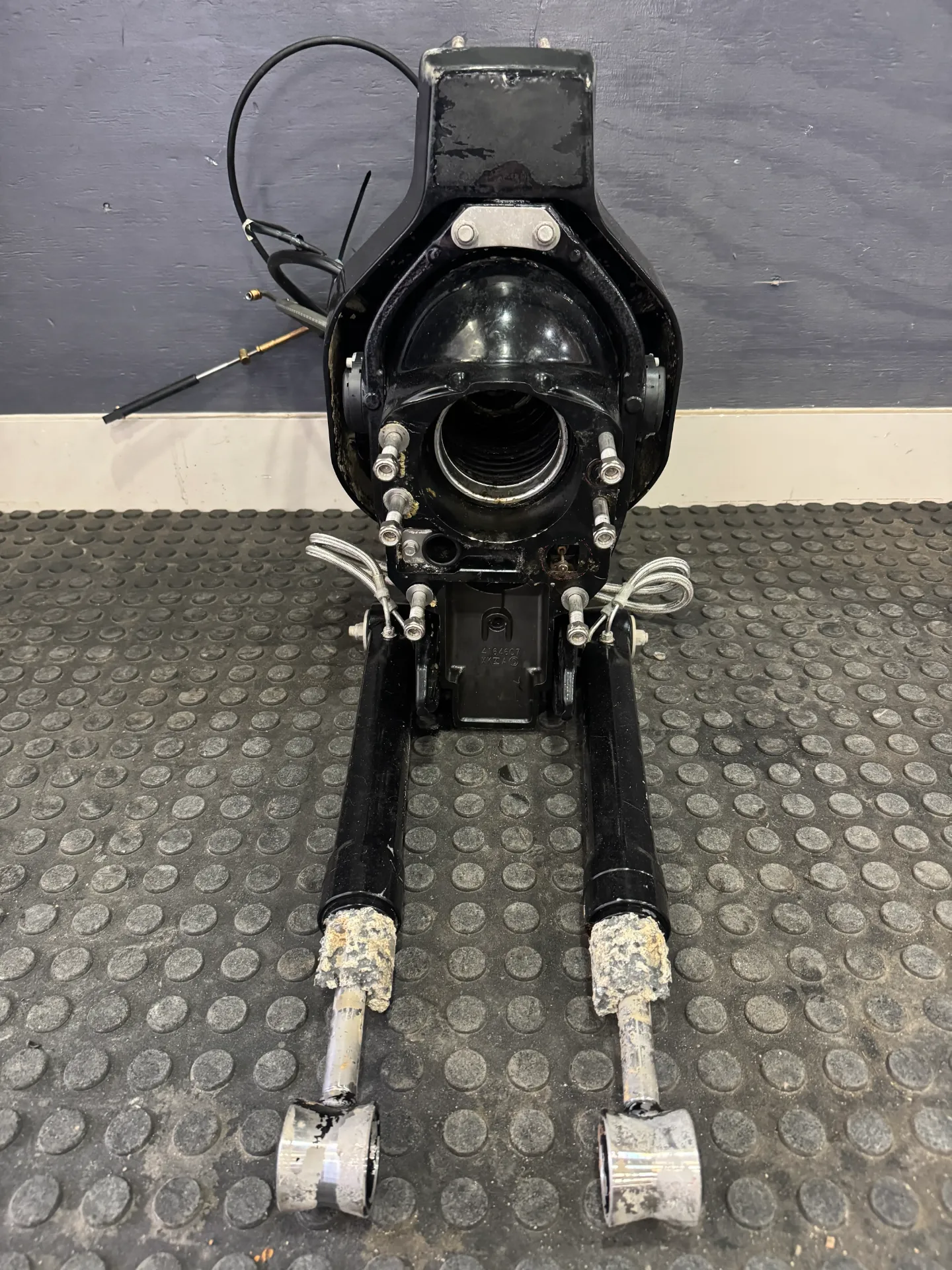

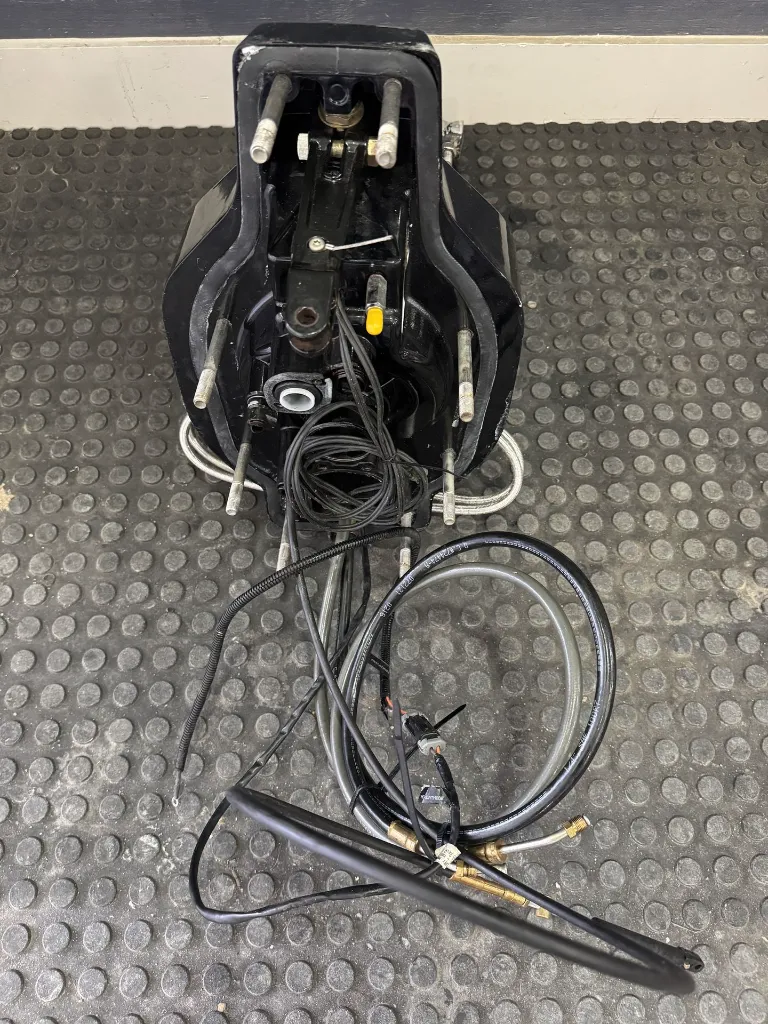

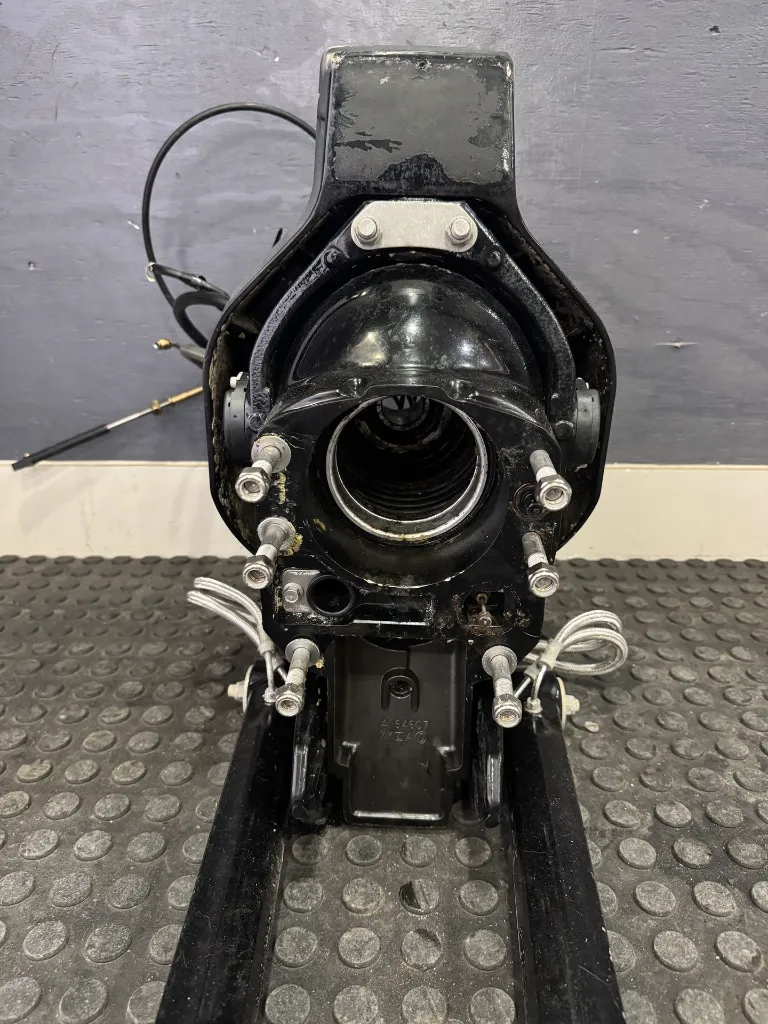

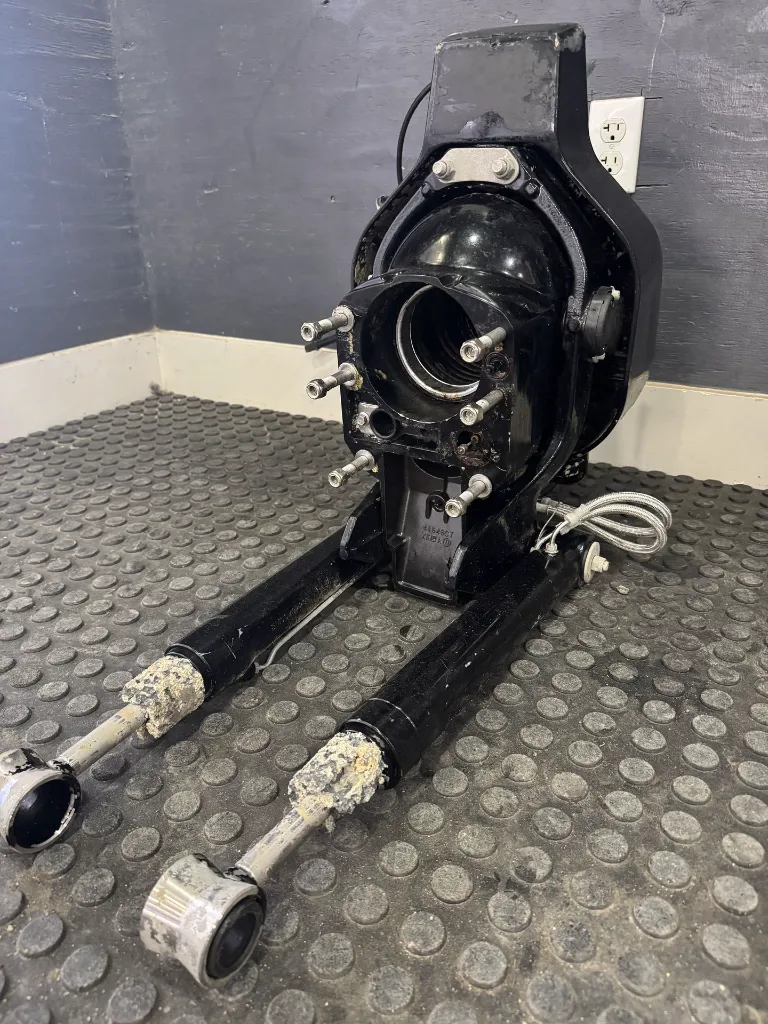

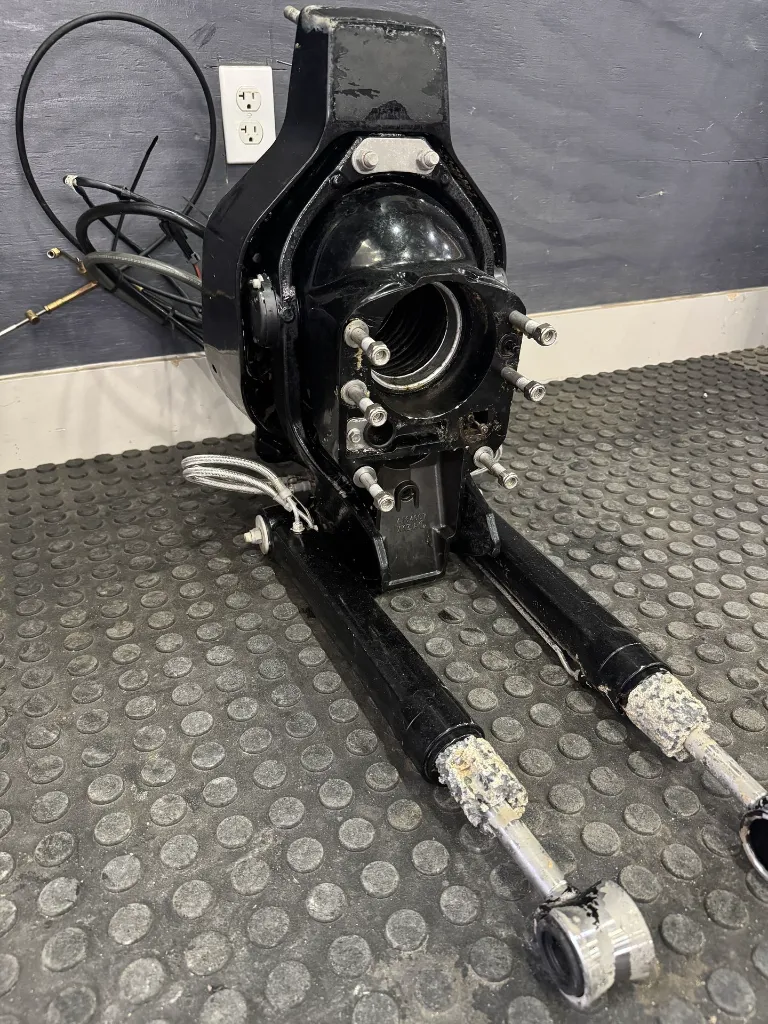

Genuine OEM Mercury MerCruiser Bravo complete gimbal housing and transom assembly. This assembly includes the gimbal housing, steering arm and pivot components, dual hydraulic trim cylinders, hydraulic hoses, wiring/sender leads, shift cable, mounting studs, and associated hardware exactly as shown.
This is a complete used OEM assembly suitable as a replacement for a damaged or corroded Bravo transom assembly or as a foundation for a rebuild.
Highlights
- Genuine OEM Mercury MerCruiser
- Bravo Sterndrive Application
- Complete Gimbal Housing / Transom Assembly
- Gimbal Housing
- Steering Arm & Pivot Assembly
- Dual Hydraulic Trim Cylinders / Trim Rams
- Hydraulic Trim Hoses
- Shift Cable
- Wiring & Sender Leads
- Mounting Studs
- Associated Hardware Included
- Original Black MerCruiser Finish
- No Obvious Cracks or Major Impact Damage
- Sold Exactly as Pictured
Condition
Good overall used OEM condition with normal cosmetic wear from previous marine service.
The housing appears structurally intact with no obvious cracks or major impact damage, and the mounting studs and steering components appear intact.

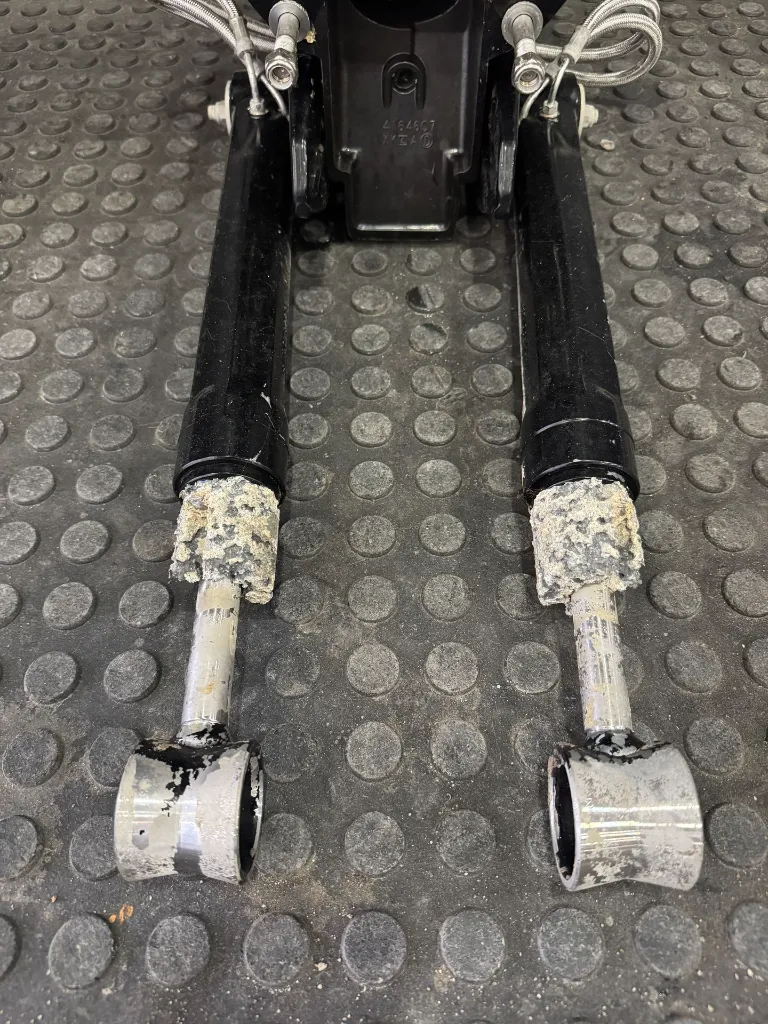

The trim cylinders are included and show visible corrosion/marine buildup on the exposed rod-end areas, along with paint loss, scratches, scuffs, oxidation, and other age-related cosmetic wear.
As with any used sterndrive transom assembly, the bellows, gimbal bearing, seals, shift cable, trim hoses, and other wearable/service components should be inspected and replaced as necessary before installation.
Please review all photos carefully for the exact condition and components included.
Compatibility
Designed for MerCruiser Bravo sterndrive applications. Exact compatibility can vary by drive generation, engine package, and production year.
Buyer should compare casting numbers, mounting configuration, steering components, trim system, and overall assembly design with their existing unit before purchasing.
Dealer Sale – Sunset Marine TX LLC
SKU: 10701
