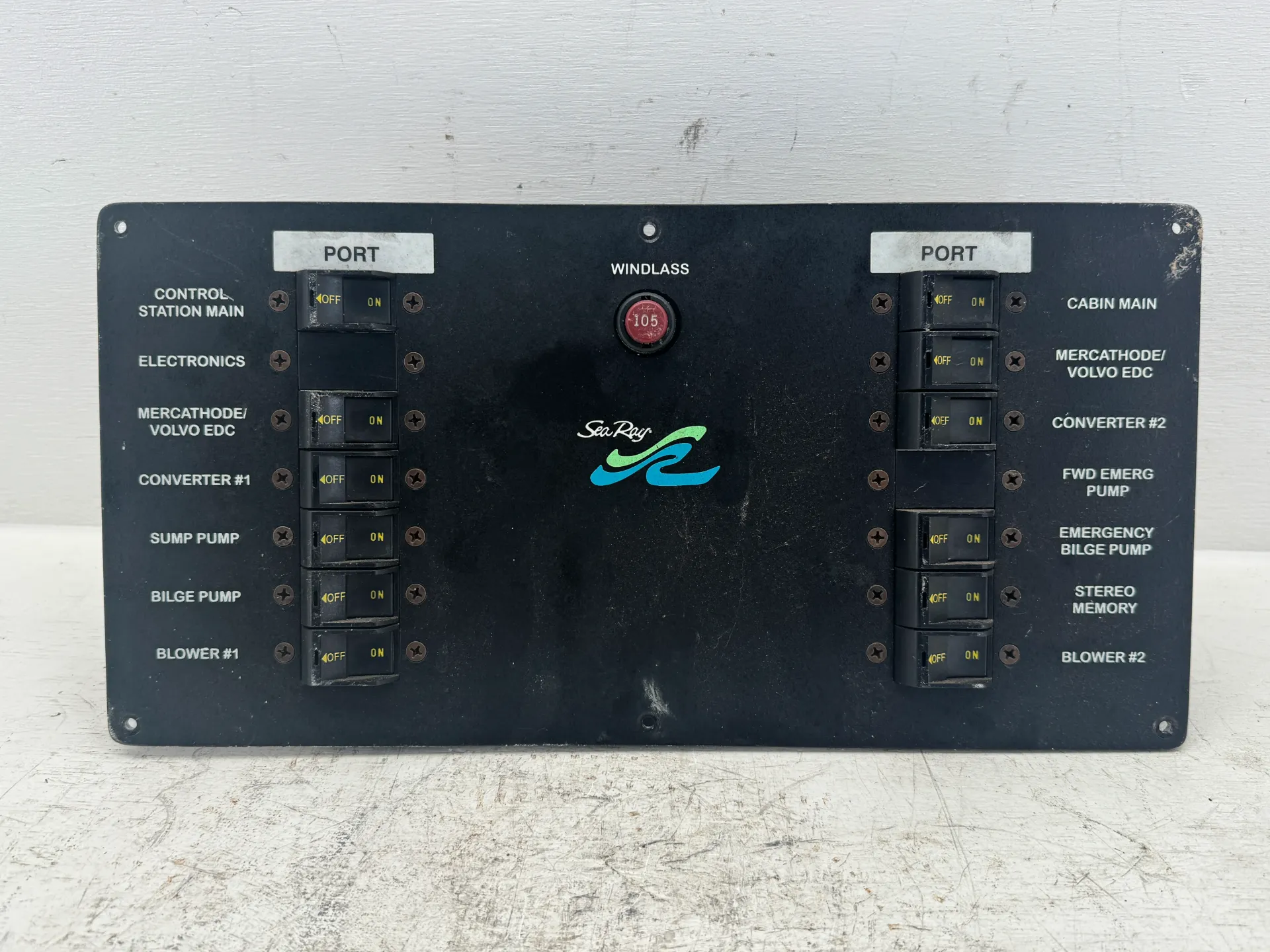

OEM Sea Ray 290 Sundancer 12V DC Electrical Breaker Panel Windlass 2001

Genuine OEM 12-Volt DC electrical distribution / circuit breaker panel removed from a 2001 Sea Ray 290 Sundancer.

This factory Sea Ray panel features the original 12V DC circuit breakers, Sea Ray faceplate, and 105-amp windlass circuit breaker. It controls multiple essential onboard DC electrical systems and is an excellent OEM replacement for a damaged or missing factory panel.

Includes the panel and installed components exactly as pictured.

Highlights

• Genuine OEM Sea Ray
• Removed From a 2001 Sea Ray 290 Sundancer
• 12-Volt DC Electrical Distribution Panel
• Factory Sea Ray Faceplate
• 105-Amp Windlass Circuit Breaker
• Dual Breaker Banks
• Original DC Circuit Breakers
• Factory Circuit Identification / Labels
• Original Mounting Holes
• Complete Assembly as Pictured
• Excellent OEM Replacement

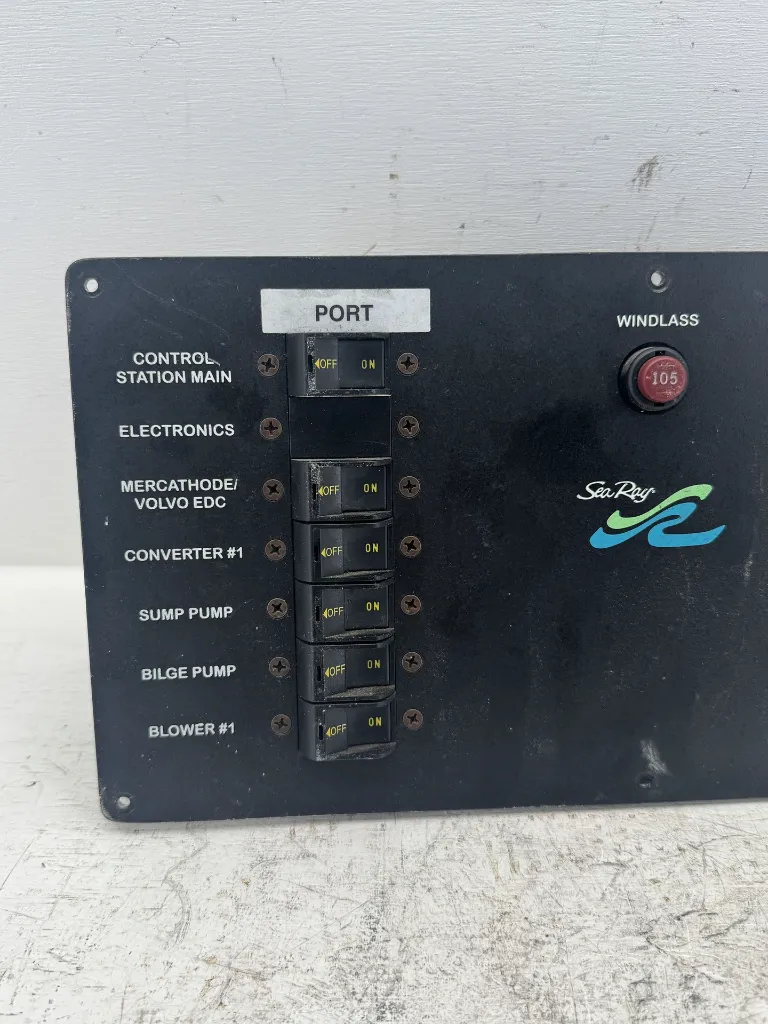

Circuit Labels

• Control Station Main
• Electronics
• Mercathode / Volvo EDC
• Converter #1
• Sump Pump
• Bilge Pump
• Blower #1
• Cabin Main
• Converter #2
• Forward Emergency Pump
• Emergency Bilge Pump
• Stereo Memory
• Blower #2
• Windlass – 105 Amp

Condition

Good overall used OEM condition with normal cosmetic wear consistent with age and previous marine use.

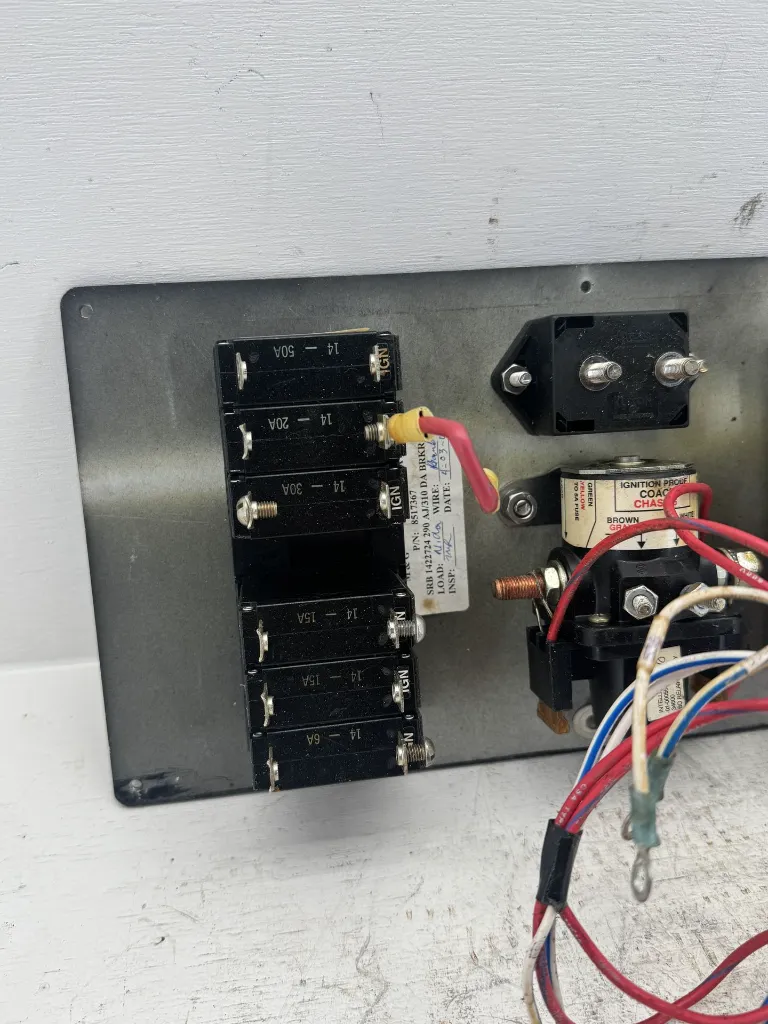

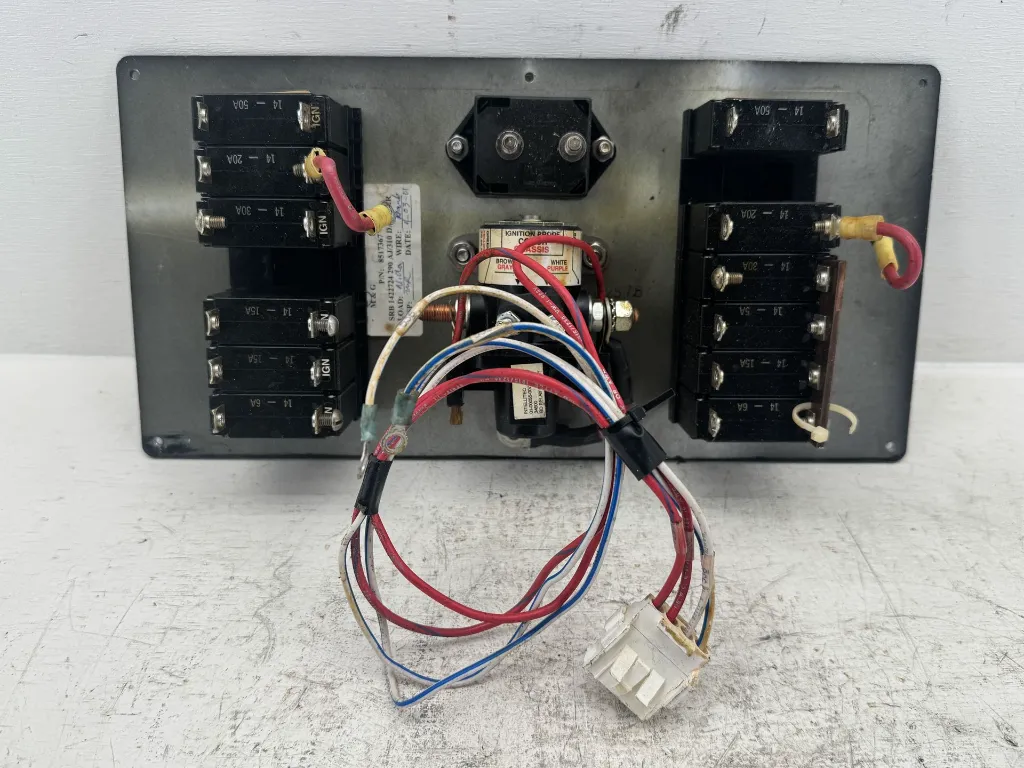

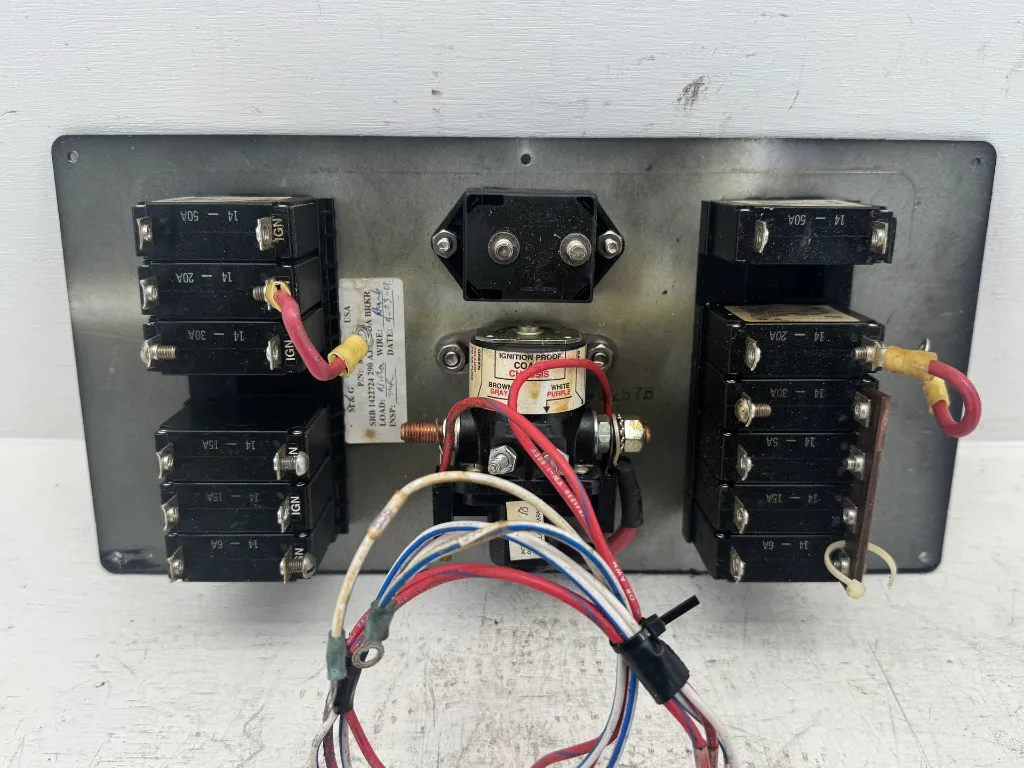

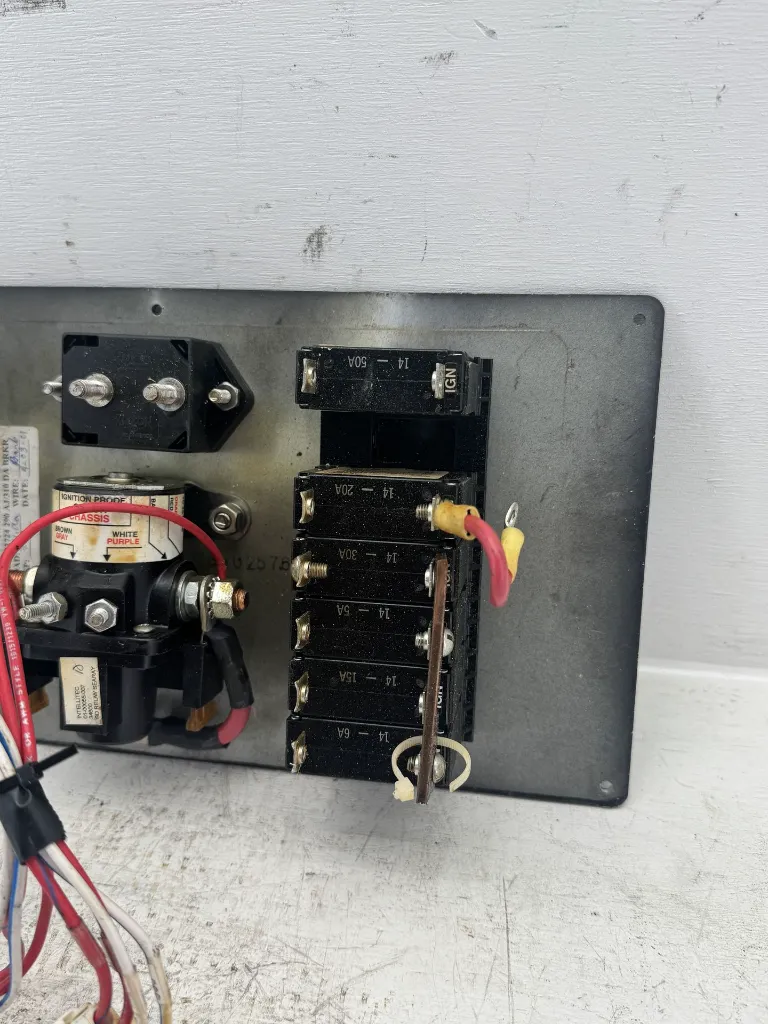

The faceplate shows scratches, scuffs, fading, marks, and surface wear. The breakers and windlass circuit breaker are installed as shown.

Wiring was disconnected during removal, and the panel has not been independently function-tested. Operation of individual breakers and electrical components is not guaranteed.

Please review all photos carefully for exact condition and components included. Sold exactly as pictured.

Specifications

Manufacturer: Sea Ray

Original Boat: 2001 Sea Ray 290 Sundancer

Type: DC Electrical Distribution / Circuit Breaker Panel

Voltage: 12V DC

Windlass Breaker: 105 Amp

Circuit Type: Marine DC Electrical

Condition: Used / Untested

Compatibility

Removed from a 2001 Sea Ray 290 Sundancer. Compatibility with other Sea Ray models and model years is not guaranteed.

Buyer should verify panel dimensions, mounting-hole locations, breaker ratings, circuit configuration, wiring connections, and vessel compatibility before purchasing.

Professional marine electrical installation is recommended.
