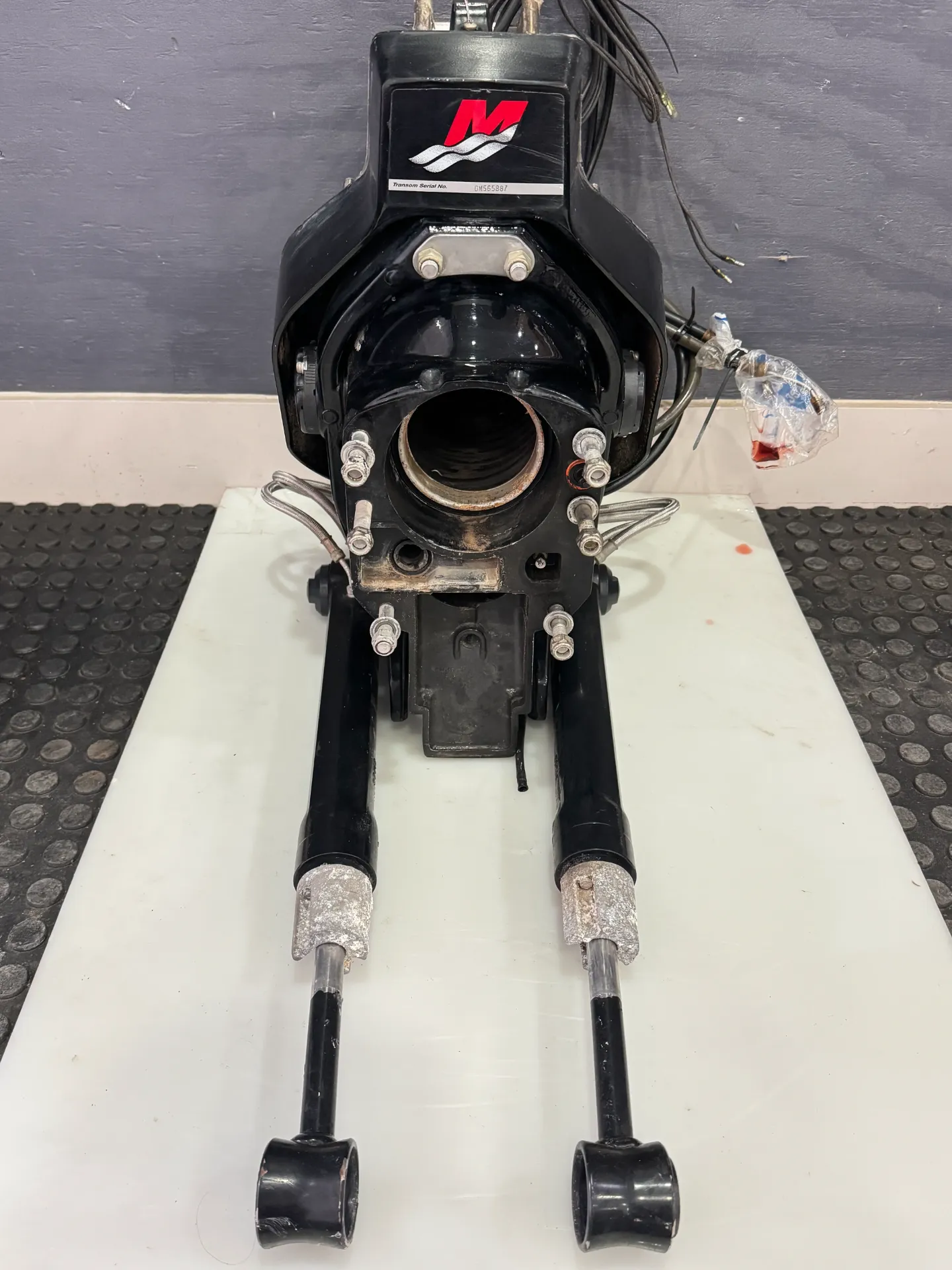

OEM Mercury MerCruiser Bravo Complete Transom Assembly Gimbal Housing Trim Rams

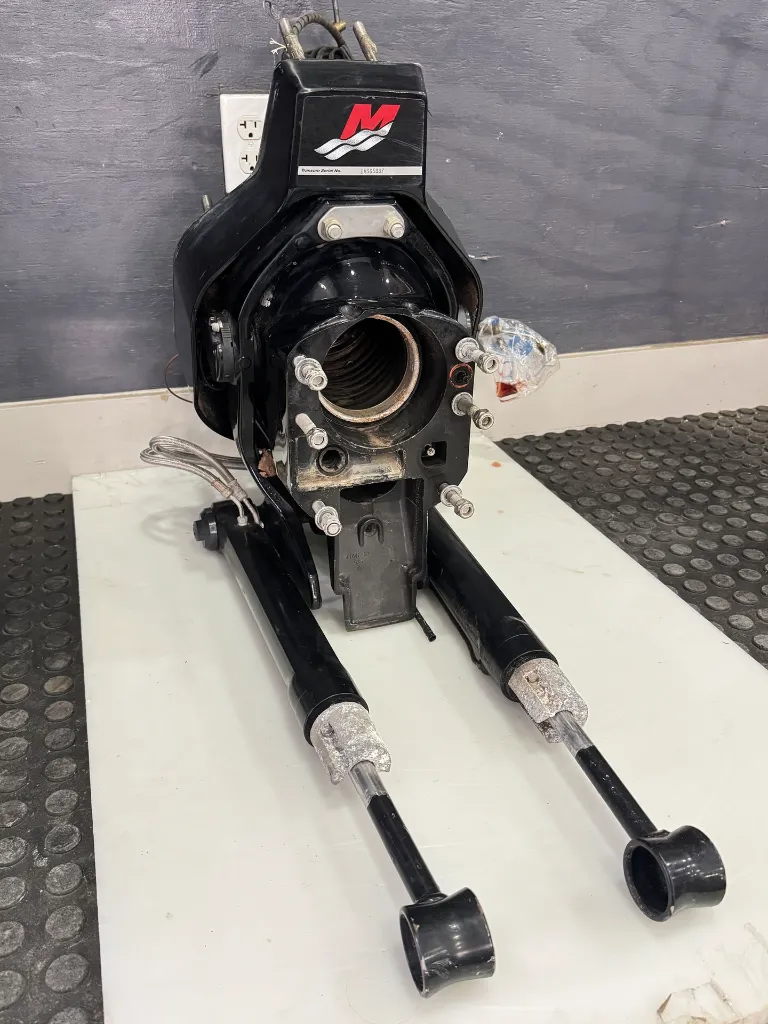

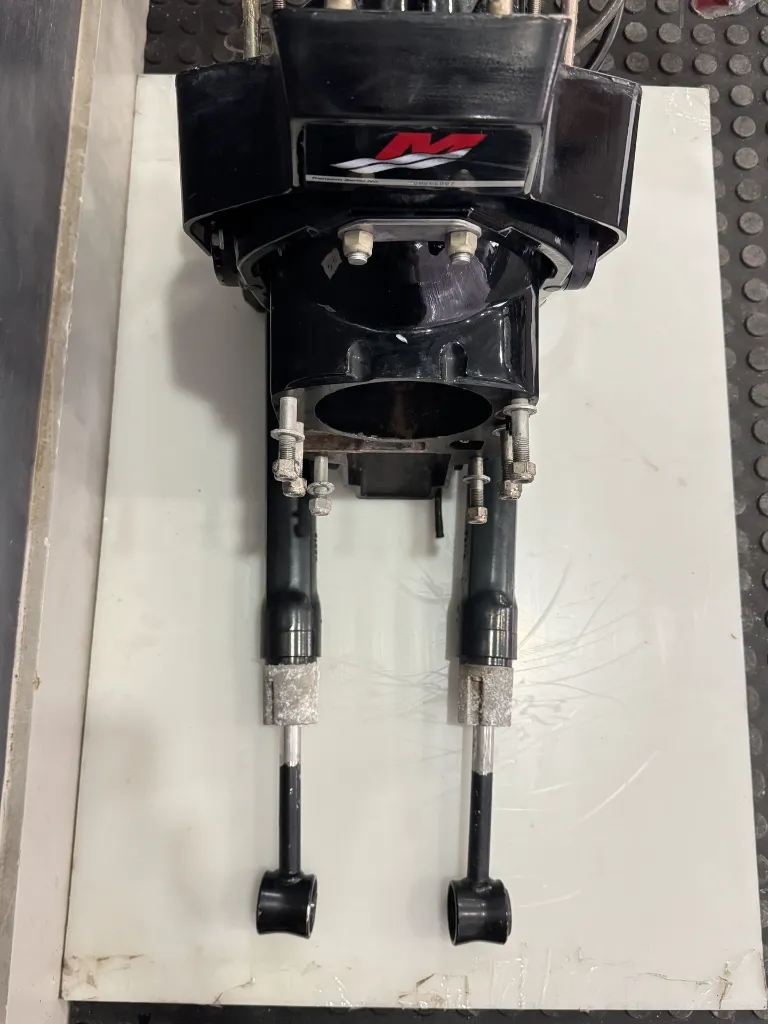

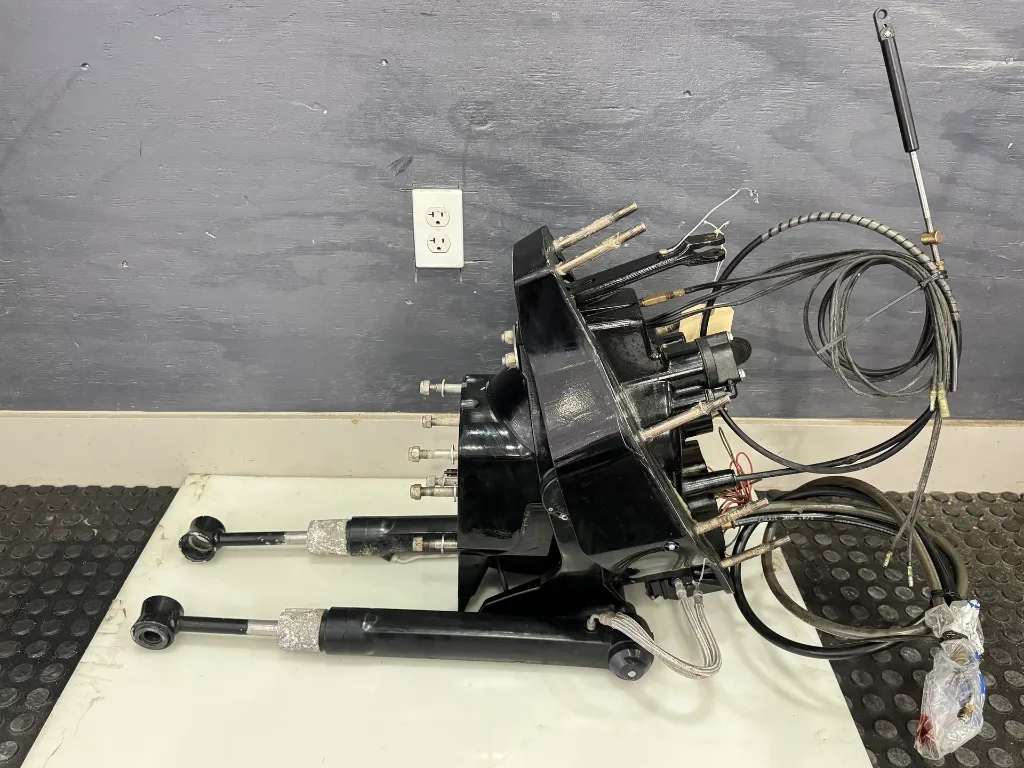

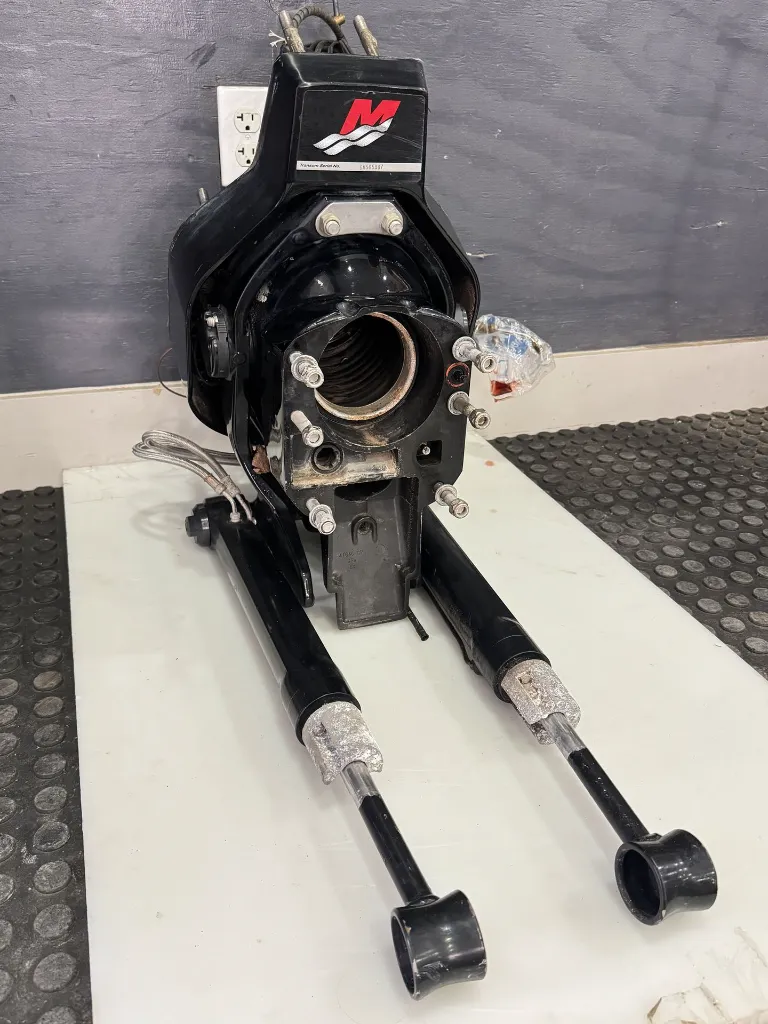

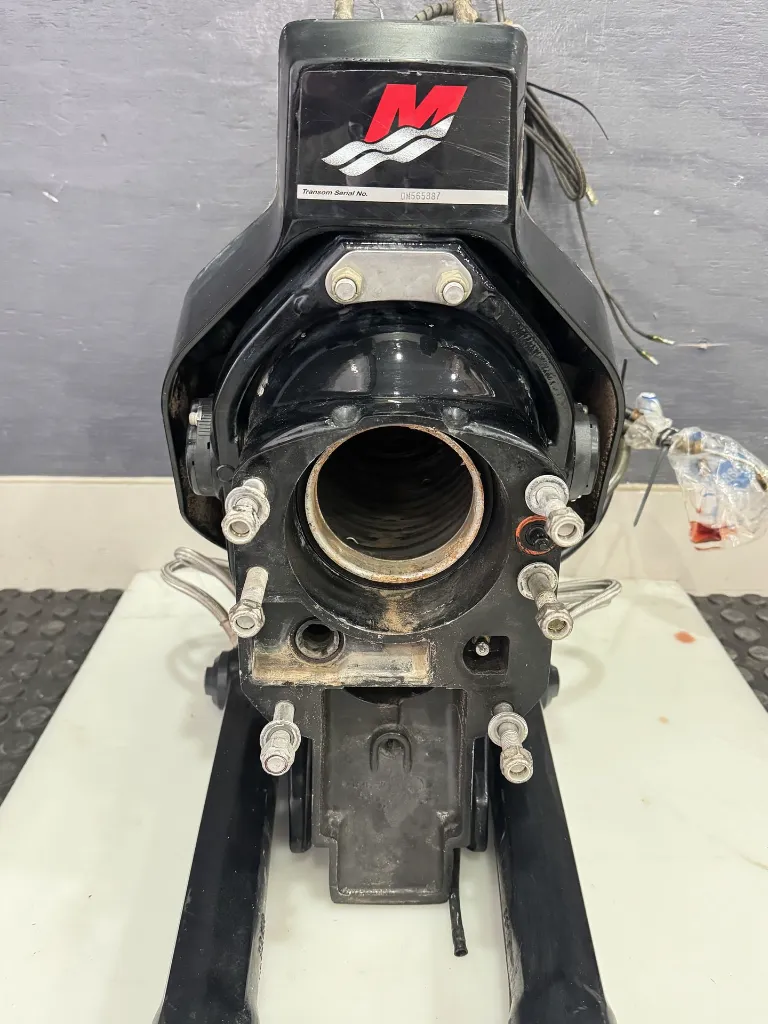

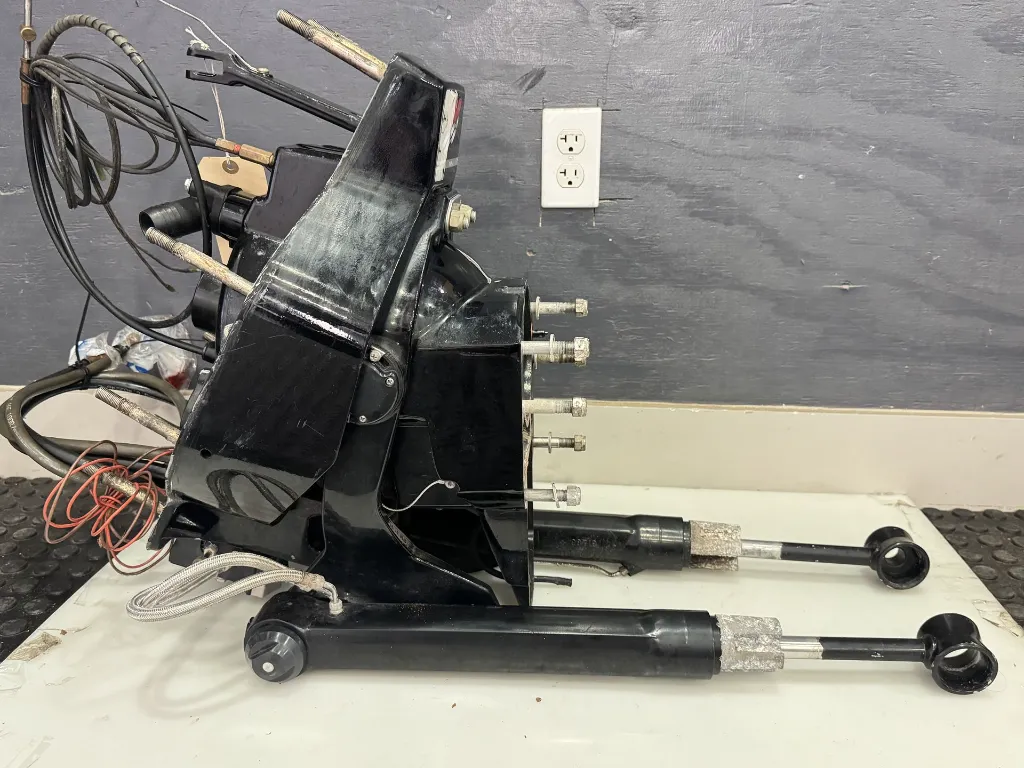

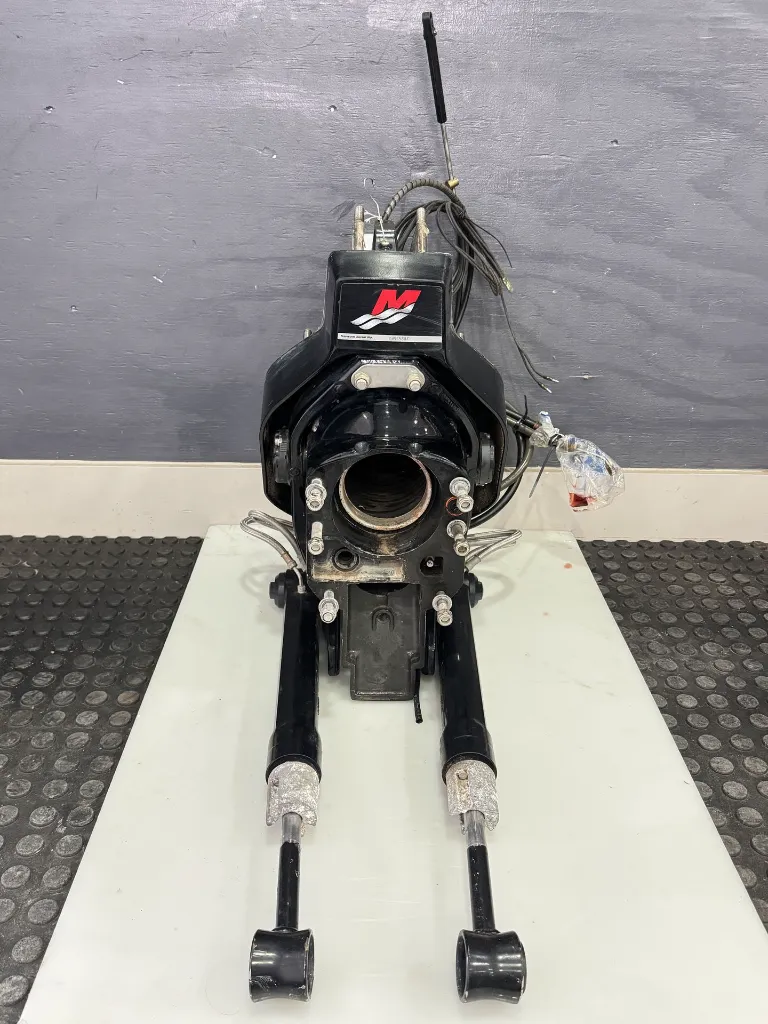

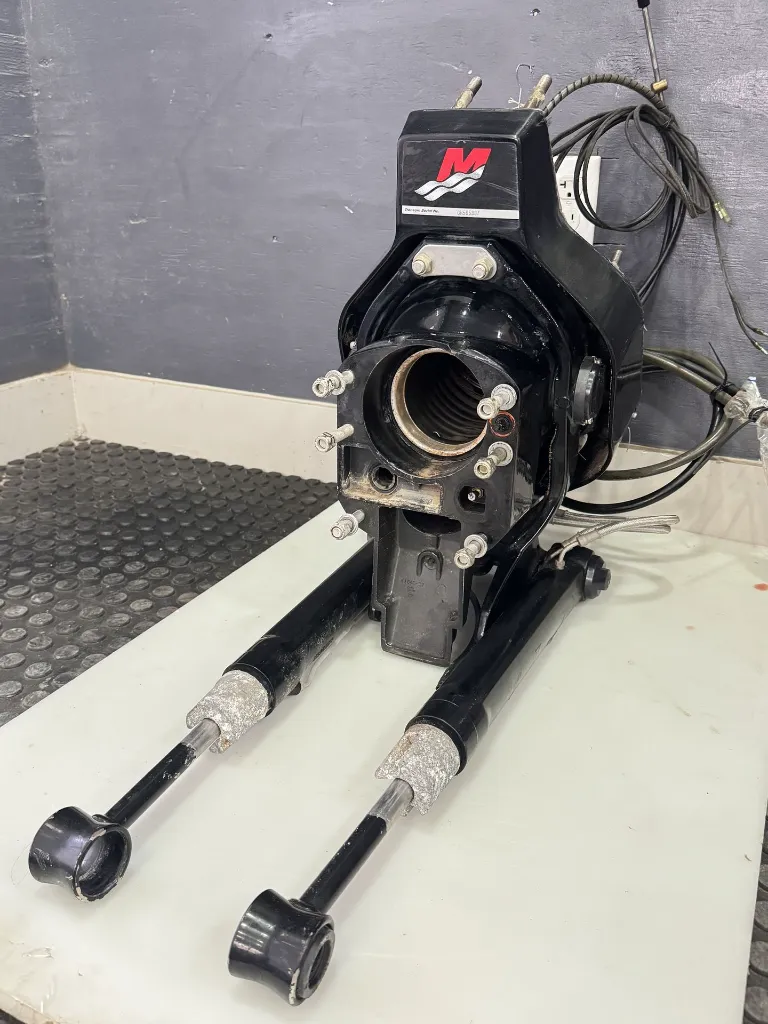

Genuine OEM Mercury MerCruiser Bravo Series complete transom assembly removed from a Bravo-powered sterndrive application. This assembly includes the gimbal housing, gimbal ring, steering components, bell housing, inner transom plate, hydraulic trim cylinders, hydraulic lines, shift cable, and associated hardware exactly as shown.
The steering arm has been inspected and has no detectable play. This is a complete used take-off assembly suitable for replacement, repair, or restoration of compatible MerCruiser Bravo sterndrive systems.
Highlights
- Genuine OEM Mercury MerCruiser
- Bravo Series Transom Assembly
- Complete Assembly as Pictured
- Gimbal Housing & Gimbal Ring
- Bell Housing

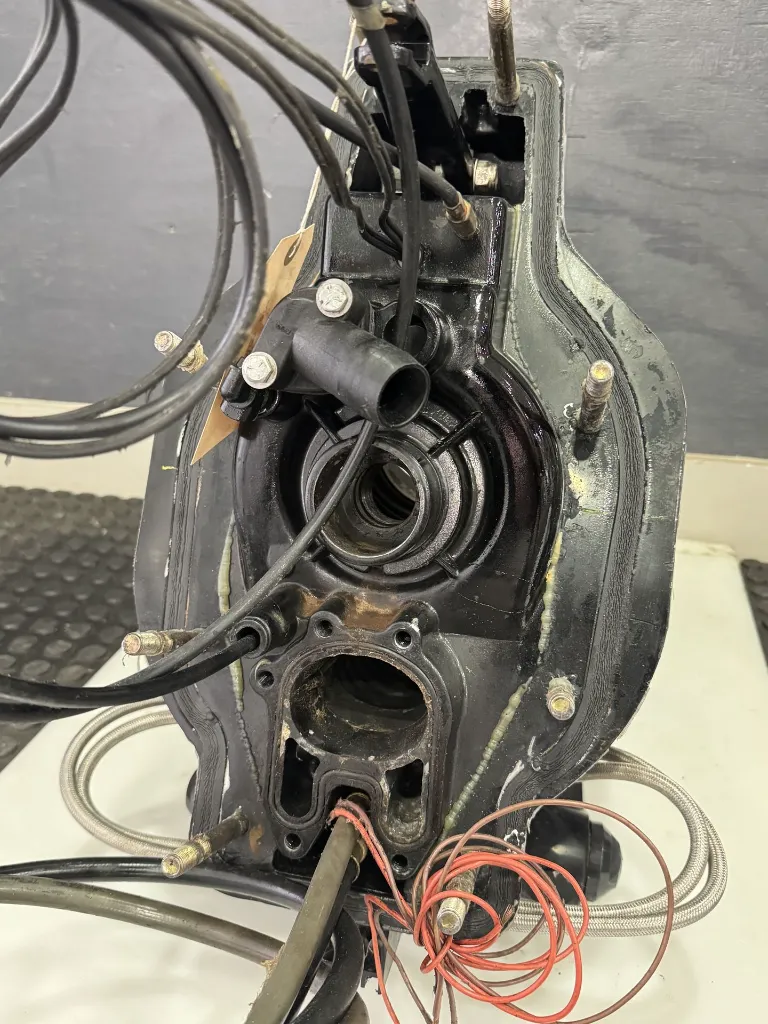

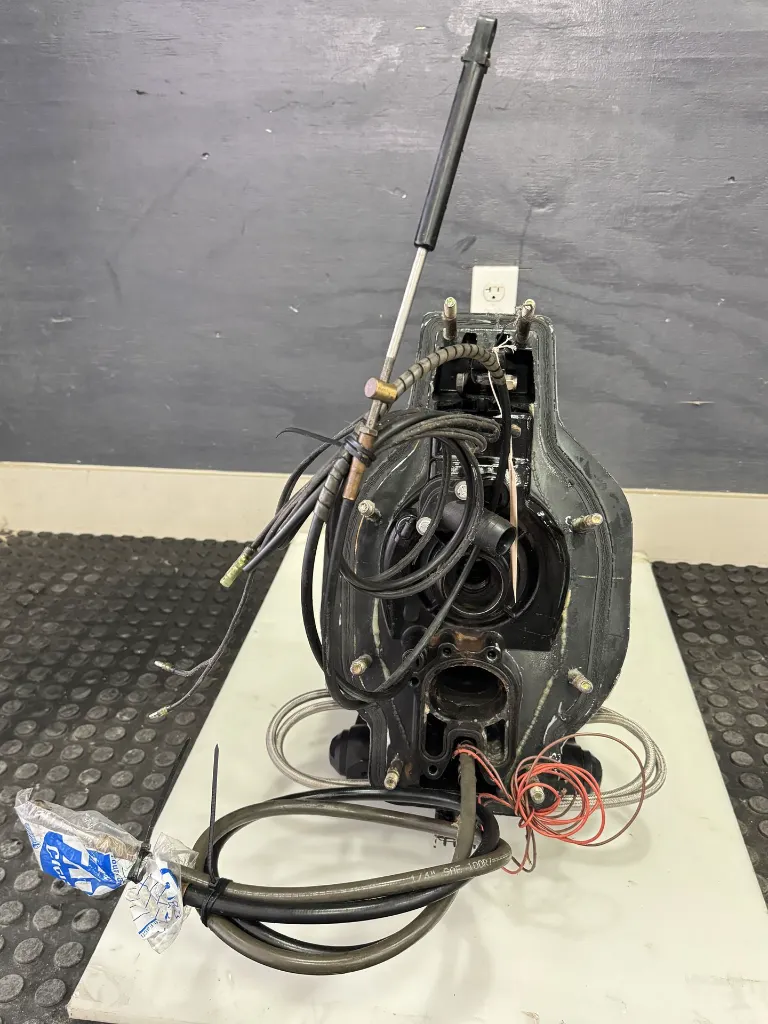

- Inner Transom Plate
- Steering Arm / Steering Components
- Steering Arm Inspected – No Detectable Play

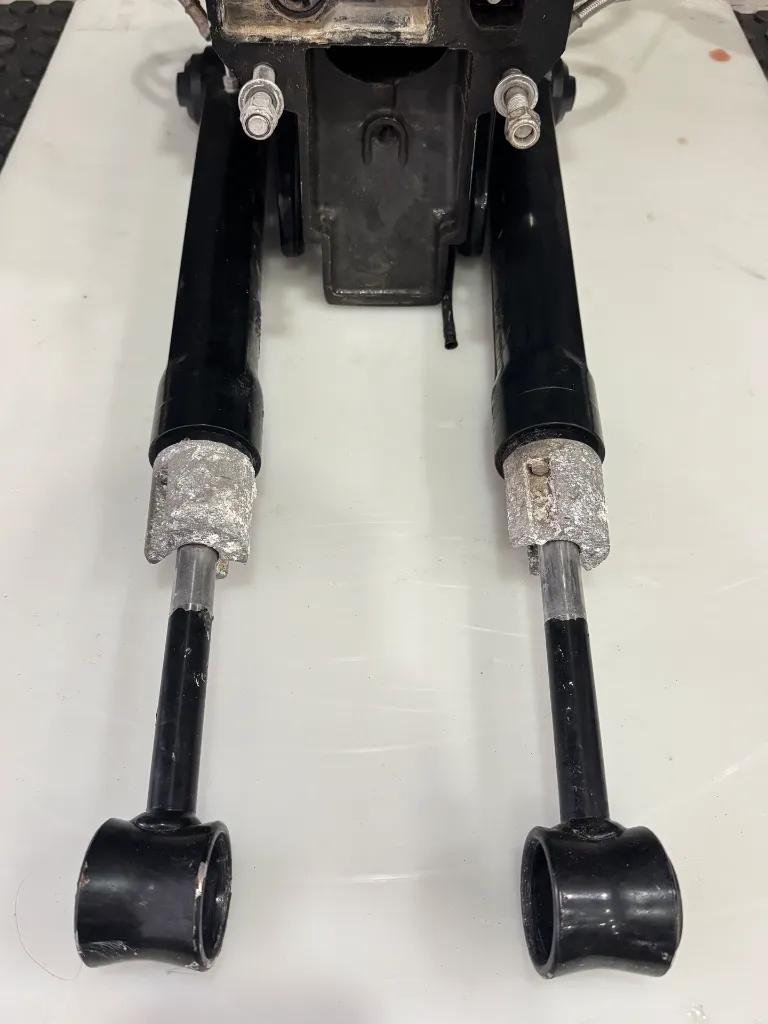

- Dual Hydraulic Trim Rams / Cylinders
- Hydraulic Lines
- Shift Cable
- Wiring & Associated Hardware as Shown
- Sold Exactly as Pictured
Condition
Good used condition with normal cosmetic wear from previous marine use. Shows scratches, scuffs, oxidation, and corrosion on some exposed hardware and fittings. The steering arm has been checked and has no detectable play. No obvious cracks or major structural damage are visible in the housing from the provided photos.
Bellows, seals, bearings, hoses, cables, and other normal wear components should be inspected and serviced or replaced as necessary before installation.
Specifications
Brand: Mercury MerCruiser
Series: Bravo
Type: Complete Sterndrive Transom / Gimbal Assembly
Steering Arm: Inspected – No Detectable Play
Trim System: Dual Hydraulic Trim Cylinders
Condition: Used OEM Take-Off
Outdrive: Not Included
Buyer should verify compatibility using the MerCruiser transom assembly serial number and application before purchase.
Dealer Sale – Sunset Marine TX LLC
SKU: 10661
