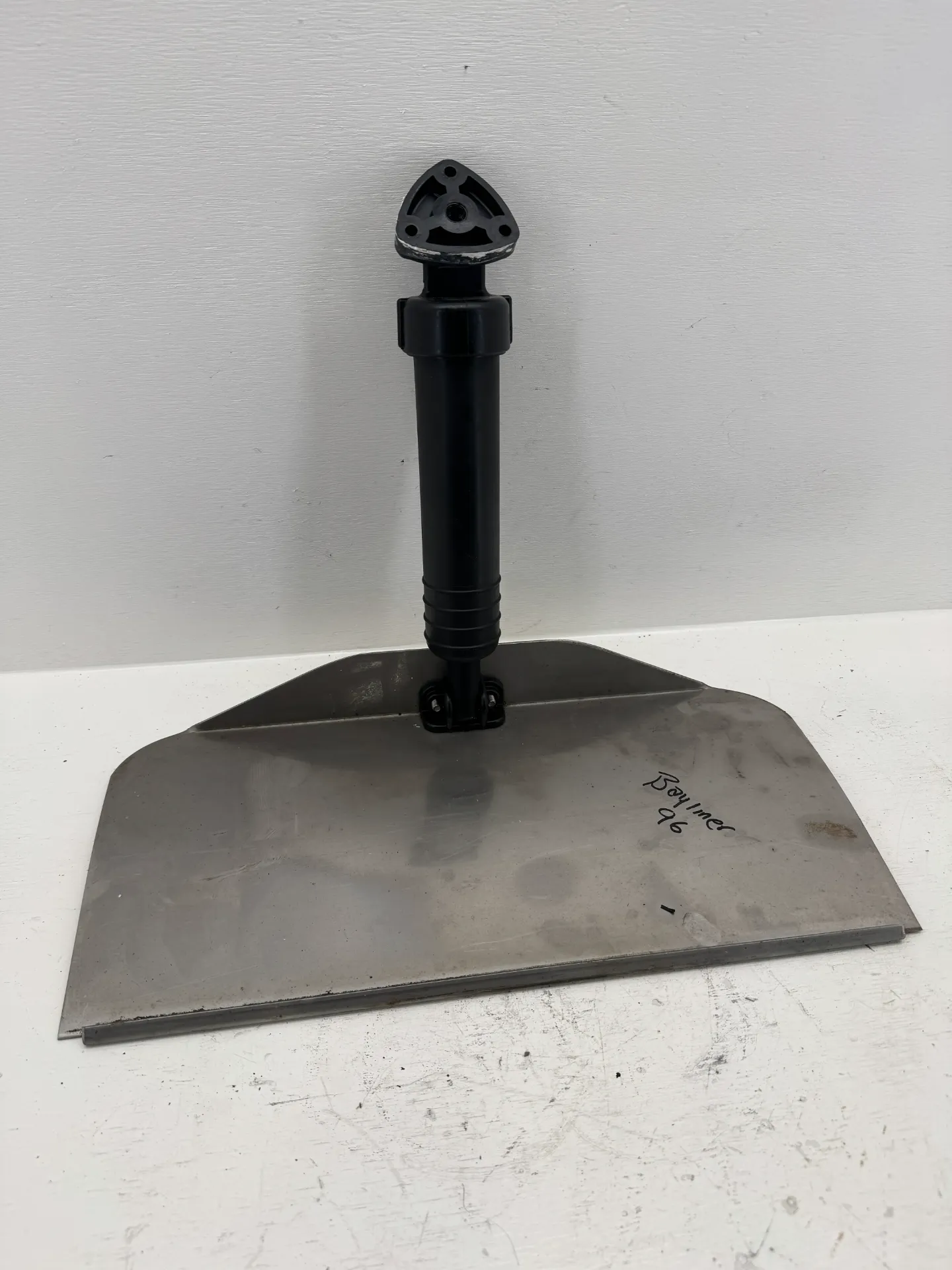

OEM Bayliner Hydraulic Trim Tab Assembly 18" x 9" – Stainless Steel Tab & Actuator

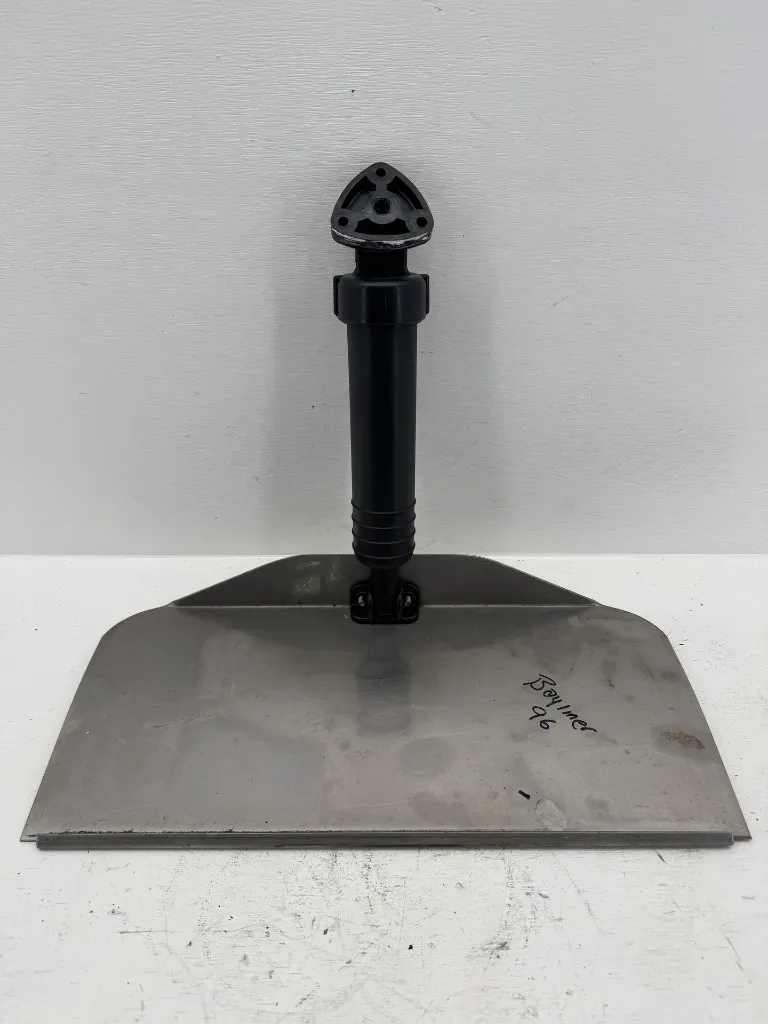

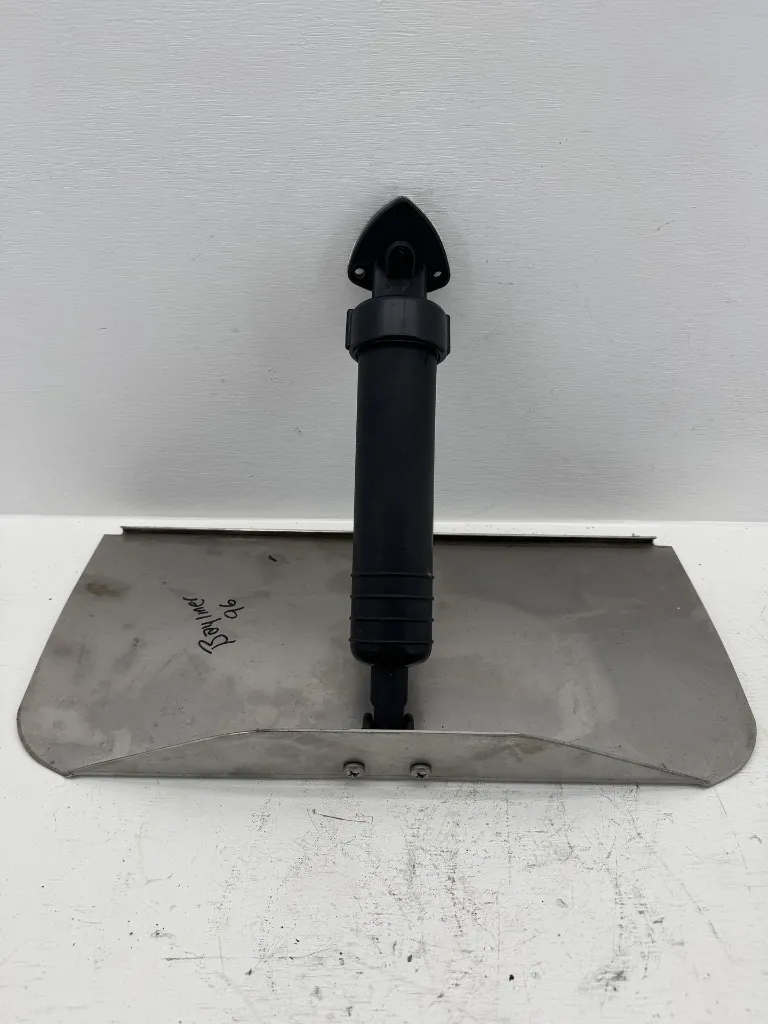

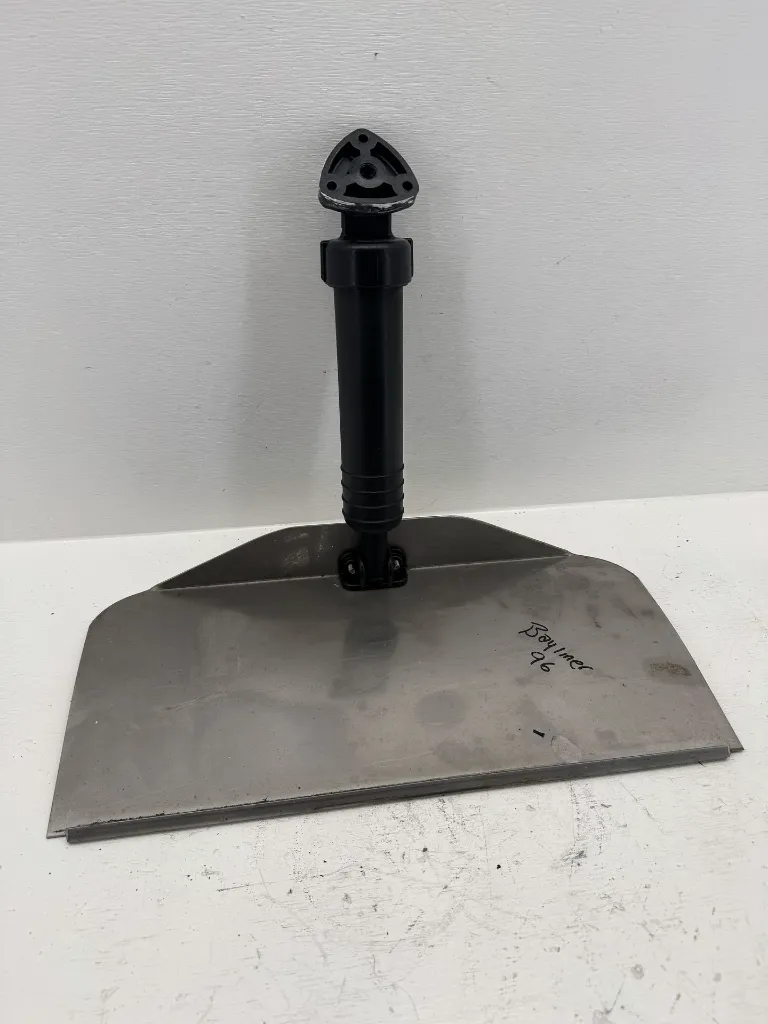

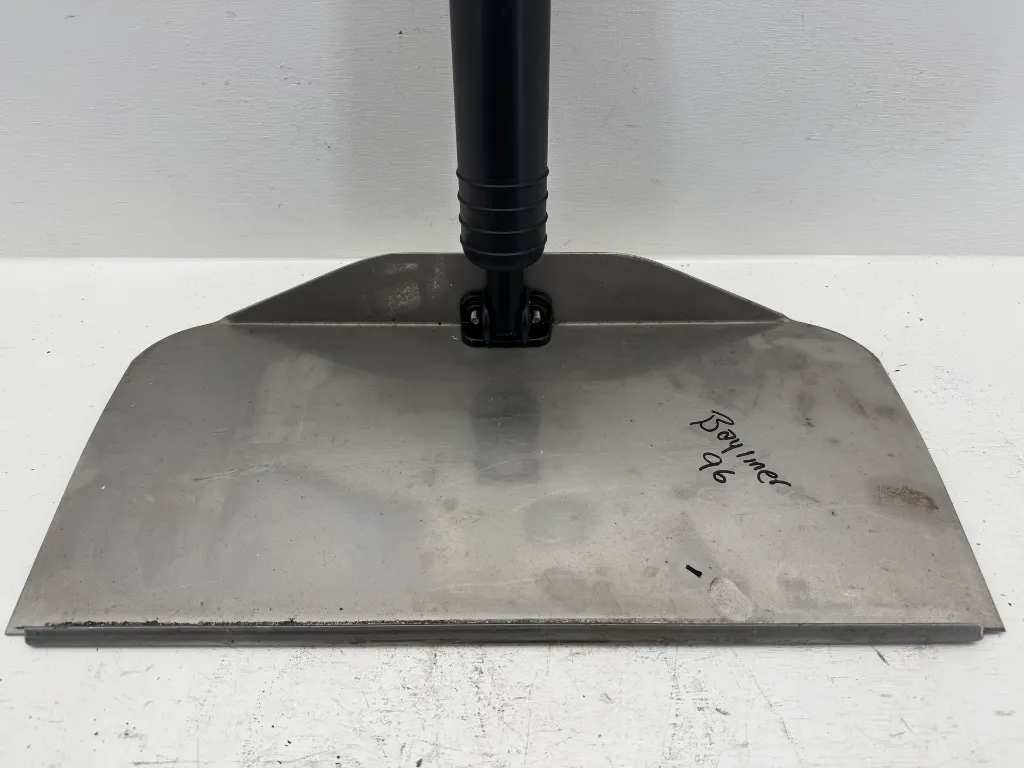

OEM hydraulic trim tab assembly removed from a 1996 Bayliner boat. This assembly includes the stainless steel trim tab plane, hydraulic actuator cylinder, actuator mounting bracket, and attached hardware shown in the photos.
Designed to improve vessel performance, planing efficiency, ride comfort, and lateral stability, this trim tab assembly allows adjustment of hull attitude for varying load and water conditions. Removed from a freshwater boat application and sold exactly as pictured.
Features & Highlights:
• OEM Bayliner Hydraulic Trim Tab Assembly
• Removed From A 1996 Bayliner Boat
• Stainless Steel Trim Tab Plane

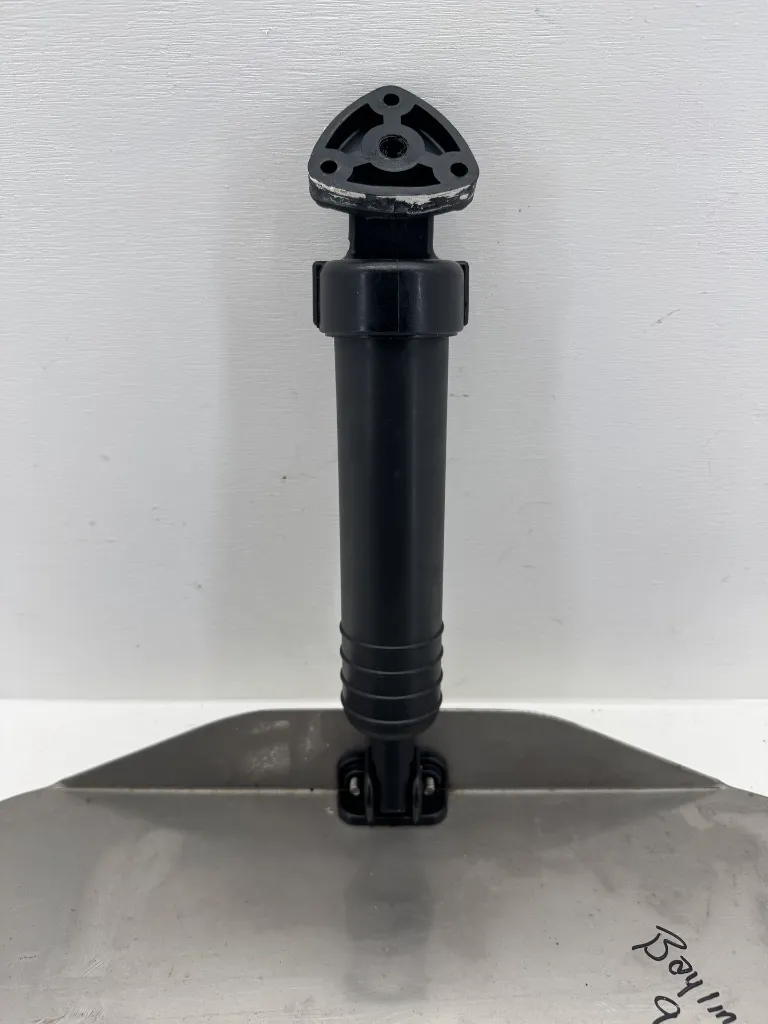

• Hydraulic Actuator Cylinder Included
• Actuator Mounting Bracket Included
• Approximate Trim Tab Size: 18" x 9"
• Improves Planing Performance
• Enhances Ride Comfort & Stability
• Helps Correct List & Hull Attitude
• Corrosion Resistant Stainless Construction
• Marine Hydraulic Trim System Component
• OEM Marine Equipment
• Sold Exactly As Pictured
Condition:
• Used OEM hydraulic trim tab assembly
• Normal cosmetic wear from marine use and storage
• Scratches, scuffs, and handling marks present
• Minor oxidation and water spotting visible

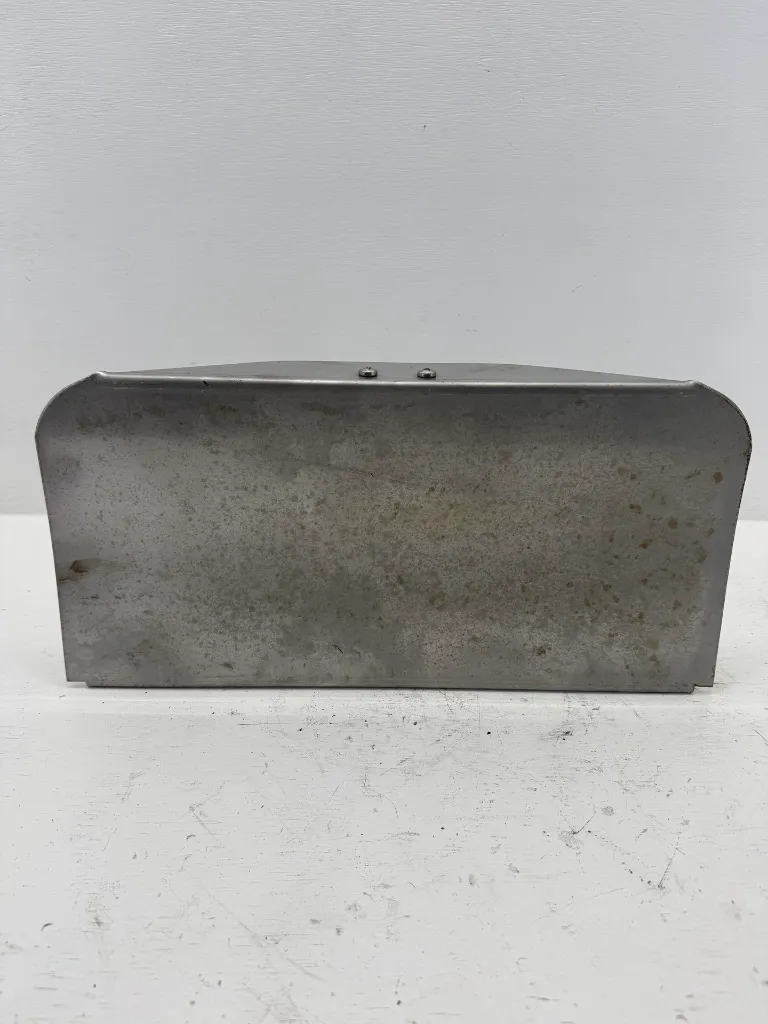

• Light surface corrosion on underside of tab plate
• Stainless steel tab remains structurally intact
• Actuator remains attached to tab assembly
• Mounting surfaces show normal wear from installation/removal
• Hydraulic lines, pump, controls, and additional hardware not included unless shown
• Removed from vessel in working condition
• Untested since removal from boat
• Sold exactly as pictured
Compatibility:
Originally removed from a 1996 Bayliner boat. May fit various Bayliner models and other vessels utilizing similar hydraulic trim tab systems. Buyer is responsible for verifying dimensions, mounting configuration, actuator specifications, and application compatibility prior to purchase.
Package Includes:
• Stainless Steel Trim Tab Plane
• Hydraulic Actuator Cylinder
• Actuator Mounting Bracket
• Attached Hardware Shown In Photos
Approximate Dimensions:

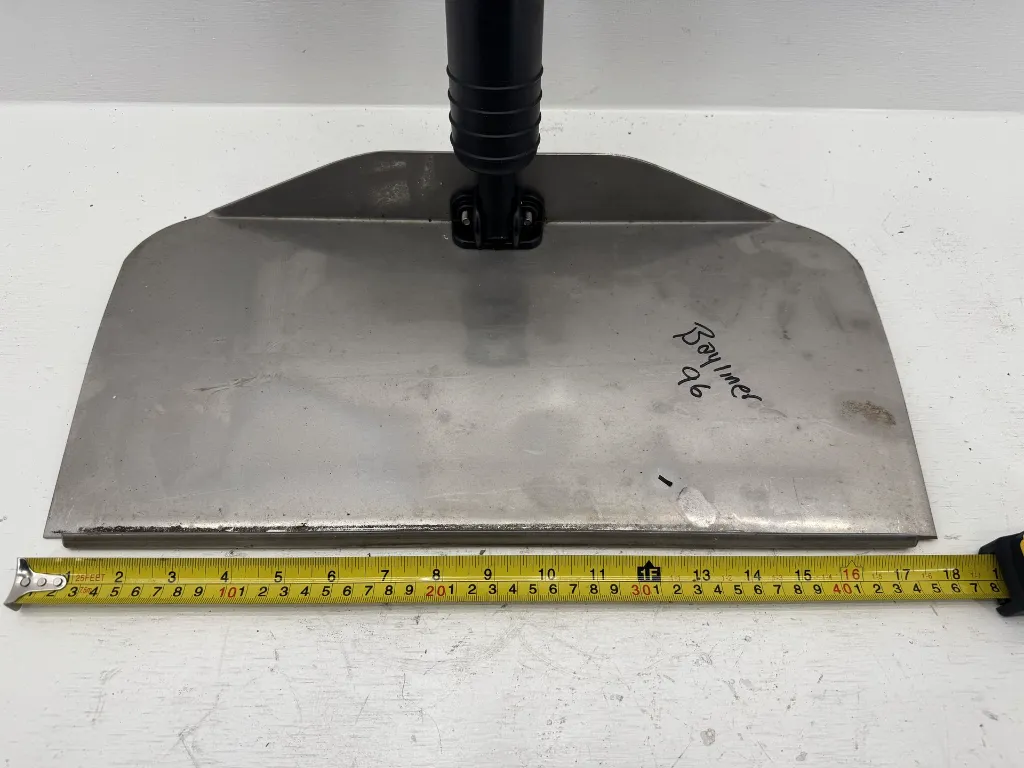

• Trim Tab Width: 18"

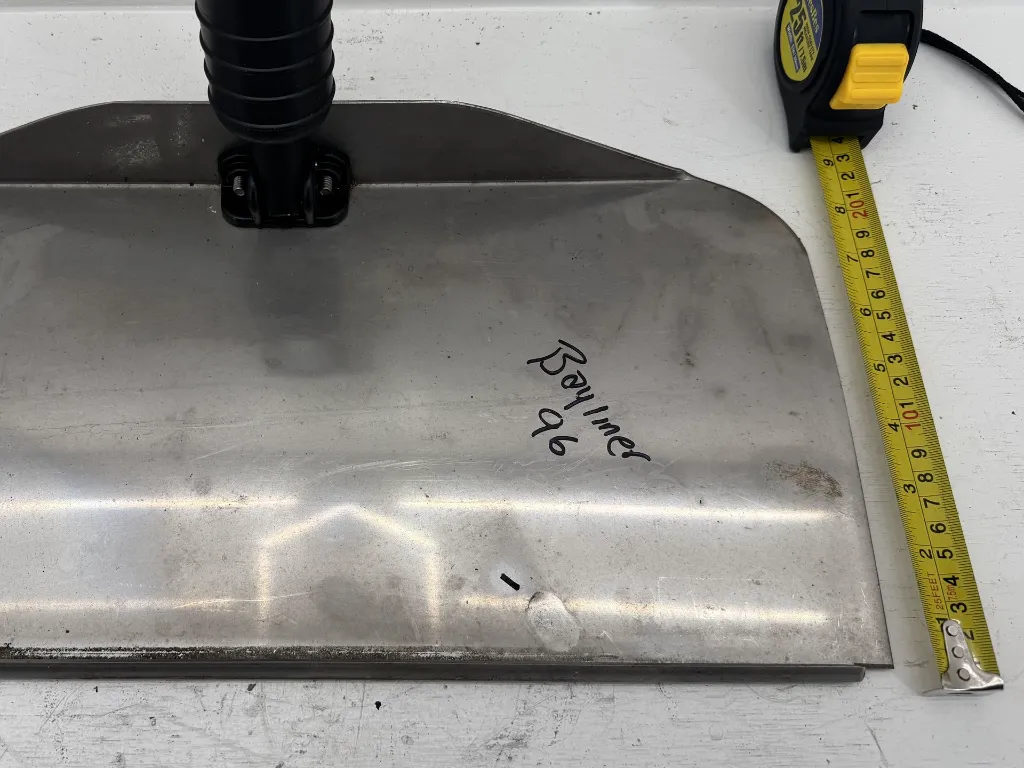

• Trim Tab Depth: 9"
Shipping:
Ships securely packaged to protect the trim tab and actuator assembly during transit. Sold exactly as pictured.
Dealer Sale – Sunset Marine TX LLC
SKU: 10304
