OEM MerCruiser Alpha One Gen I Inner Transom Plate Assembly w/ Steering Shaft & Linkage – 1986 Sea Ray

OEM MerCruiser Alpha One Gen I Inner Transom Plate Assembly w/ Steering Shaft & Linkage – 1986 Sea Ray

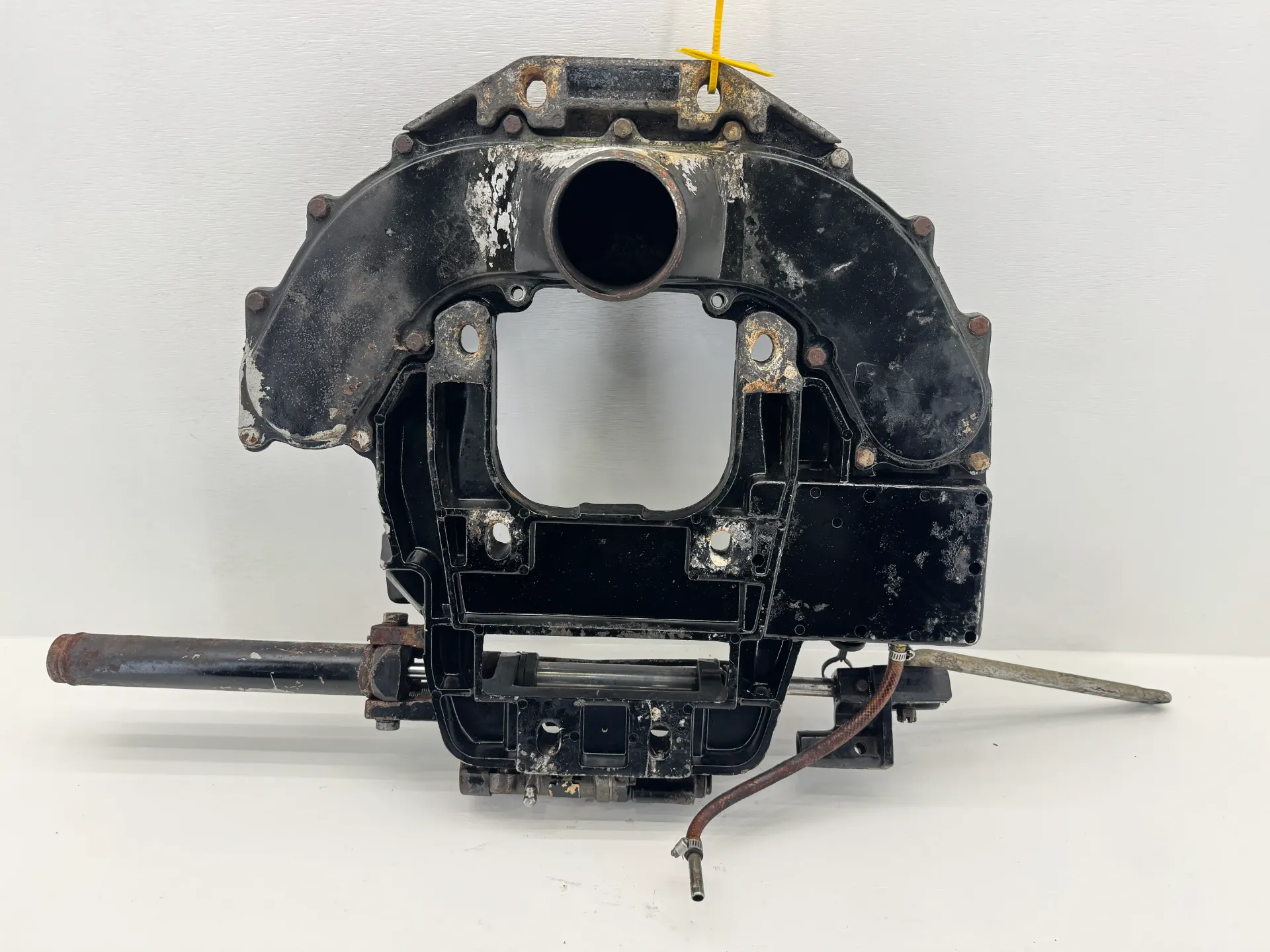

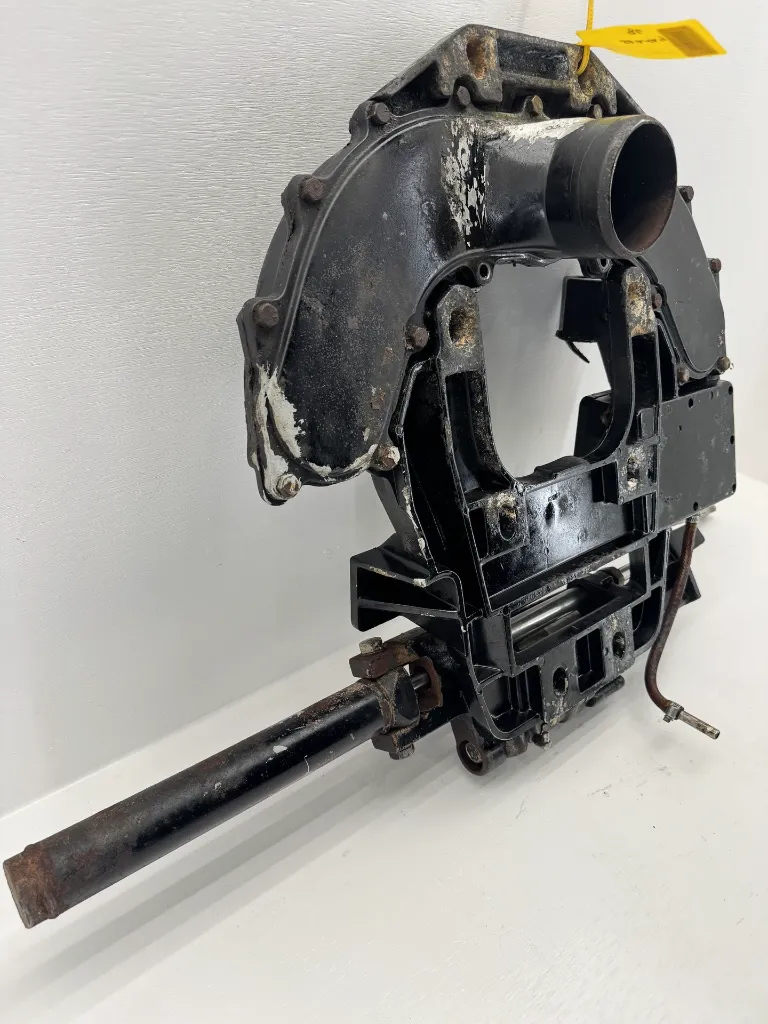

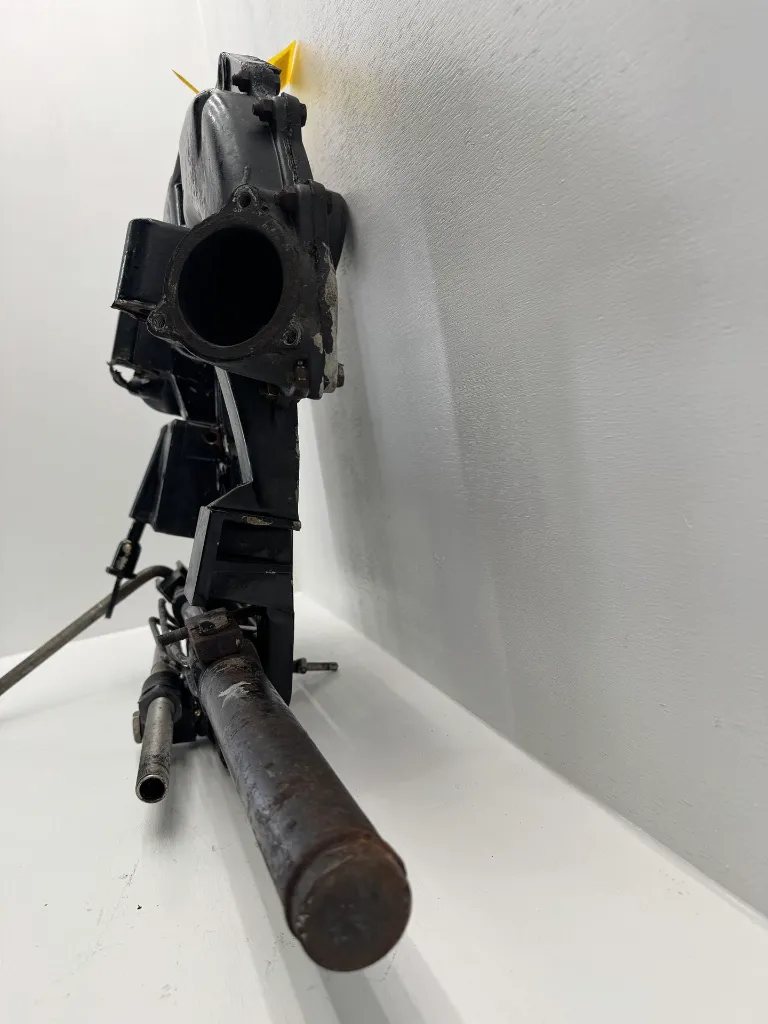

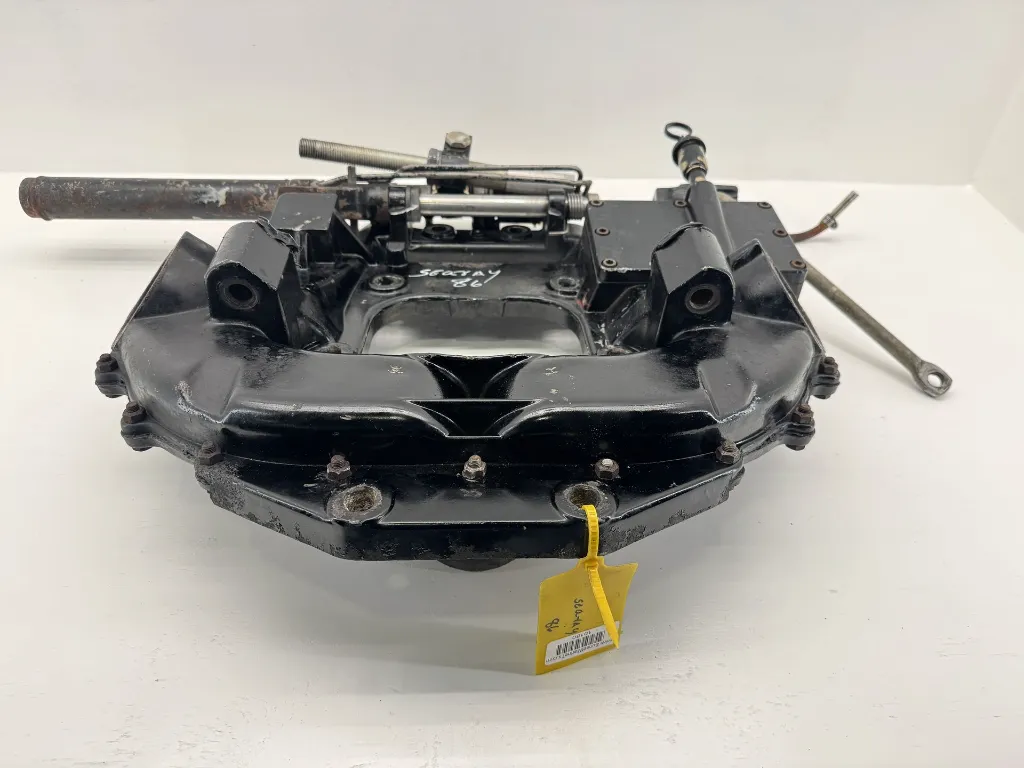

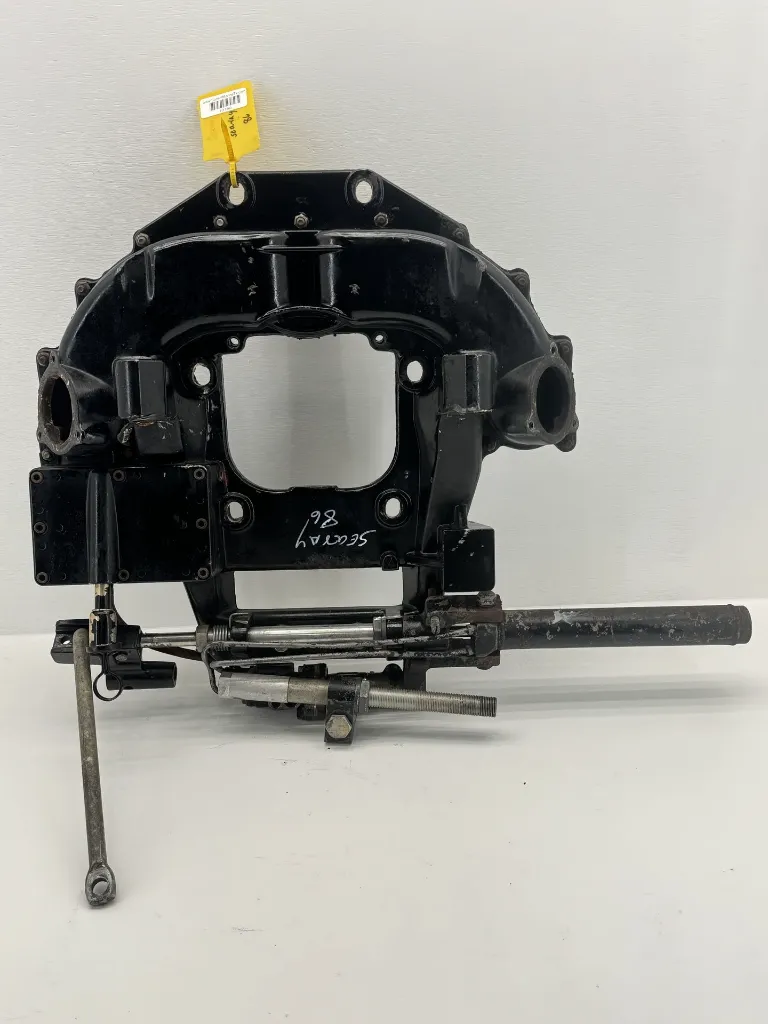

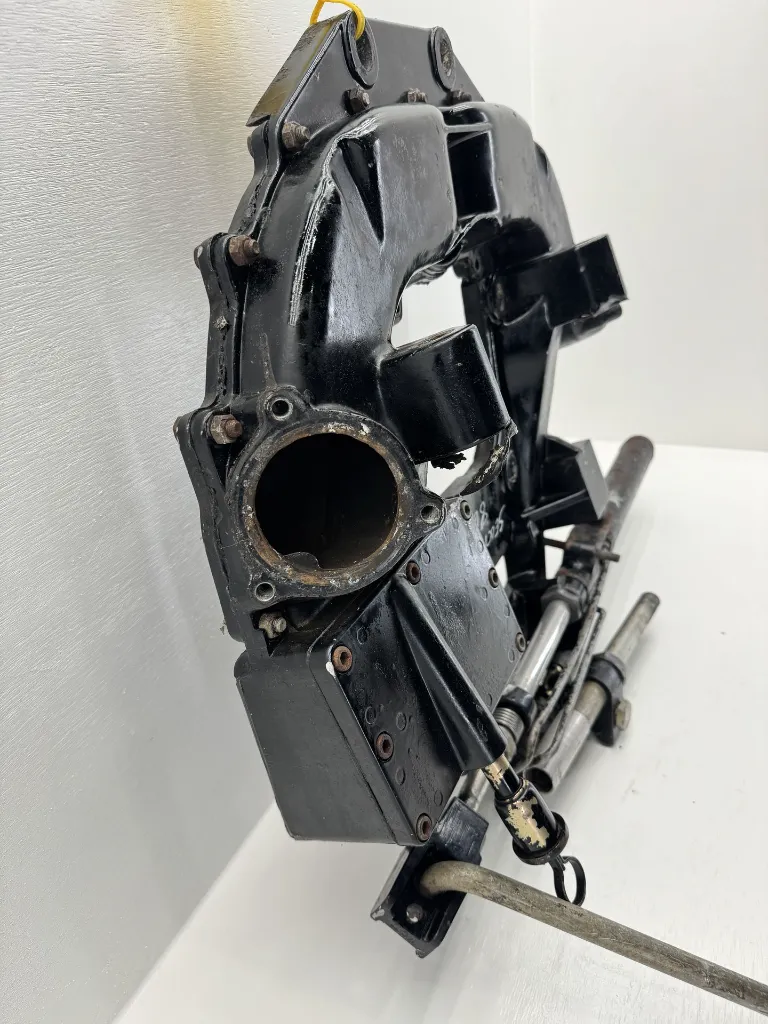

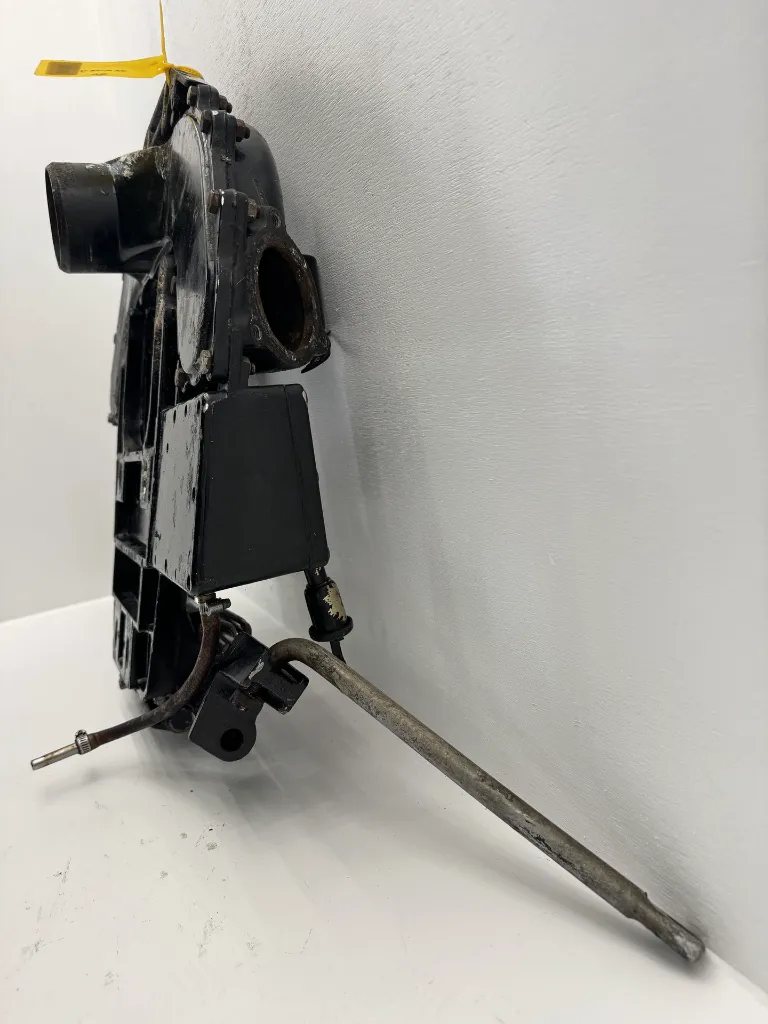

Here we're selling a used OEM MerCruiser Alpha One Gen I inner transom plate assembly removed from a 1986 Sea Ray equipped with a MerCruiser stern drive. Please review all photos carefully for exact condition and included components.

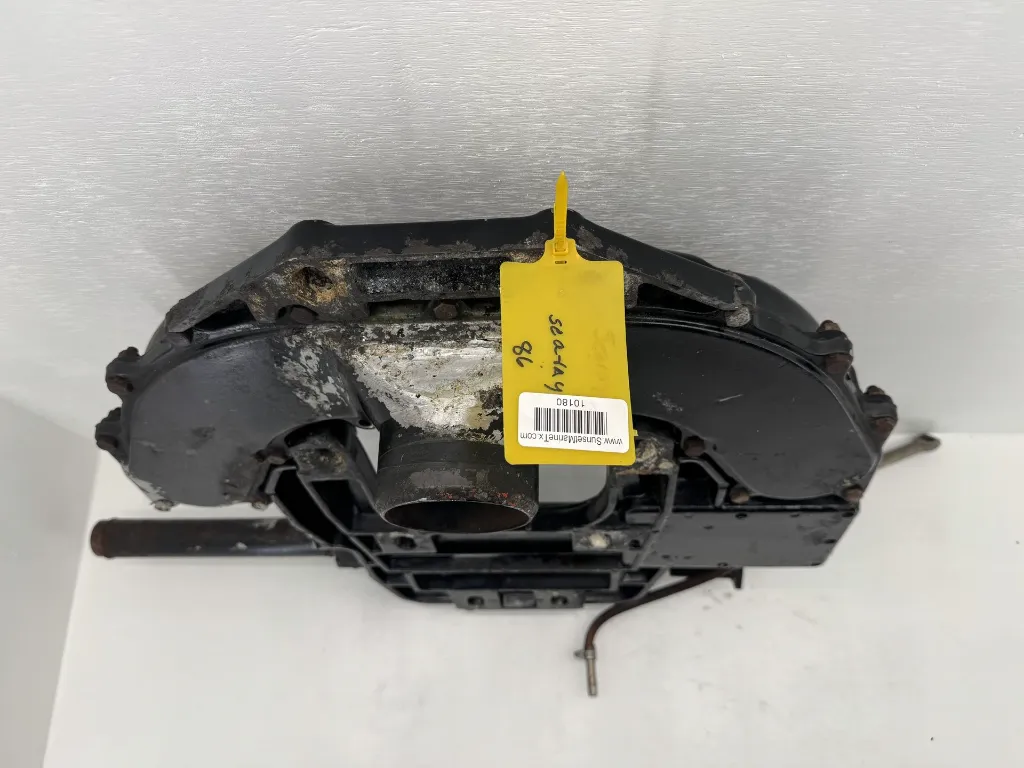

This assembly includes the inner transom plate, steering shaft/pivot tube assembly, steering linkage components, and associated hardware as shown. The inner transom plate serves as the primary mounting structure between the engine and transom assembly while supporting steering and stern drive components.

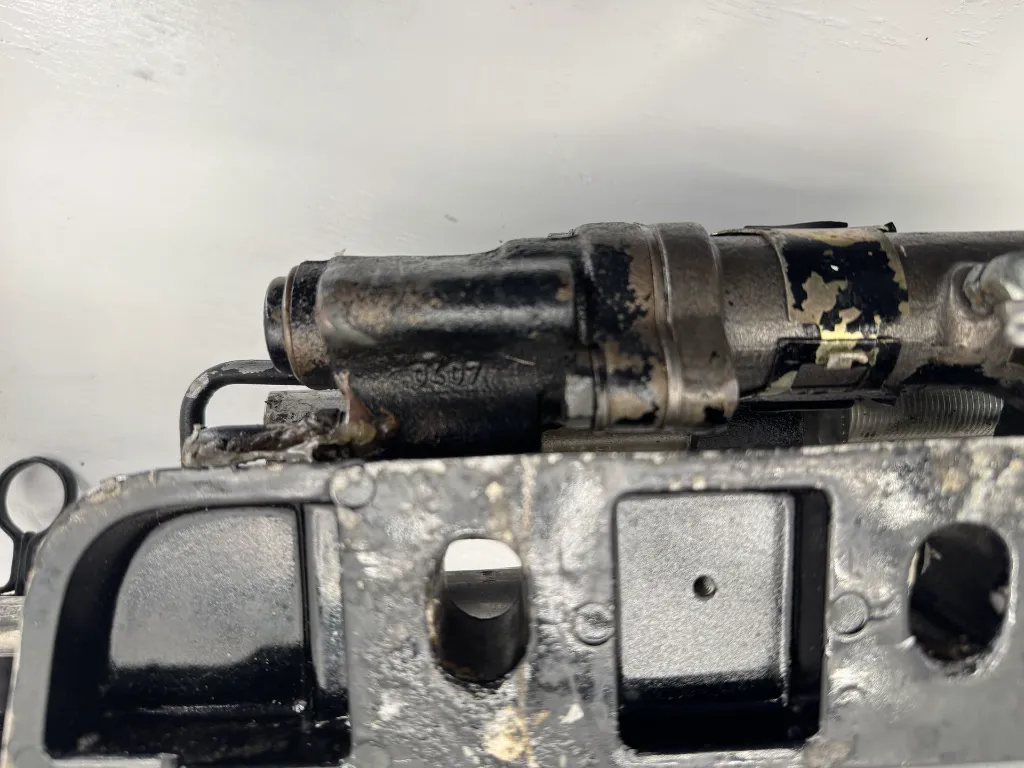

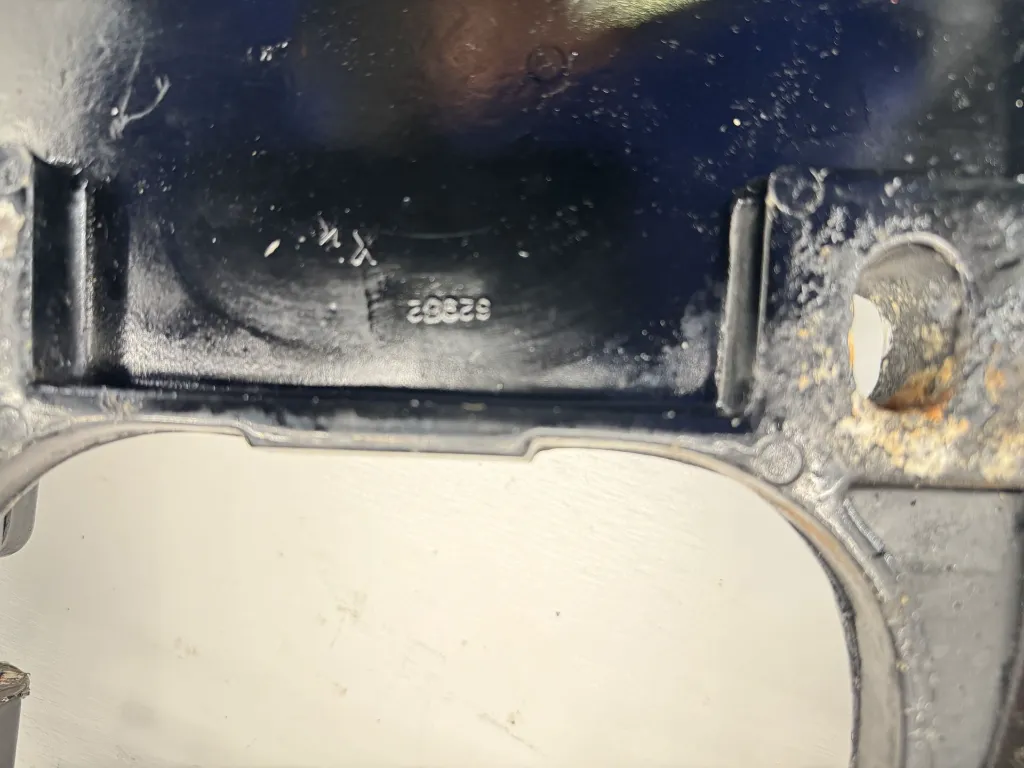

The assembly shows typical cosmetic wear, oxidation, and surface corrosion consistent with age and marine use. The steering shaft and linkage components remain attached, and the casting appears structurally intact with no obvious cracks visible. Rust and corrosion are present on the steering shaft, fasteners, and mounting surfaces as shown in the photos.

A good candidate for replacement, restoration, rebuild, or parts use on compatible MerCruiser Alpha One Gen I applications. Please verify compatibility with your specific model before purchase.

Highlights

  • OEM MerCruiser Alpha One Gen I Inner Transom Plate Assembly
  • Removed from 1986 Sea Ray
  • Steering Shaft / Pivot Tube Included
  • Attached Steering Linkage Components Included
  • Inner Transom Plate Casting Included
  • Original Mounting Hardware Present
  • Suitable for Rebuild or Restoration
  • Good Parts Candidate
  • Sold Exactly As Shown

Condition

  • Used condition
  • Surface corrosion and oxidation present throughout
  • Rust visible on steering shaft and hardware
  • Typical wear consistent with age and marine use
  • Casting appears structurally intact
  • No obvious cracks observed
  • Steering components remain attached
  • Sold exactly as pictured

Specifications

  • Manufacturer: MerCruiser
  • Model: Alpha One Gen I
  • Component: Inner Transom Plate Assembly
  • Includes: Inner Plate, Steering Shaft/Pivot Tube, Linkage Components, Attached Hardware
  • Application: MerCruiser Stern Drive Systems
  • Condition: Used

Dealer Sale – Sunset Marine TX LLC

SKU: 10180

$ 307.97 $ 307.97
